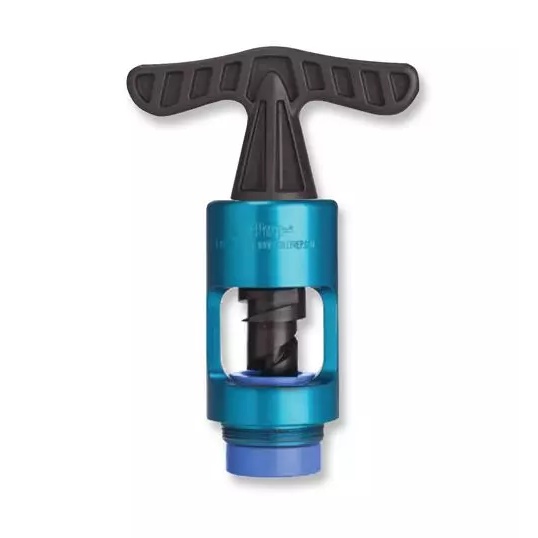

Strip, bevel and core .565 PIII & TX10 hardline in one pass - with a ratchet T-handle.
The Cable Prep RSCT-565-ALU is the SCT stripping/coring tool in a rugged lightweight aluminum body fitted with Cable Prep's RTH ratchet T-handle. It strips back and bevels the outer conductor and cores the dielectric in one smooth operation, removing the aluminum sheath without scoring. The patented one-piece blade leaves a beveled outer conductor edge that eliminates O-ring damage and minimizes water migration.

Ratchet it by hand, or pull the handle and run it on a drill.
The RTH ratchet T-handle turns the tool without regripping in tight spots; remove it to run the tool on a 3/8in variable-speed drill. Threads molded into the body accept the matching Cable Prep JCS jacket stripper, and the orange color-coded guide sleeve keeps the right tool coming out of the bucket.

• Strips back and bevels the outer conductor and cores the dielectric in one operation
• Removes the aluminum sheath without scoring
• Patented one-piece blade: perfectly aligned coring and stripping edges
• High-alloy tool steel blade, heat treated to full hardness
• Beveled outer conductor edge eliminates O-ring damage and minimizes water migration
• Cable Prep RTH ratchet T-handle; removes for 3/8in variable-speed drill operation
• Threaded body accepts the matching Cable Prep JCS jacket stripper
• Rugged aluminum body

• Model: Cable Prep RSCT-565-ALU
• Cable: .565 PIII & TX10
• Color Code: Orange
• Handle: RTH ratchet T-handle (removable)
• Body: Aluminum
• Weight: 16 oz
• Replacement Blade Kit: SC-565RB
• Jacket Stripper: CPR-JCS-565

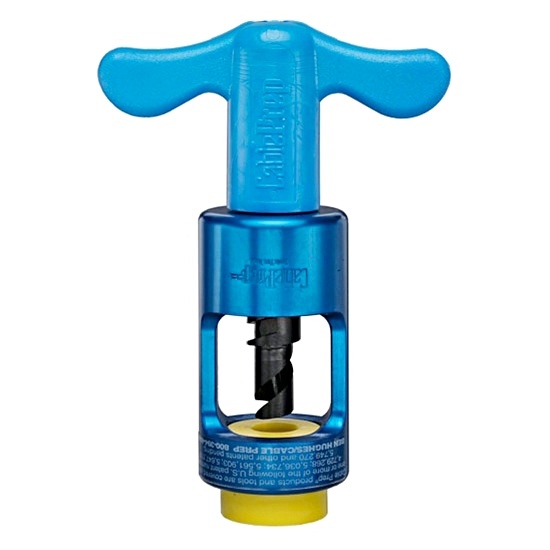

• Standard Handle Version: CPR-SCT-565-ALU

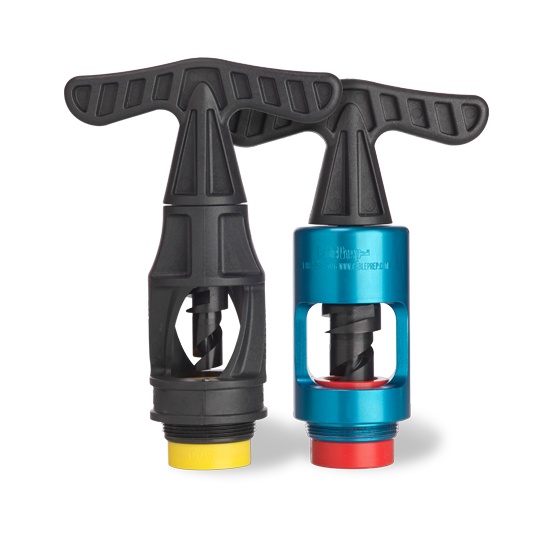

• Plastic Body Version: CPR-RSCT-565
