Cable Prep SCT-860QR SCT-QR Coring & Stripping Tool

Home > Categories > Cable Prep & Termination > Coring Tools > 860 Coring Tools >

Cable Prep SCT-QR Coring & Stripping Tool - 860QR

TTS PRICE: $186.99

STATUS: ON ORDER

Availability:

SHIP ESTIMATE 5-7 DAYS

PRODUCT CODE: CPR-SCT-860QR

QUANTITY:

PRODUCT DESCRIPTION

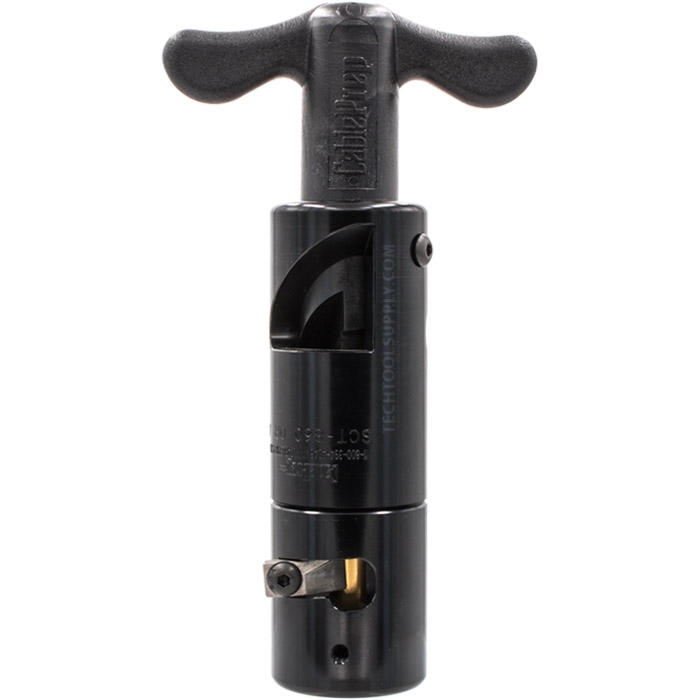

The SCT-860QR stripping/coring tool from Cable Prep strip back and bevel the outer conductor, core the dielectric, and strip back the outer jacket on .860" CommScope Quantum Reach (QR) cables.

Three Functions in One Operation:

SCT-QR tools speed connectorization because they strip back and bevel the outer conductor and core the dielectric in one smooth operation.

Non-clogging Stops:

There is a non-clogging internal stop on every SCT-QR tool that is factory-set to the required dimension for the cable.

Patented Stripping/Coring Blades:

The bevel on the coring edge of the blade self-aligns on the center conductor, which enables an SCT-QR tool to core cable even when it is out-of-round. Made of tool steel that is heat treated to full hardness, the blade bevels the outer conductor, thereby eliminating O-ring damage and minimizing water migration.

Manual or Drill Operation:

SCT tools can be ordered with a standard ergonomic handle or a Cable Prep brand RTH ratchet T-handle. Either handle can be removed for operation with a 3/8- inch variable speed drill.

Attached Jacket Stripping Tool:

Because the jacket on QR cable must be stripped after the coring operation, each SCT-QR stripping/coring tool (labeled SCT-QR-A) comes with a special jacket stripping tool (labeled SCT-QR-B). The two pieces are threaded, so they can be assembled and stored as one unit, which protects the insides of the parts from damage. The jacket stripper is designed with a patented mandrel pin that supports the soft aluminum outer conductor and keeps it from being damaged during the jacket stripping operation.

Specifications:

Cable Type: .860" CommScope Quantum Reach
