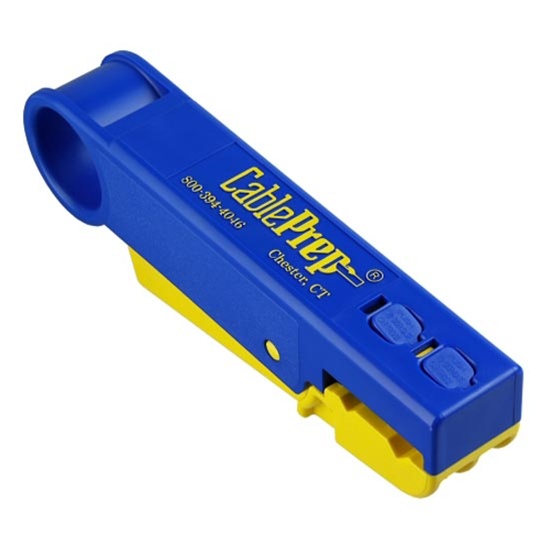

Cable Prep SCPT-6591 Super CPT Coax Stripping Tool - RG-6/59 & RG-7/11 Cartridges, Insertion Sockets
Cable Prep's Super CPT tool is ideal for anyone working with RG6/59 or RG7/11 cables. The tool is designed to remove the cable jacket, cut the braid and dielectric, and expose the center conductor on large and small diameter braided and braid replacement cables, all in one smooth operation. Plus, the insertion feature provides the leverage needed to push connectors onto cables, even bulky quad-shield cables!
The SCPT-6591 ships with a 6/59 and a 7/11 cartridge installed in its two slots, so one tool handles standard (single) through quad shielded RG-6, -59, -7 and -11 drop cables without cartridge changes.
Features:
Insertion feature provides leverage to push the connector onto the cable - no separate insertion tool
Insertion sockets (6/59 and 7/11) support all RG-6, -59, -7, and -11 connectors
A wide body to support large cables
Two slots for different sized cartridges
An ergonomic, efficient design - comfortable to hold and easy to operate with either hand
Factory calibrated strip back dimensions
Quick-release mechanism
Hardened tool-steel blades; each cartridge prepares 2,500 - 5,000 cables, depending on braid coverage
Patented clean-out feature
Color-coded replaceable cartridges snap into place
Includes:
1 x 6/59 cartridge, black (RBC-6590) - slot B
1 x 7/11 cartridge, grey (RBC-1100) - slot A
Specifications:
Type: Coax Cable Stripping Tool (Super CPT)
Cable: Standard (single) through quad shielded RG-6, -59, -7, and -11
Strips 50 and 75-ohm cables
Strips AP/AQ cables
Also strips TXFF and smaller cables with the optional Flexible Feeder cartridge
Braid Exposure: 0.250" (6.4 mm)
Center Conductor Exposure: 0.250" (6.4 mm) minimum
Cartridge Color: Gray/Black
Tool Color: Yellow and Blue
Housing: Plastic
Weight: 7.4 oz (209 g)
Model: SCPT-6591
Available Models (Super CPT):
| Part # | Cable Prep # | Description | Cartridge Color | Weight |
|---|
| CPT-SCPT-6591 | SCPT-6591 (this item) | Super CPT w/659 & 711 cartridges; includes Insertion Tool feature | Gray/Black | 7.4 oz (209 g) |
| SCPT-TXFF | SCPT-TXFF | prepares Flexible Feeder drop cable 1/4" braid exposure (replaces part # CPT-TXFF-250) | Orange | 7.4 oz (209 g) |
Replacement Parts:
| Part # | Cable Prep # | Description |
|---|
| CPR-RBC-6590_1PC | RBC-6590 | 6/59 replacement cartridge, black - one cartridge |
| CPR-RBC-6590_10PK | RBC-6590 | 6/59 replacement cartridge, black - 10 cartridges |
| CPR-RBC-1100 | RBC-1100 | 7/11 replacement cartridge, grey |
Accessories:
| Part # | Cable Prep # | Description |
|---|
| CPR-RBC-6590-TS | RBC-6590TS | TriShield 6 cartridge, white - slot B |
| CPR-RBC-1100-125 | RBC-1100-125 | 7 & 11 cartridge, 0.125" braid exposure, orange - slot A |
| CPR-RBC-59HEC2 | RBC-59HEC2 | CommScope 59 Quad Series Head End cartridge, white - slot B |
| CPR-RBC-TXFF-250 | RBC-TXFF-250 | Times Fiber Flexible Feeder (TXFF) & CommScope F50 cartridge, yellow - slot A |
Super CPT Cable Stripping Tools Brochure
|
|
|
