New!  GMP Duct Rodder - 3/16in x 200ft

GMP Duct Rodder - 3/16in x 200ft


Alternative Views:


TTS PRICE: $440.00

STATUS: ON ORDER


Availability:
SHIP ESTIMATE 7-9 DAYS

PRODUCT CODE: GMP-89281
QUANTITY:

PRODUCT DESCRIPTION

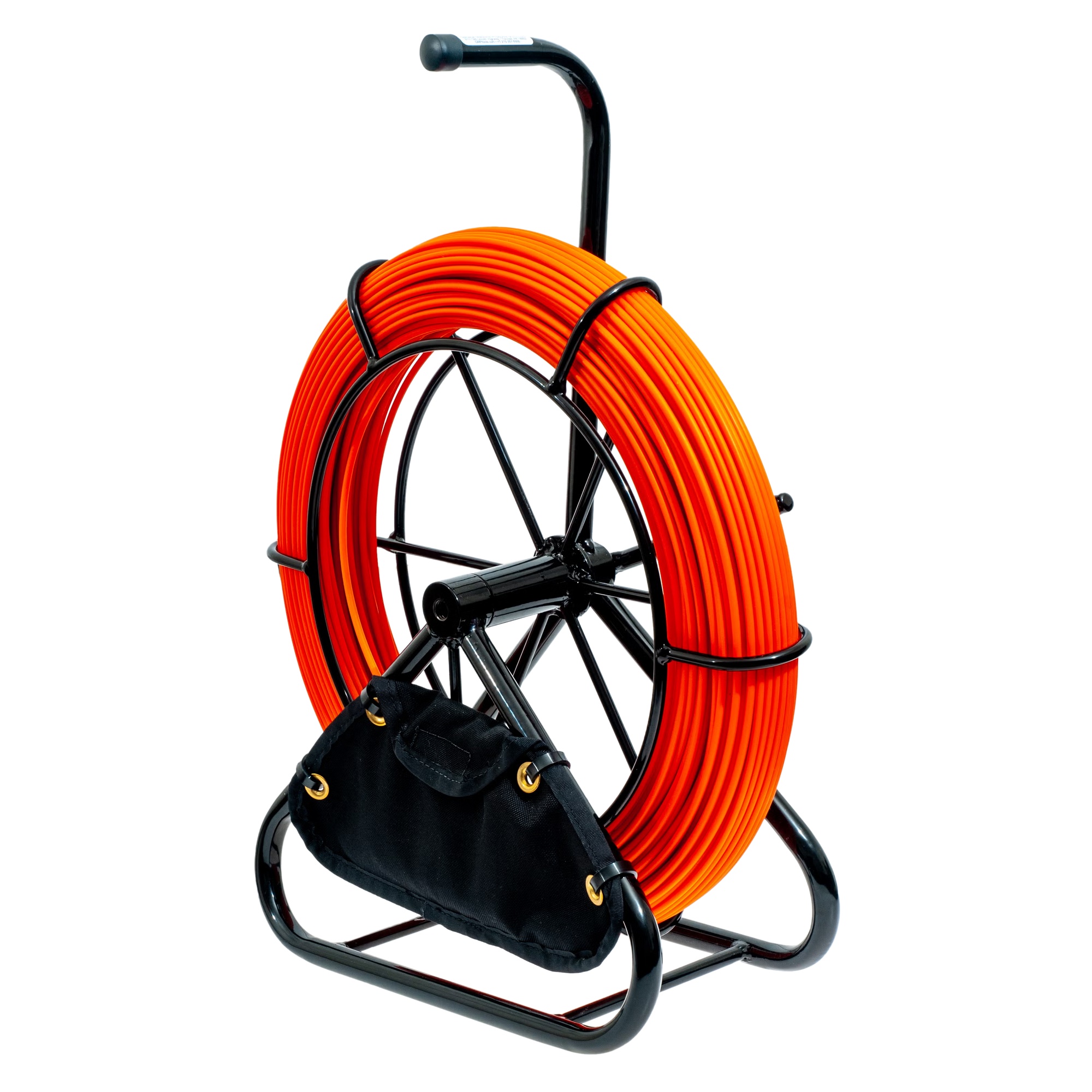

A light 3/16in fiberglass duct rodder with 200ft of rod for drops, hand-holes and inside runs.
The GMP 89281 is built for running conduit inside and out and for home drops from hand-hole boxes to buildings, and it is strong enough to pull duct - rated to 350 lb pull. The non-conductive fiberglass composite rod has a polypropylene outer layer for water, oil and chemical resistance, and the powder-coated tubular steel frame has an integrated brake with the carrier turning on two heavy-duty ball bearings. GMP rates it 10%+ lighter than the leading competition.

Features:
  • 200ft (61 m) of 3/16in (4.5 mm) non-conductive fiberglass composite rod
  • Polypropylene outer layer resists water, oil and chemicals
  • Rated pull 350 lbf; rated tensile 1,400 lbf
  • Powder-coated tubular steel frame with integrated brake
  • Rod carrier runs on 2 heavy-duty ball bearings
  • 10%+ lighter than the leading competition

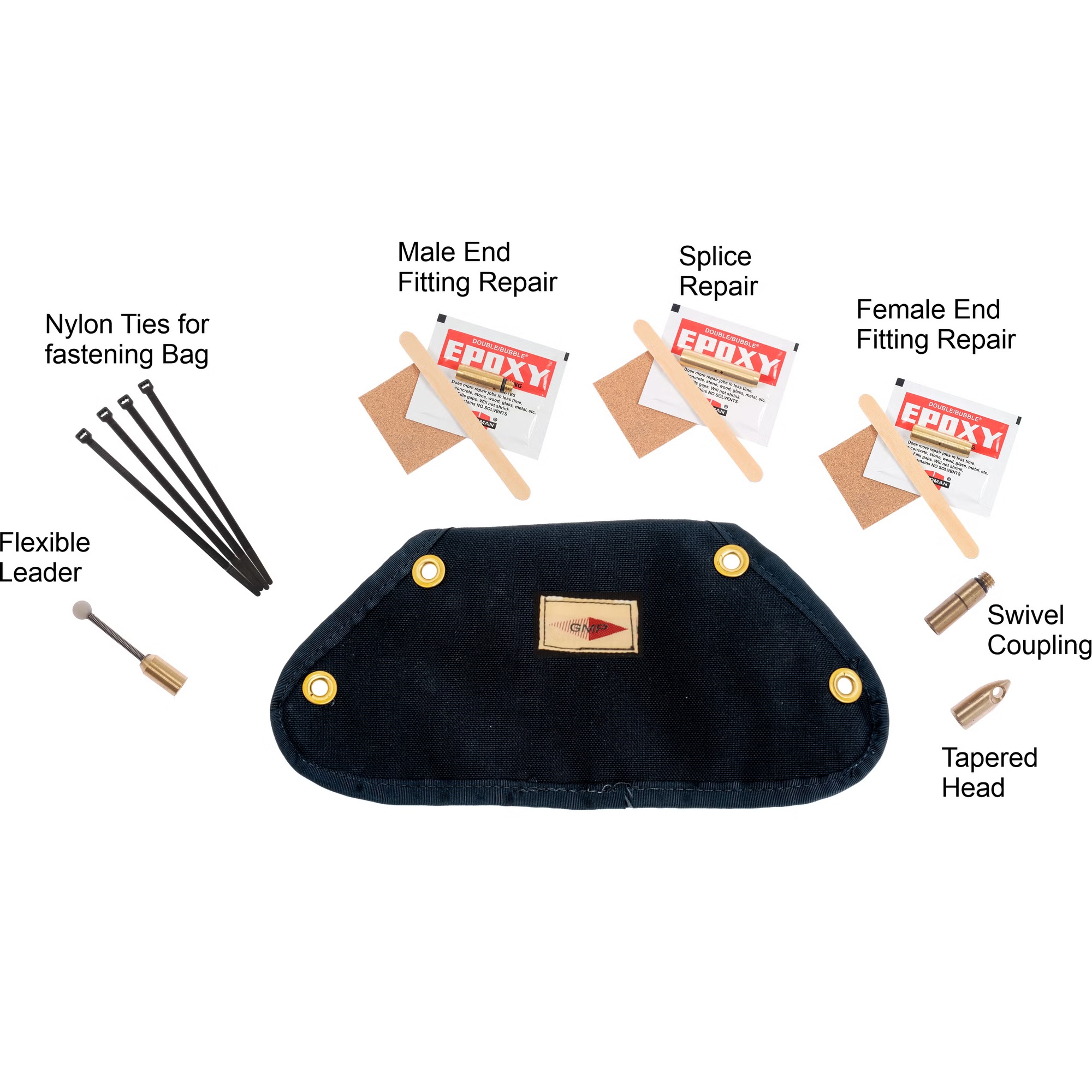

  • Accessory kit included: flexible leader, replacement ends, swivel coupling, tapered head and carrying pouch

Specifications:
  • Model: GMP 89281
  • Rod: 3/16in (4.5 mm) x 200ft (61 m)
  • End Fitting Threads: 1/4-20
  • Rated Tensile Strength: 1,400 lbf (6.2 kN)
  • Rated Pull Strength: 350 lbf (1.6 kN)
  • Minimum Bend Diameter: 5.3in (135 mm)
  • Carrier: 16.25in dia. cassette; 16.25 x 8 x 21.13in
  • Repair Parts: 89346 male fitting, 89347 splice, 89348 female fitting; 89344 flexible leader, 89345 swivel coupling, 89349 tapered head
  • Weight: 12 lb

Available Lengths:
Part #Rod LengthWeight
GMP-89280150ft (45.7 m)11.3 lb
GMP-89281200ft (61 m) (this item)12 lb
GMP-89282250ft (76.2 m)12.8 lb
GMP-89283300ft (91.4 m)14.3 lb
