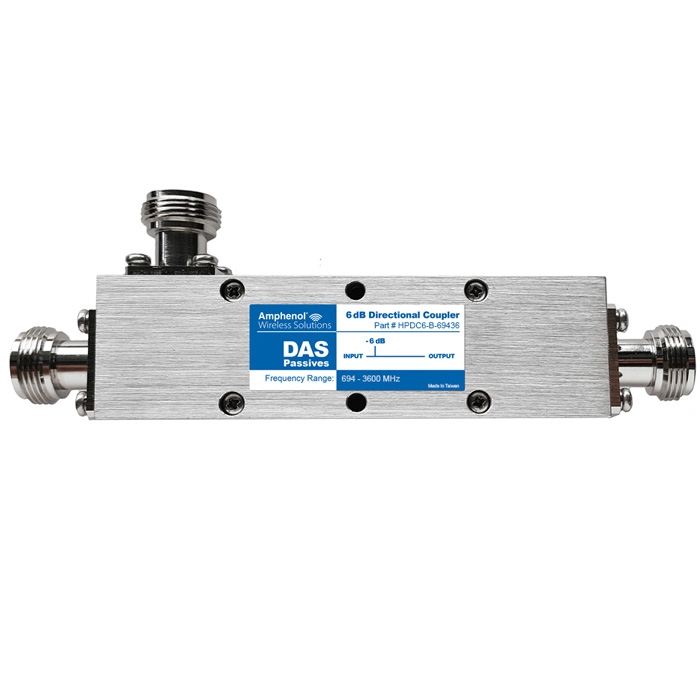

Amphenol 694-3600 MHz 4.3-10 Directional Coupler - 6dB

Amphenol 694-3600 MHz 4.3-10 Directional Coupler - 6dB


TTS PRICE: $208.99

STATUS: ON ORDER

Free Shipping

Availability:
SHIP ESTIMATE 4-6 DAYS

PRODUCT CODE: HOL-HPDC6-B-69436
QUANTITY:

PRODUCT DESCRIPTION


AWS DAS Directional Couplers deliver ultra-wide operational bandwidth and high directivity. Used in many distributed antenna systems, these direction couplers can be used for power monitoring, isolation of signal sources, signal sampling and as antenna feeds.

The couplers are performance-optimized for carrier signals in the 694 - 3600 MHz band.

Amphenol's DAS Directional Couplers offer excellent signal performance, mechanical reliability, and meet IP 67 standards for environmental durability in outdoor installations.

Features:
  • 694 - 3600 MHz Band
  • High Outport Port-to-Coupled Port Directivity
  • Low Insertion Loss
  • Rated to 200 Watts
  • High Reliability
  • RoHS Compliant

    • Specifications:
  • Coupling Nominal: 6dB
  • Frequency Bands 694-2500 MHz: ±0.75dB
  • Frequency Bands 2500-3600 MHz: ±0.9dB
  • Coupled Loss: 1.26dB
  • Dissipative Loss: <0.30dB
  • VSWR: 1.20:1 max., 694-2500 MHz; 1.25:1 max., 2500-3300 MHz; 1:40:1 max., 330-3600MHz
  • PIM (Passive Intermodulation): -161 dBc typical (2 tones at +43 dBm)
  • Power Rating: 200W avg., 1.5 kW Peak *
  • Directivity: 20 dB min., 694-2500 MHz, 18 dB min., 2500-3300 MHz; 16 dB min., 3300-3600 MHz
  • Impedance: 50Ω nominal
  • Environment: IP67
  • Temperature Range: 0°C to +50°C, below 0°C coupling is maintained but directivity degrades
  • Connectors Body/Finish: Brass/Trimetal
  • Housing Finish: Passivated Aluminum
  • Weight, Nom: 24 oz (670 g) - 26 oz (750 g)
  • Mounting: Bracket supplied

    • * Power may be limited by feeding into poorly matched loads overloading the termination.
