Jonard Tools Mid-Span Slitter - 2.9mm - 6.8mm

Jonard Tools Mid-Span Slitter - 2.9mm - 6.8mm


Alternative Views:


TTS PRICE: $85.95

STATUS: ON ORDER

Free Shipping

Availability:
SHIP ESTIMATE 1-2 DAYS

PRODUCT CODE: JON-MS-26
QUANTITY:

PRODUCT DESCRIPTION


Jonard MS-26 Mid Span Slitter - 2.9 mm to 6.8 mm Jackets & Loose Buffer Tubes

The larger Mid-Span Slitter from Jonard is the big brother to the Jonard MS-6. The MS-26 Mid Span Slitter is designed to open fiber jackets and loose buffer tubes to provide easy fiber access. The MS-26 is designed to work on cables or buffer tubes ranging in size from 2.9mm to 6.8mm in diameter. Its sleek ergonomic design allows you to open a jacket or buffer tube without damaging the fiber, and it features a replaceable blade set.

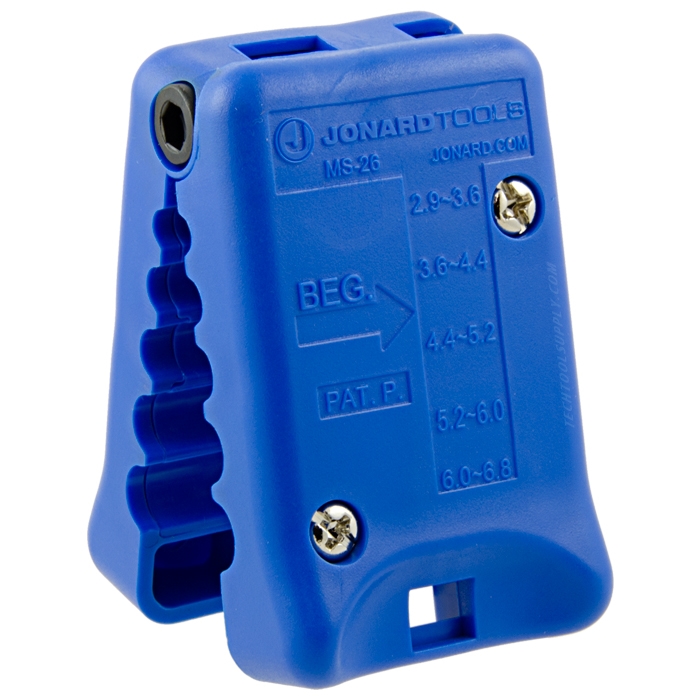

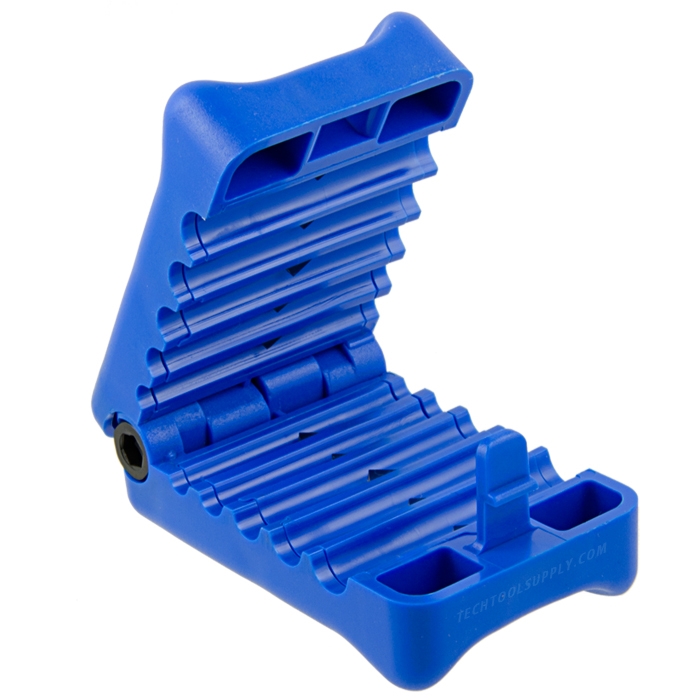

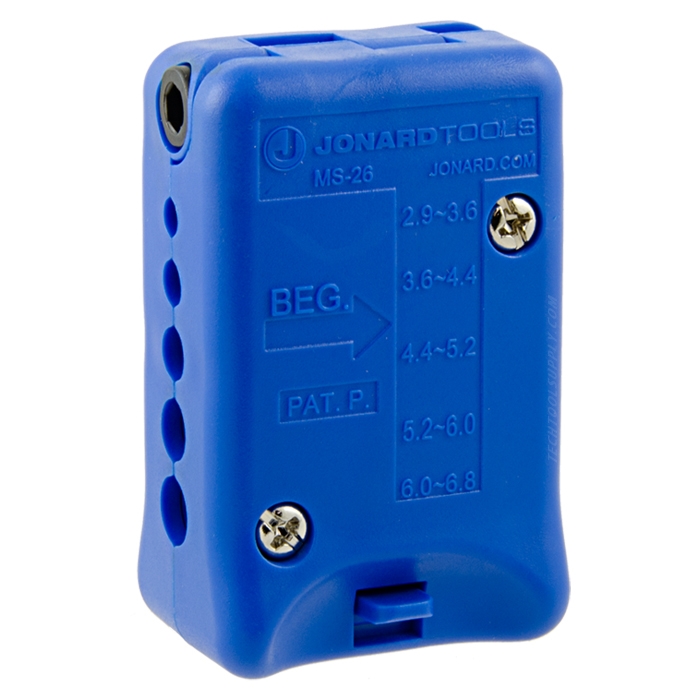

The MS-26 was designed with 5 precision grooves which are conveniently identified on the top of the tool. The grooves will handle an assortment of cable sizes.

Need a smaller size? Jonard's MS-6 is made for cable diameter 1.2 - 3.3 mm: JON-MS-6

Note: Works with OFS EZ-Bend® 3.0 and 4.8mm drop cables.

Features:
  • Five precision slitting grooves from 2.9 mm to 6.8 mm
  • Opens outer jackets and loose buffer tubes without damaging the fiber inside
  • Indicator line on top shows the blade position
  • Weighs under 2.5 oz, with a tethering hole for work in tight spaces
  • Replaceable blade set
  • Patented design
  • Lifetime warranty

  • Groove Sizes:
  • 2.9 - 3.6 mm
  • 3.6 - 4.4 mm
  • 4.4 - 5.2 mm
  • 5.2 - 6.0 mm
  • 6.0 - 6.8 mm

  • Specifications:
  • Cut Type: Slit
  • Number of Slitting Grooves: 5
  • Cable Type: Outer Jackets, Loose Buffer Tubes
  • Cable Diameter: 2.9mm - 6.8mm
  • Dimensions: 2.64" x 1.52" x 1.02" (6.71 x 3.86 x 2.59 cm)
  • Weight: 0.1 lb (47 g)
  • Model: MS-26

  • Available Sizes:
    Part #Jonard #DescriptionCut TypeCable Diameter
    JON-MS-6MS-6Mid Span Slitter (1.2 mm-3.3 mm)Slit1.2 mm-3.3 mm
    JON-MS-26MS-26 (this item)Mid Span Slitter (2.9 mm-6.8 mm)Slit2.9 mm-6.8 mm
    JON-MS-306MS-306Mid Span Slit & Ring Tool (1.2 mm-3.3 mm)Slit, Ring1.2 mm-3.3 mm
    JON-MS-316MS-316Mid Span Slit & Ring Tool (2.9 mm-6.8 mm)Slit, Ring2.9 mm-6.8 mm
    JON-MS-326MS-326Mid Span Slit & Ring Tool (5 mm-10 mm)Slit, Ring5 mm-10 mm
    JON-MS-426MS-426Mid Span Slit & Ring Tool (5.8 mm-12 mm)Slit, Ring5.8 mm-12 mm
    JON-MS-526MS-526Mid Span Slit & Ring Tool (9.8 mm-18.2 mm)Slit, Ring9.8 mm-18.2 mm
    JON-MS-600MS-600Mid Span Shaving Tool (1.0 mm-3.3 mm)Shave1.0 mm - 3.3 mm

    Replacement Parts:
    Part #Jonard #Description
    -MSB-2968Replacement blade set for MS-26
    Data Sheet - Mid Span Slit & Ring Tools MS-26 Dual Jacket FTTH Cable
