Jonard FLS-55 MM SM Fiber Optic Light Source

Home > Categories > Fiber Prep & Termination > Power Sources >

Jonard MM SM Fiber Optic Light Source

TTS PRICE: $689.95

STATUS: ON ORDER

Availability:

SHIP ESTIMATE 1-2 DAYS

PRODUCT CODE: JON-FLS-55

QUANTITY:

PRODUCT DESCRIPTION

Jonard FLS-55 Multimode & Singlemode Fiber Optic Light Source - 850/1300/1310/1550 nm

Jonard's FLS-55 is designed to provide 850/1300 nm or 1310/1550 nm wavelengths, making this optical light source the perfect tool for providing a stable light source for multimode or single-mode fiber measurements. The FLS-55 Light Source is designed for optimal use with Jonard's FPM-50A Optical Power Meter for measuring optical loss on both single-mode and multimode fiber cable. Note that the FC-LC adapter may have up to 0.3 dB of signal loss.

Features:

Includes 2 each of FC, SC and ST adapters plus an FC-LC adapter to directly connect to PC/UPC fiber connectors (FC-LC adapter for singlemode only)

Highly stable output power and wavelengths - holds within 0.05 dB over 15 minutes

Five modulation outputs (CW, 270 Hz, 330 Hz, 1 kHz, 2 kHz) at 850/1300 nm (multimode) and 1310/1550 nm (single mode) wavelengths

Typical -7 dBm output, adjustable from -5 to -12 dB

Automatic wavelength identification with the FPM-50A, FPM-55 and FPM-70 power meters

Flush button design makes it easy to use and prevents dust from entering the unit

Shatter-resistant sleeve protects the light source from falls or other damage

Backlit 2.4" LCD screen provides a clear display, ideal for dark places

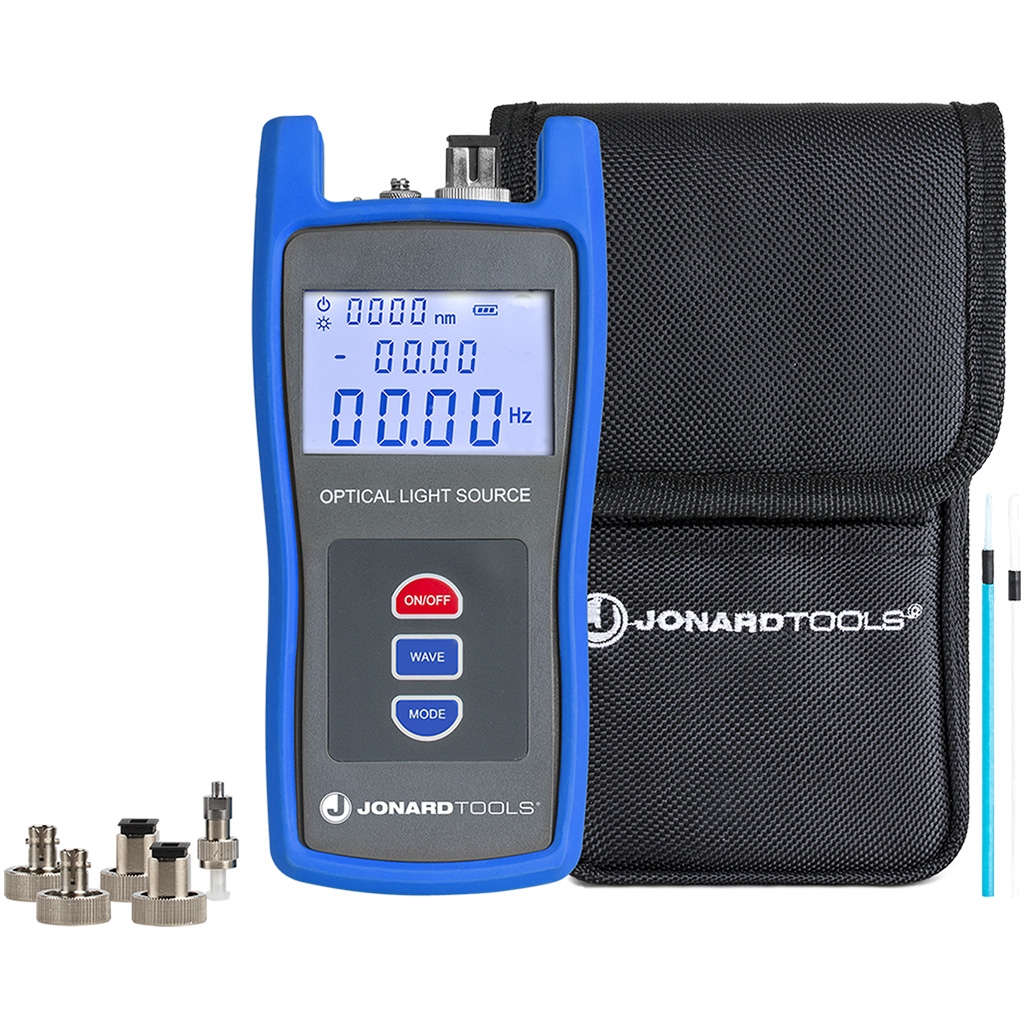

Includes:

1 x FLS-55 Fiber Optic Light Source (MM/SM)

2 x FC Adapter (UPC)

2 x SC Adapter (UPC)

2 x ST Adapter (UPC)

1 x FC-LC Adapter (UPC, singlemode only)

2 x Cleaning Swabs

3 x AA Batteries (required for operation)

1 x Carrying Case

Specifications:

Type: Fiber Optic Light Source

Operational Wavelengths: 850, 1300, 1310 & 1550 nm

Emitter Type: LD

Typical Output Power: -7dBm

Output Power Adjustable Range: -5 to -12 dB

Spectral Width: ≤ 5 nm

Output Stability: ≤ 0.05dB/15mins; ±0.1dB/8hours

Modulation Frequencies: CW, 270Hz, 330Hz, 1KHz, or 2KHz

Optical Connector: FC/SC/ST/LC (UPC)

Display: 2.4" LCD

Power Supply: Alkaline Battery (3 AA 1.5V batteries)

Battery Operating Time: ≥ 25 hr

Auto-Off: 10 min

Operating Temperature: -10 to +60 °C

Storage Temperature: -25 to +70 °C

Dimensions: 7" x 3-3/16" x 1-1/4" (17.78 cm x 8.10 cm x 3.18 cm)

Weight: 0.64 lb (291 g)

Model: FLS-55

Available Models:

Part #	Jonard #	Description	Wavelength (nm)
JON-FLS-50	FLS-50	Optical Light Source with SC/ST/FC/FC-LC Adapters for PC/UPC Connectors	1310/1550 ±20
JON-FLS-55	FLS-55 (this item)	Multimode & Singlemode Fiber Optic Light Source with SC/ST/FC/FC-LC (PC/UPC) Adapters	850, 1300, 1310, 1550

Related Products:

Part #	Jonard #	Description
JON-FLS-50	FLS-50	Singlemode-only light source, 1310/1550 nm
JON-FPM-55	FPM-55	Fiber optic power meter with data storage - automatic wavelength ID
JON-FPM-70	FPM-70	Fiber optic power meter, -70 dBm high sensitivity - automatic wavelength ID

FLS-55 - Multi-mode and Single-mode Fiber Optic Light Source - Data Sheet Light Source Setup Quick Reference Card Power Meter Calibration Steps Jonard Tools FLS-55 Instruction Manual
