Jonard Tools 2-in-1 Slit/Ring Tool - 5.8 - 12mm

Jonard Tools MS-426 2-in-1 Slit/Ring Tool - 5.8-12mm




Alternative Views:


TTS PRICE: $151.99

STATUS:  IN STOCK


Availability:
Normally Ships Same Day

PRODUCT CODE: JON-MS-426
QUANTITY:

PRODUCT DESCRIPTION


Jonard's patented MS-426 Fiber Optic Mid Span Slit and Ring Tool is designed to provide easy access into mini flex tube fiber optic cables and other similarly sized cables.

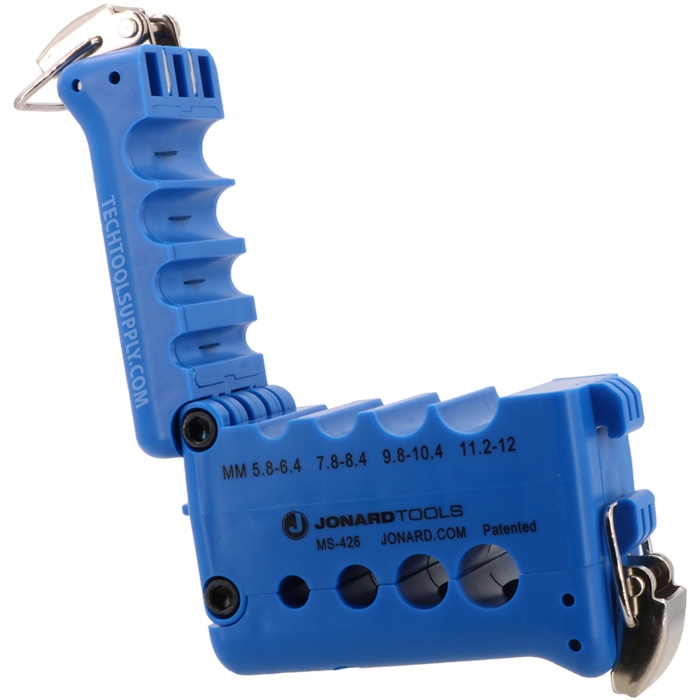

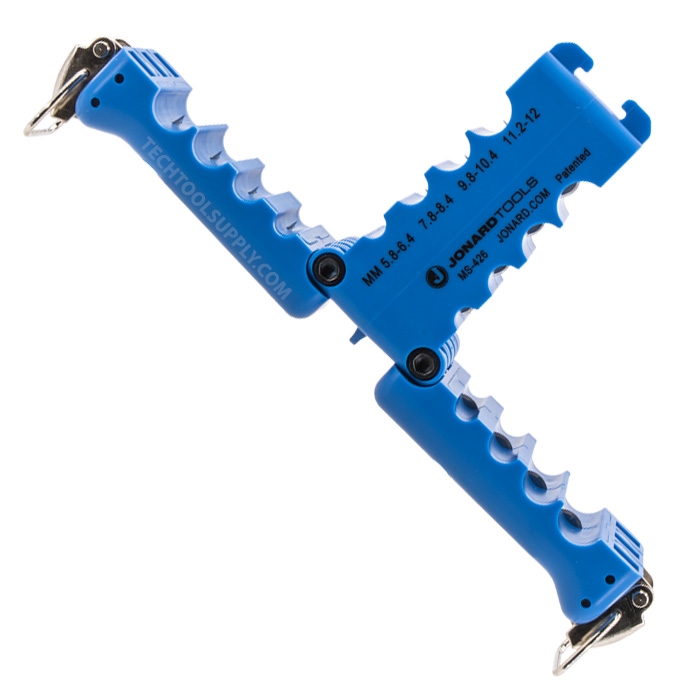

The MS-426 consists of 4 precision slitting grooves and 4 ring grooves ranging in size from 5.8mm to 12mm.

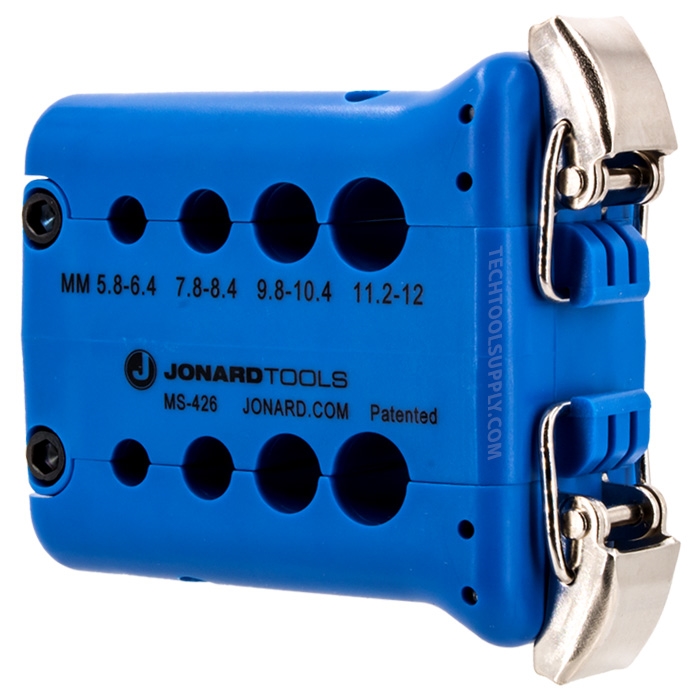

Groove Sizes:
  • 5.8 - 6.4mm
  • 7.8 - 8.4mm
  • 9.8 - 10.4mm
  • 11.2 - 12mm

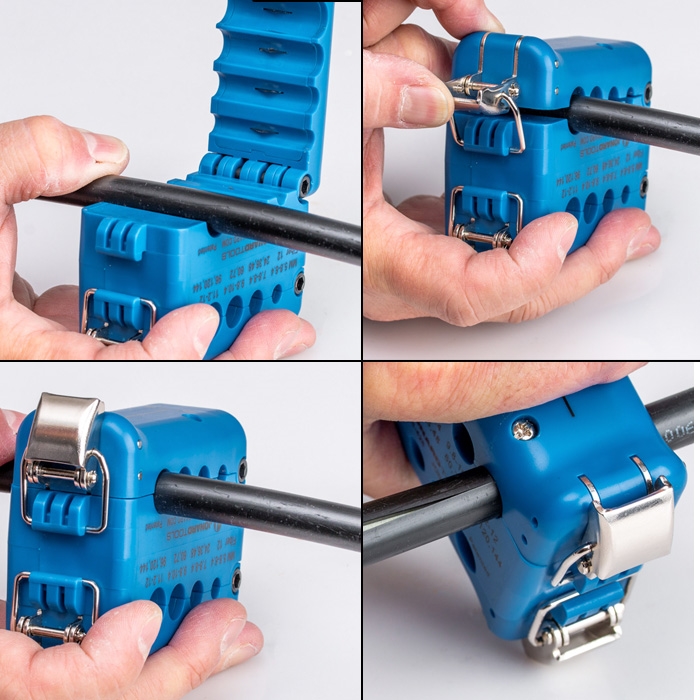

  • Easy to Use:
  • Open the appropriate side of the tool:
    • Select the correct groove size
    • Place the cable in the tool and close to lock in place
  • Note: The arrow on the top of the tool indicates the pulling direction and the line indicates the blade location
  • Close the tool making sure lock is engaged and pull to slit the cable
  • For ring operation use ring side of tool and repeat steps above, instead of pulling rotate the tool 3-6 times to ring the cable

  • Specification:
  • Cut Type: Slit, Ring
  • Cable Type: Loose Tube, Jacket
  • Features: 8 Precision Grooves
  • Weight: 0.25 lbs (0.11 kg)
  • Dimensions: 2.87" (73 mm) x 1.5" (38 mm) x 2.1" (53.5 mm)
