Jonard Tools Mid-Span Slitter - 10.2mm - 18.2mm

Jonard Tools Mid-Span Slitter - 10.2mm - 18.2mm




TTS PRICE: $170.99

STATUS:  IN STOCK


Availability:
Normally Ships Same Day

PRODUCT CODE: JON-MS-526
QUANTITY:

PRODUCT DESCRIPTION

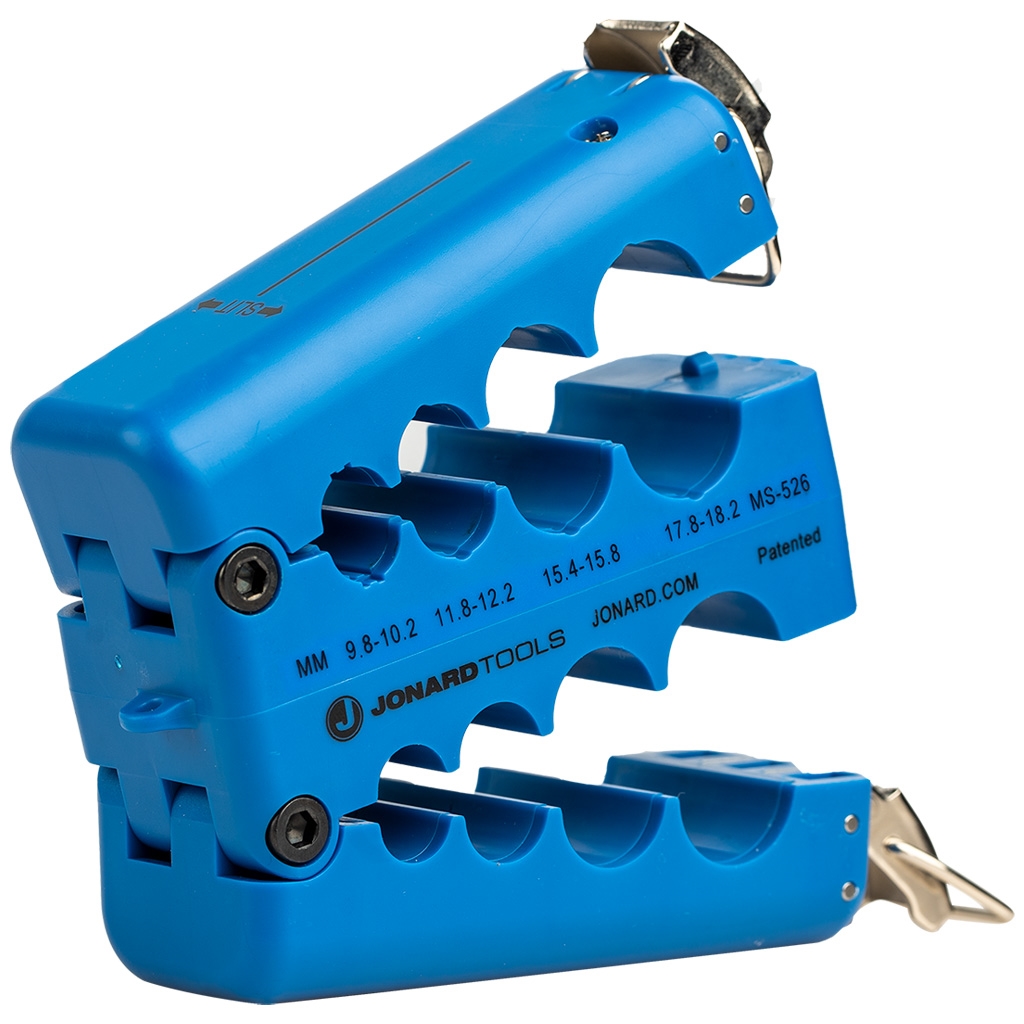

The PATENTED and award-winning MS-526 from Jonard Tools is a Mid Span Slit and Ring Tool designed to provide easy access to optical fibers in Corning Altos loose tube cable with binderless FastAcess technology (as well as other similar thin-walled 9.8 to 18.2 mm diameter jackets). Building on the popularity of the Jonard Tools MS-6 and MS-26 Fiber Optic Mid Span Slitting Tools, we have incorporated a ring feature in the tool to make it even more versatile.

Features:
  • Consists of 4 precision slitting grooves and 4 precision ring grooves ranging in size from 9.8 mm to 18.2 mm
  • One side of the tool performs radial/ring cuts and the other side slits the cable (longitudinal cut)
  • Compact design weighing less than 0.61 lb (277 g) with included tethering hole makes it perfect to use in tight spaces or on the go
  • The indicator line on top of the unit indicates the position of the blade for accurate slitting and ringing
  • This tool was specially designed for use on Corning Altos® loose tube with FastAccess® technology cables and other similar style cables
  • Replacement blade set available, part number: MS-526RB
  • Blades last for 5,000 slits/cuts

  • Groove Sizes:
  • 9.8-10.2 mm
  • 11.8-12.2 mm
  • 15.4-15.8 mm
  • 17.8-18.2 mm

  • Specifications:
  • Cut Type: Slit, Ring
  • Number of Slitting Grooves: 4
  • Number of Ringing Grooves: 4
  • Cable Type: Corning Altos® with FastAccess®
  • Cable Diameter: 9.8 mm-18.2 mm
  • Dimensions: 3.58" x 1.53" x 3.37" (9.1 cm x 3.9 cm x 8.6 cm)
  • Weight: 0.61 lb (277 g)
