Jonard MS-326 Mid Span Slit & Ring Tool - 5 mm to 10 mm Thin-Walled Microduct Cables
The MS-326 microduct fiber cable slit and ring tool is designed to provide easy access into fiber optic cables specifically designed for use in micro ducts. These cables have a thin wall jacket design that is difficult to open without causing damage to the buffer tubes inside, but the MS-326 addresses that concern. The MS-326 will also slit open thin wall buffer tubes.
Building on the popularity of Jonard Tools' MS-6 and MS-26 fiber optic mid span slitting tools, Jonard has incorporated a ring feature into the MS-326, making it even more versatile.

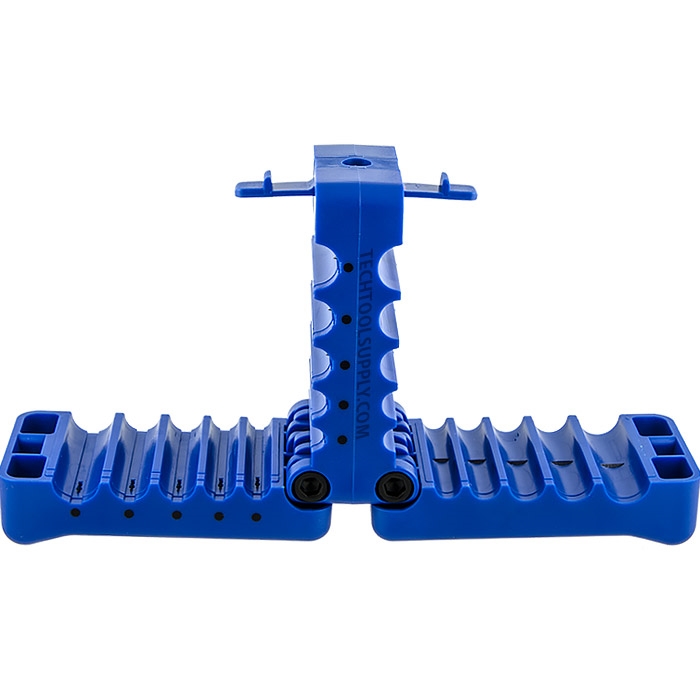

The MS-326 consists of 5 precision slitting grooves and 5 ring grooves ranging in size from 5mm to 10mm.
Note: This tool was designed for Corning fiber cables, MiniXtend® binderless FastAccess® and HD MiniXtend®, as well as other similar styles.
Features:
Five slitting and five ringing grooves from 5 mm to 10 mm
Made for thin-walled microduct cables

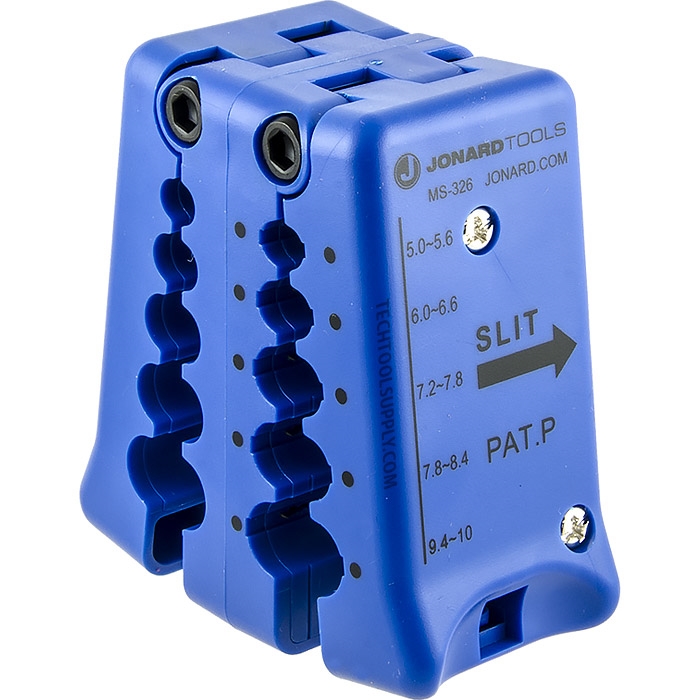

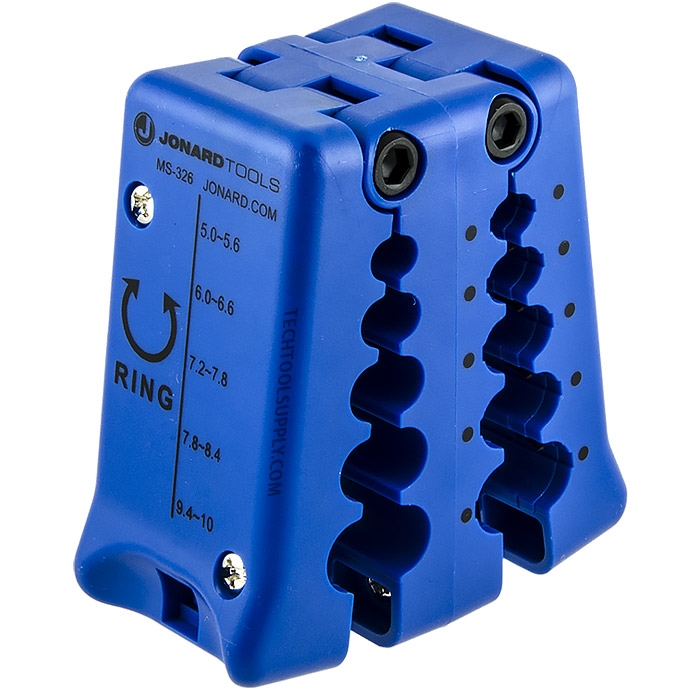

Ring side makes radial cuts; slit side makes lengthwise cuts
Indicator line on top shows the blade position
Weighs under 2.5 oz, with a tethering hole for work in tight spaces
Lifetime warranty
Groove Sizes:
5.0 - 5.6mm
6.0 - 6.6mm
7.2 - 7.8mm
7.8 - 8.4mm
9.4 - 10mm
Easy to Use:

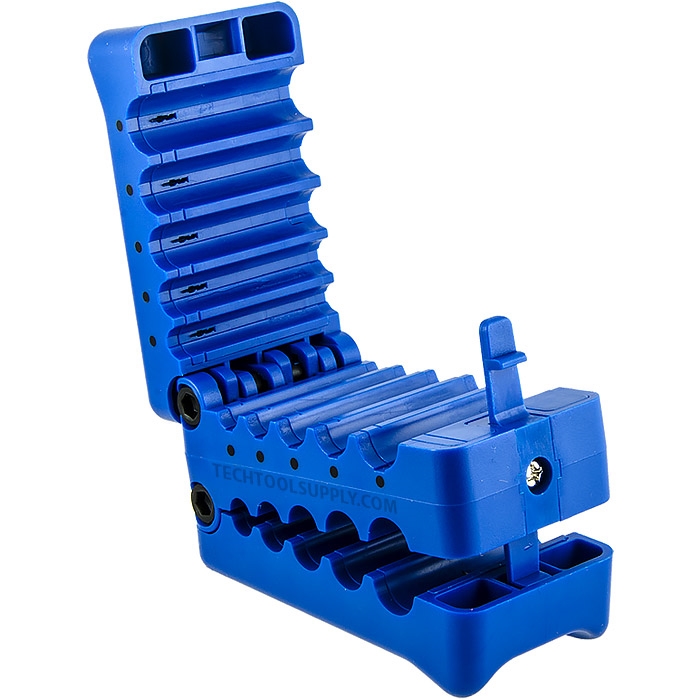

Open the appropriate side of the tool, select the correct groove size, then place the cable in the tool and close to lock in place
To ring: rotate the tool 3-6 times in direction of the arrow
To slit: use markings to align cable, pull in direction of arrow
Open the tool and remove the cable. If slit, peel the jacket along the slit lines
Specifications:
Cut Type: Slit and Ring
Number of Slitting Grooves: 5
Number of Ringing Grooves: 5
Cable Type: Thin-walled Jackets (microduct cable)
Cable Diameter: 5.00mm - 10.00mm
Dimensions: 3.14" x 1.53" x 2.07" (7.96 x 3.87 x 5.26 cm)
Weight: 0.22 lb (98 g)
Model: MS-326
Available Sizes:
| Part # | Jonard # | Description | Cut Type | Cable Diameter |
|---|
| JON-MS-6 | MS-6 | Mid Span Slitter (1.2 mm-3.3 mm) | Slit | 1.2 mm-3.3 mm |
| JON-MS-26 | MS-26 | Mid Span Slitter (2.9 mm-6.8 mm) | Slit | 2.9 mm-6.8 mm |
| JON-MS-306 | MS-306 | Mid Span Slit & Ring Tool (1.2 mm-3.3 mm) | Slit, Ring | 1.2 mm-3.3 mm |
| JON-MS-316 | MS-316 | Mid Span Slit & Ring Tool (2.9 mm-6.8 mm) | Slit, Ring | 2.9 mm-6.8 mm |
| JON-MS-326 | MS-326 (this item) | Mid Span Slit & Ring Tool (5 mm-10 mm) | Slit, Ring | 5 mm-10 mm |
| JON-MS-426 | MS-426 | Mid Span Slit & Ring Tool (5.8 mm-12 mm) | Slit, Ring | 5.8 mm-12 mm |
| JON-MS-526 | MS-526 | Mid Span Slit & Ring Tool (9.8 mm-18.2 mm) | Slit, Ring | 9.8 mm-18.2 mm |
| JON-MS-600 | MS-600 | Mid Span Shaving Tool (1.0 mm-3.3 mm) | Shave | 1.0 mm - 3.3 mm |
Data Sheet - Mid Span Slit & Ring Tools
