New!  Jonard Tools Mid-Span Slitter - 1.2mm - 3.3mm

Jonard Tools Mid-Span Slitter - 1.2mm - 3.3mm


Alternative Views:
TTS PRICE: $76.95

STATUS:  IN STOCK

Free Shipping

Availability:
IN STOCK & READY TO SHIP

PRODUCT CODE: JON-MS-6
QUANTITY:

PRODUCT DESCRIPTION

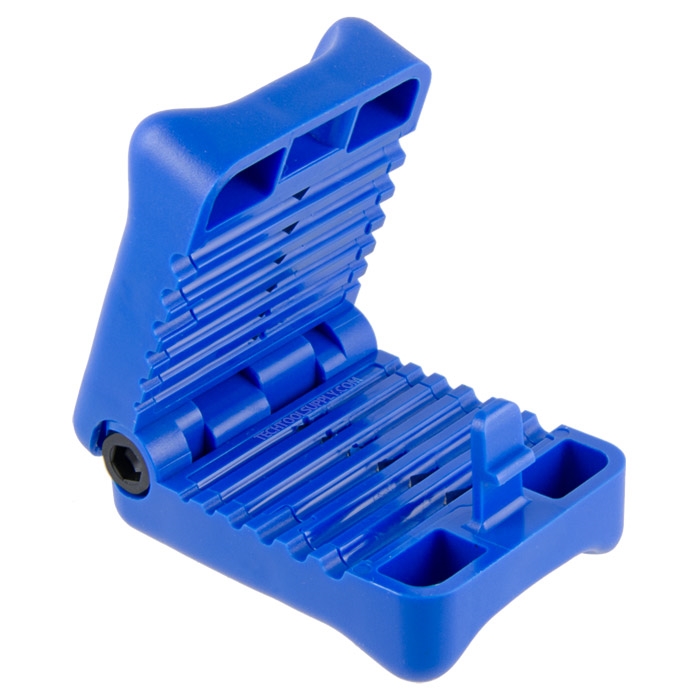

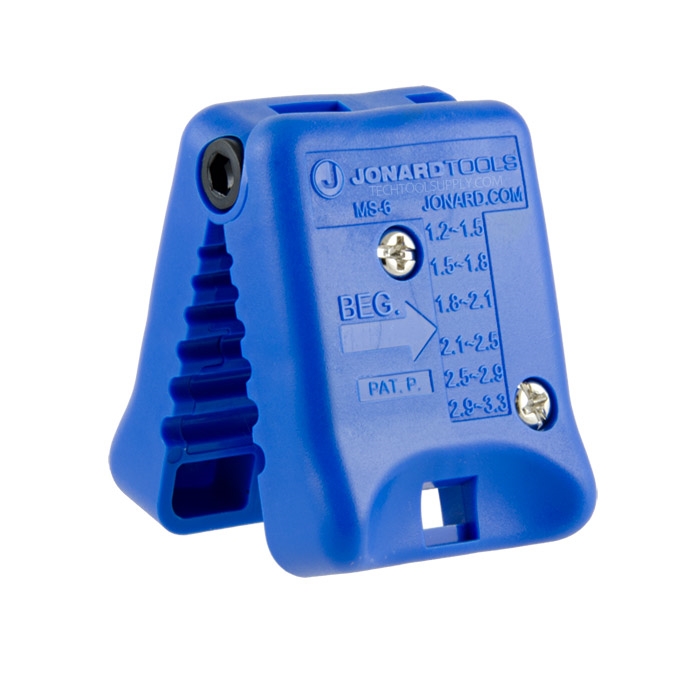

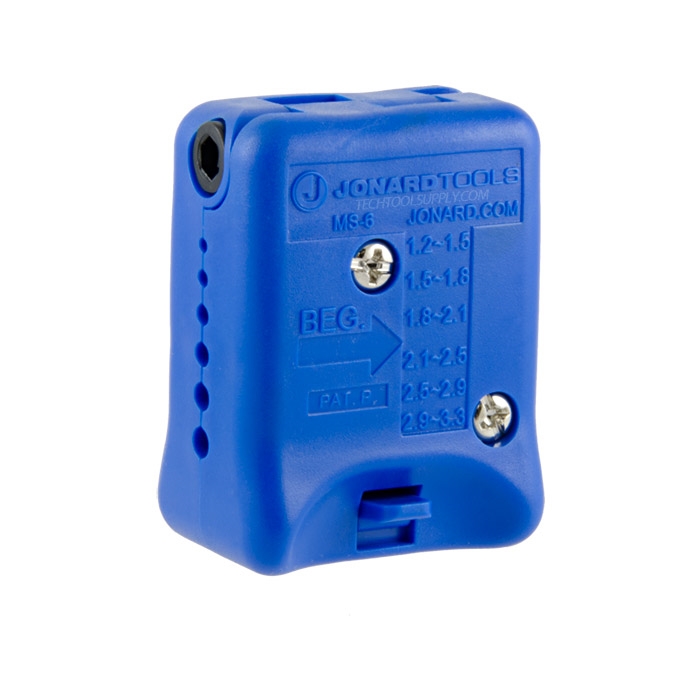

Jonard MS-6 Mid Span Slitter - 1.2 mm to 3.3 mm Jackets & Loose Buffer Tubes

The MS-6 Mid-Span Slitter from Jonard is designed to provide easy access to optical fibers in outer jackets and loose buffer tubes 1.2mm - 3.3 mm in diameter. With 6 precision grooves, buffer tube slitting is done without damage to the fiber, and better yet the blades are replaceable! It was designed for OFS EZ-Bend® 3.0 mm cable.

Need a larger size? Jonard's MS-26 is made for cable diameter 2.9 - 6.8 mm: JON-MS-26

Features:
  • Six precision slitting grooves from 1.2 mm to 3.3 mm
  • Opens outer jackets and loose buffer tubes without damaging the fiber inside
  • Indicator line on top shows the blade position
  • Weighs under 2.5 oz, with a tethering hole for work in tight spaces
  • Replaceable blades
  • Patented design
  • Lifetime warranty

    • Groove Sizes:
  • 1.2 - 1.5 mm
  • 1.5 - 1.8 mm
  • 1.8 - 2.1 mm
  • 2.1 - 2.5 mm
  • 2.5 - 2.9 mm
  • 2.9 - 3.3 mm

    • Specifications:
  • Cut Type: Slit
  • Number of Slitting Grooves: 6
  • Cable Type: Outer Jackets, Loose Buffer Tubes
  • Cable Diameter: 1.2 - 3.3 mm
  • Weight: 0.09 lb (41 g)
  • Model: MS-6

    • Available Sizes:
    Part #Jonard #DescriptionCut TypeCable Diameter
    JON-MS-6MS-6 (this item)Mid Span Slitter (1.2 mm-3.3 mm)Slit1.2 mm-3.3 mm
    JON-MS-26MS-26Mid Span Slitter (2.9 mm-6.8 mm)Slit2.9 mm-6.8 mm
    JON-MS-306MS-306Mid Span Slit & Ring Tool (1.2 mm-3.3 mm)Slit, Ring1.2 mm-3.3 mm
    JON-MS-316MS-316Mid Span Slit & Ring Tool (2.9 mm-6.8 mm)Slit, Ring2.9 mm-6.8 mm
    JON-MS-326MS-326Mid Span Slit & Ring Tool (5 mm-10 mm)Slit, Ring5 mm-10 mm
    JON-MS-426MS-426Mid Span Slit & Ring Tool (5.8 mm-12 mm)Slit, Ring5.8 mm-12 mm
    JON-MS-526MS-526Mid Span Slit & Ring Tool (9.8 mm-18.2 mm)Slit, Ring9.8 mm-18.2 mm
    JON-MS-600MS-600Mid Span Shaving Tool (1.0 mm-3.3 mm)Shave1.0 mm - 3.3 mm

    Replacement Parts:
    Part #Jonard #Description
    JON-MSB-1533MSB-1533Replacement blades for MS-6 (our item JON-MSB-1533)
    Data Sheet - Mid Span Slit & Ring Tools
