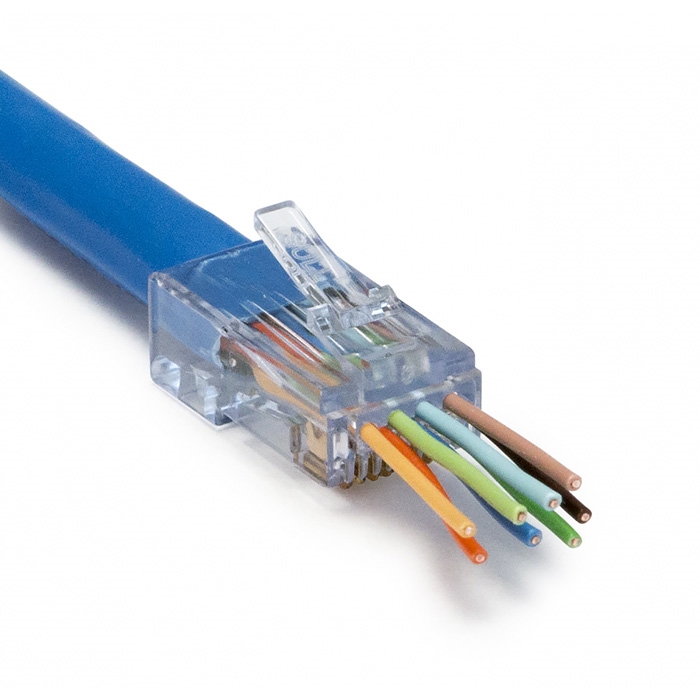

This RJ45 pass through style connector from Platinum Tools is designed for smaller cables and conductors typically found in Cat5e and smaller Cat6 cabling. The ezEX38 features the same unique integrated patented Hi-Lo stagger load bar, allowing the conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. This connector is typically used with Cat5e and smaller Cat6 cabling. The compatible crimping tool is Platinum Tool's EXO Crimp Frame and EXO-EX Die (100061C).
Features:
Hi-Lo stagger to isolate each conductor
Simple one piece/pass through design, no bars or liners
50 micron gold plated contacts
5e/6/6A compliant
Solid or Stranded 24-22 AWG
TIA, TAA, RoHS, UL & FCC compliant
Typically used with Cat5e
Made in the USA
Specifications:
Quantity: 100 connectors
Insulation Diameter (Conductor) Size range: .033” – .038” (0.84 –0.97mm)
Max Outer Diameter: .290” (7.36mm)
