Ripley 17900 WS 40 Motorized Semi-Con Shield Removal Tool

Home > Categories > Utility & MV Cable Prep > Semi-Con Scoring Tools >

UtilityTool by Ripley Tools WS 40 Motorized Semi-Con Shield Removal Tool, 5-34.5kV, 115 VAC

TTS PRICE: $3,655.09

STATUS: ON ORDER

Availability:

SHIP ESTIMATE 6-8 DAYS

PRODUCT CODE: RIP-17900

QUANTITY:

PRODUCT DESCRIPTION

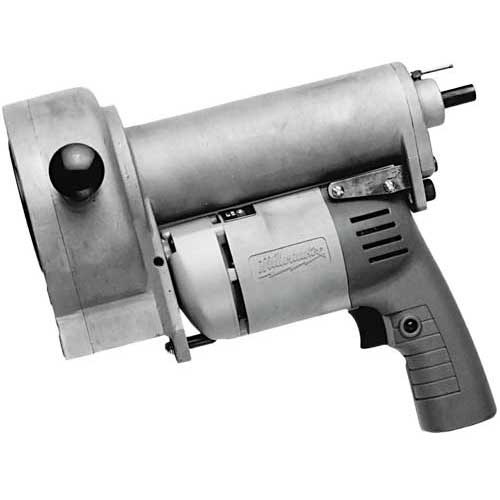

Ripley UtilityTool WS 40 Motorized Semi-Con Shield Removal Tool - 5-34.5 kV, 115 VAC

The WS 40 is a motorized tool for removing the semi-con shield from 5 to 34.5 kV cable with diameters from 0.625" to 1.875" (15.9 to 47.6 mm). It works on semi-con over XLPE, polyethylene and EPR insulation.

Master shaving bushings and adapter sleeves fit the tool to each cable and are sold separately; the CB 43 blade fits the MSBA to MSBD sleeves.

Features:

Motorized semi-con shield removal, 5-34.5 kV

Cable diameter 0.625-1.875in (15.88-47.63 mm)

For XLPE, PE and EPR semi-con

115 VAC power

Master shaving bushings and adapter sleeves sold separately

Specifications:

Model: Ripley UtilityTool WS 40 (Ripley Part # 17900)

Voltage: 5 kV - 34.5 kV

Cable OD: 0.625-1.875in (15.88-47.63 mm)

Power: 115 VAC

Material: Aluminum

Length: 12in (305 mm)

Weight: 13 lb

Replacement Parts:

Part #	Ripley #	Description
-	17918	CB 43 blade - MSBA / MSBB / MSBC / MSBD sleeves
-	17951	CB 43-1 blade - MSBD-1 / MSBE sleeves
-	17952	CB 43-2 blade - MSBE-1 sleeves
