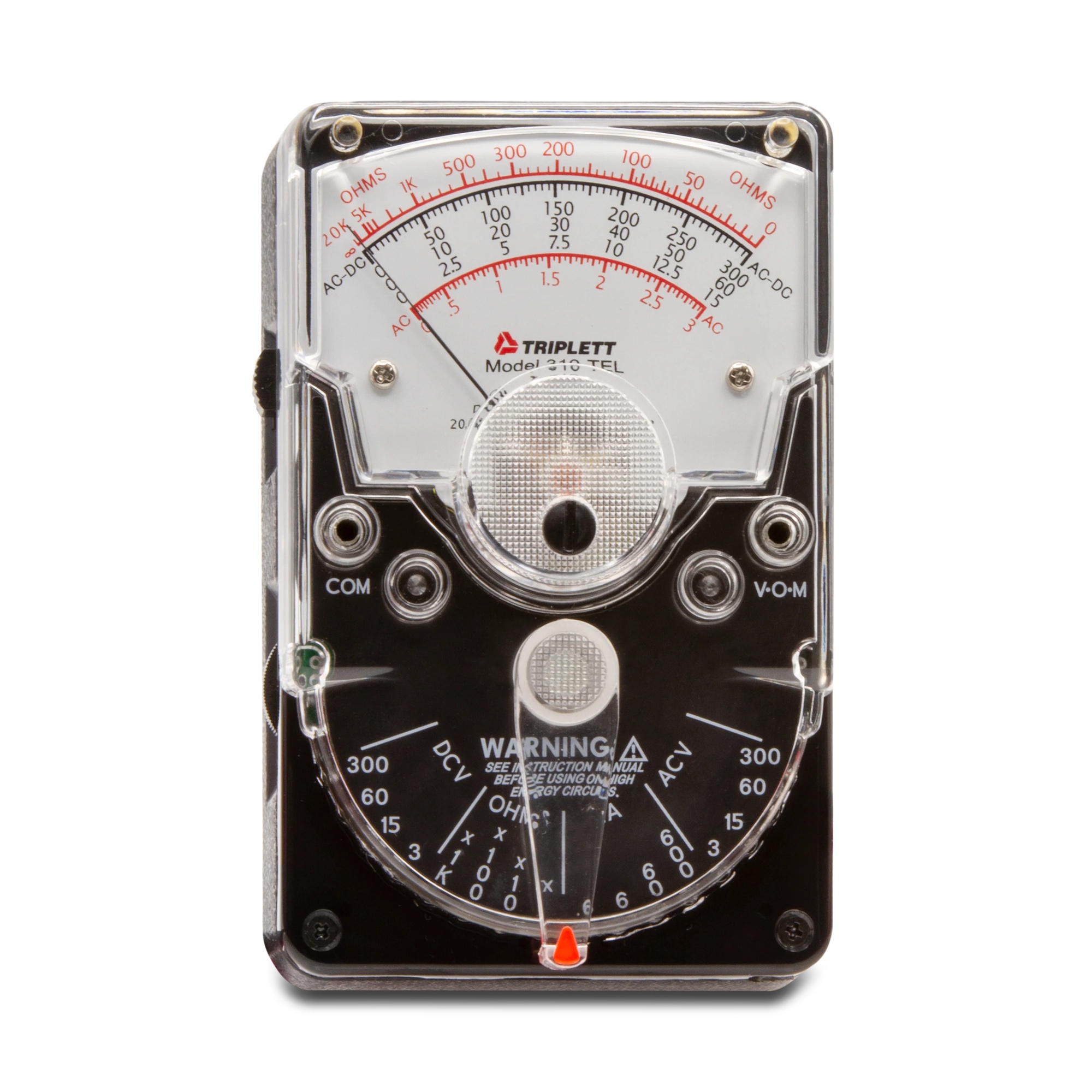

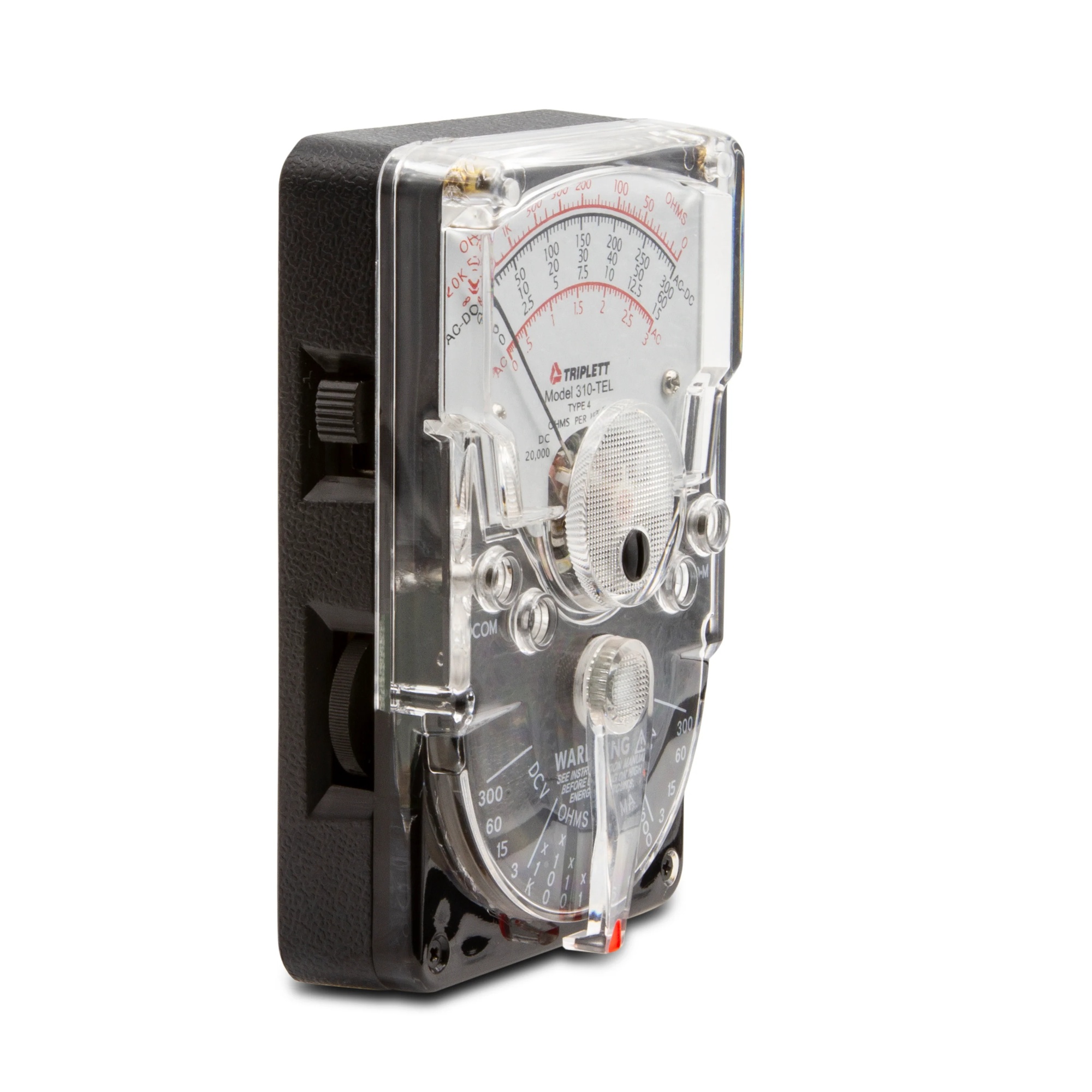

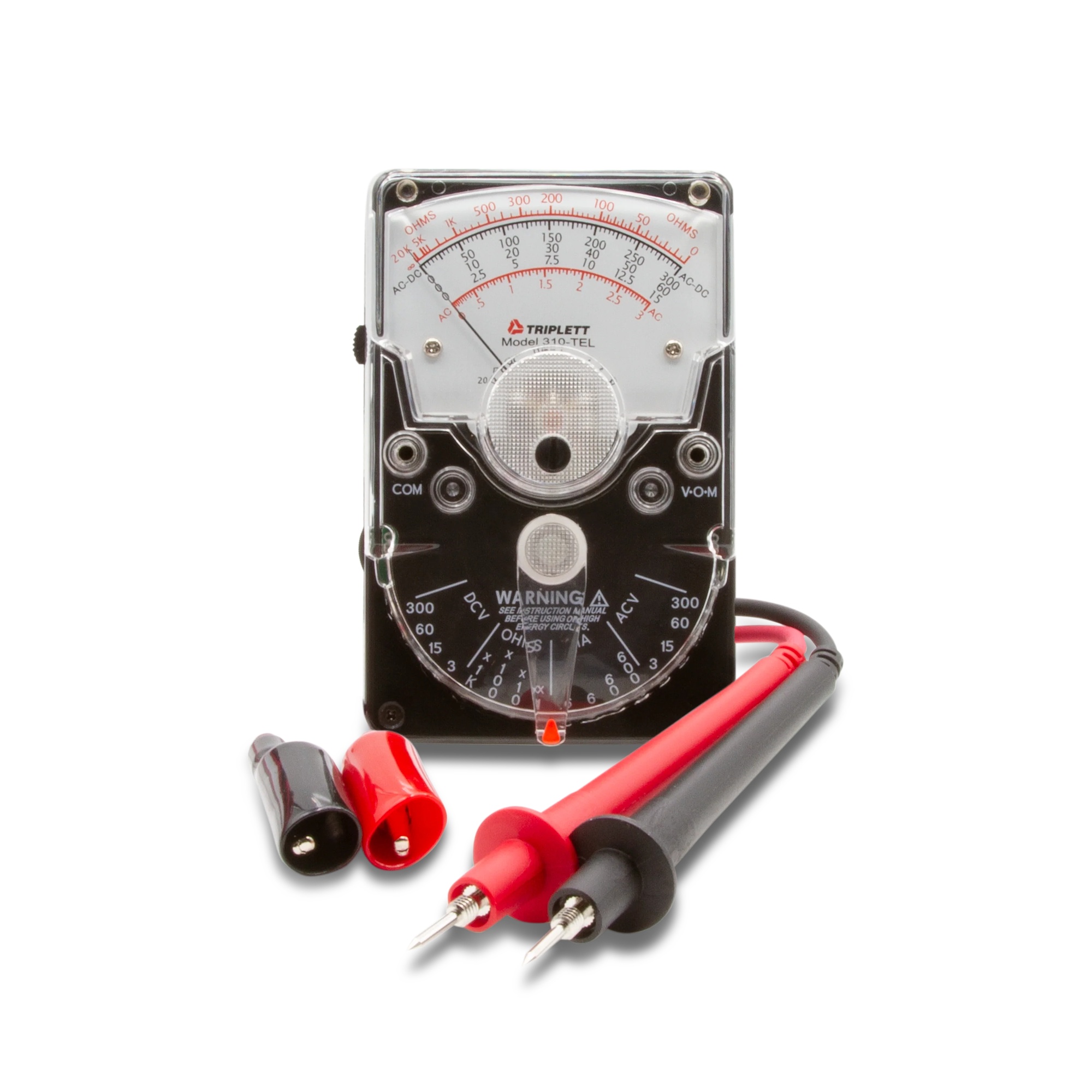

Triplett 3067 (310-TEL) Compact Analog Multimeter - 16 Ranges, 3 Scales, Diode Overload Protection The Triplett 3067 (Model 310-TEL) is a hand-size analog VOM with the readability of a bench meter. Its 16 ranges read on three clearly marked scales through a single selector switch. A polarity reversing switch corrects downscale readings and allows capacitive-kick checks on the ohm ranges. Diode overload protection guards the movement, the RX1 range is fused, and it fits in a shirt pocket or toolbox. Features:16 ranges and functions on 3 clearly defined scalesAC/DC voltage to 300VPolarity reversing switchDiode overload protection; fused RX1 range20,000 ohms per volt DC, 5,000 ohms per volt ACDrop-resistant high-impact caseIncludes:3067 analog multimeter79-153 test leadsAlligator clips(1) 12V A23 and (1) 1.5V N batteriesSpecifications:Manufacturer: TriplettAC Voltage: 3, 12, 60, 300V (5k ohm/V), +/-4% FSDC Voltage: 3, 12, 60, 300V (20k ohm/V), +/-3% FSDC Current: 0.6, 6, 60, 600mA, +/-3% FSResistance: 20k, 200k, 2M, 20M ohm, +/-3%Dimensions: 2.75 x 1.3 x 4.25 inWeight: 7.2 ozWarranty: 3 yearsUPC: 614395000202Model: 3067 (310-TEL)
