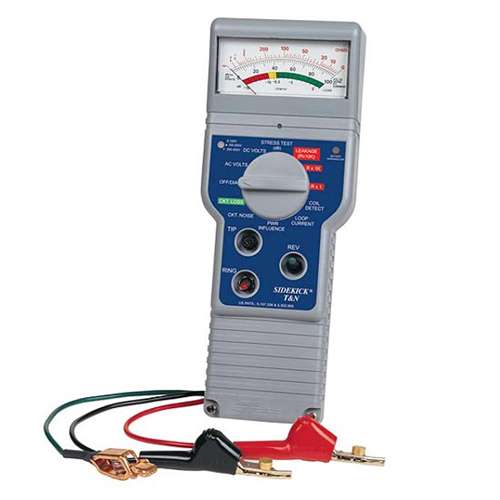

Tempo 1137-5002 Sidekick T&N Tester

Tempo 1137-5002 Sidekick T&N Tester


TTS PRICE: $1,790.99

STATUS: ON ORDER

Free Shipping

Availability:
SHIP ESTIMATE 5-7 DAYS

PRODUCT CODE: 1137-5002
QUANTITY:

PRODUCT DESCRIPTION


Tempo 1137-5002 Sidekick T&N Test Set - Transmission & Noise Testing for POTS Lines

Tempo's 1137-5002 Sidekick T&N is a versatile test set that identifies frequently missed faults and tests and qualifies the transmission quality of POTS lines. The Sidekick T&N improves customer satisfaction by reducing repeat service calls and eliminating service interruptions. The test set works on any twisted pair application.

The 1137-5002 combines a lightweight, rugged design with five test functions that provide quality loop testing for POTS lines.

Features:
  • 5 transmission and noise tests
  • Determines the stressed noise susceptibility of dry and working pairs
  • Measures resistance, AC/DC volts, leakage and capacitive kick
  • Loop current, circuit loss, circuit (metallic) noise, power influence and load coil detection tests
  • Provides tone for twisted pair or crossed conductor identification
  • Single setup for testing Tip-Ring, Tip-Ground and Ring-Ground
  • Minimal drying effect in all ranges
  • Field-replaceable leads
  • Soft case with adjustable strand hook
  • Low battery indicator light

    • Specifications:
  • DC Voltage: 0 to 100 V DC
  • AC Voltage: 0 to 200 Vrms
  • Stress Test: 0 to 82 dBrnC
  • Loop Current: 0 to 100 mA
  • Circuit Noise: 0 to 75 dBrnC
  • Circuit Loss: -15 to +1 dB
  • Power Influence: 50 to 100 dBrnC
  • Operating Temperature: -20°C to +60°C
  • Power: Four AA batteries
  • Dimensions: 10.75" x 4.25" x 2.5"
  • Model: 1137-5002

    •
