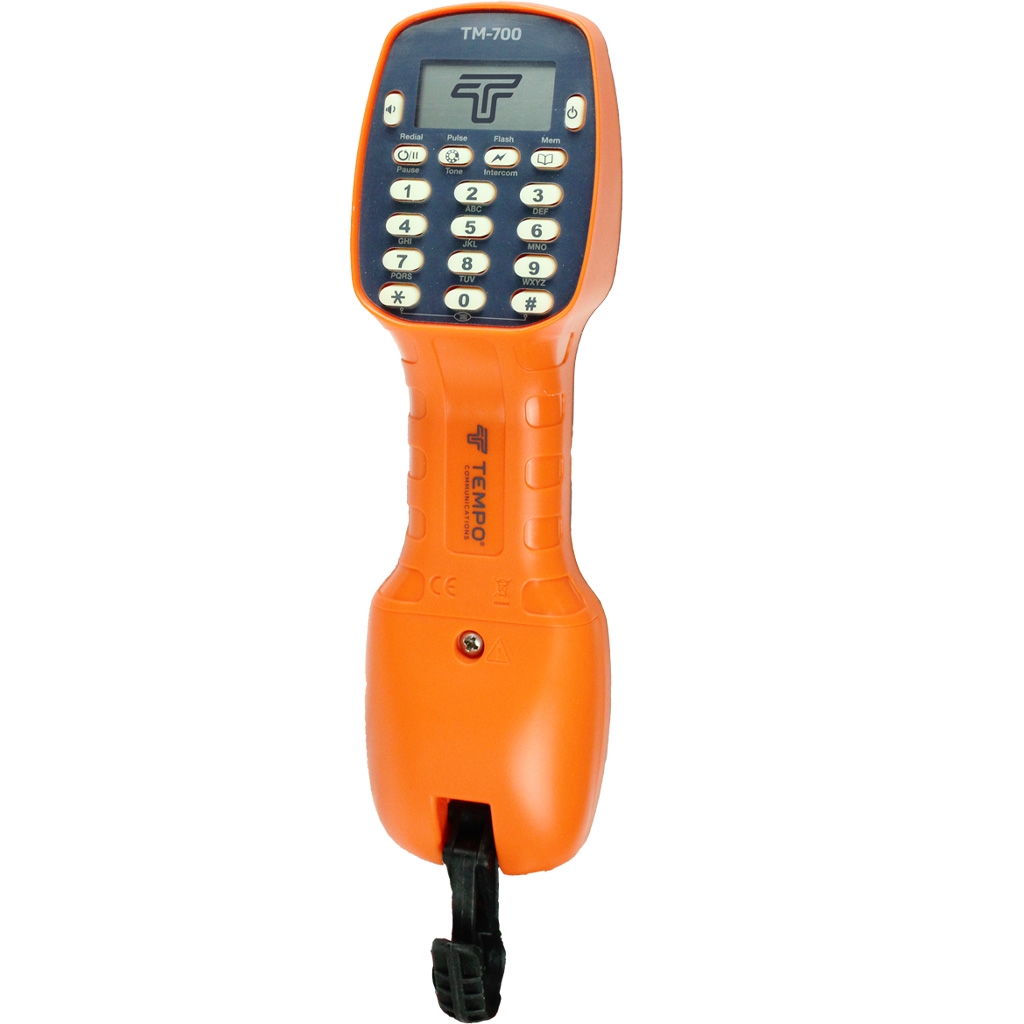

Tempo TM-700 Tele-Mate Pro Telephone Test Set - LCD, Caller ID, DSL Compatible
The Tempo Communications TM-700 Tele-Mate® Pro Telephone Test Set is intended to assist with installing and maintaining complex telecom systems. A complete butt-in test set, the TM-700 adds useful features such as a loudspeaker monitor, caller ID, speed dial, intercom, and a line voltage/current/frequency meter. Its LCD makes reading polarity, voltage, current and ringing frequencies easy and clearly shows speed dials and recent numbers.

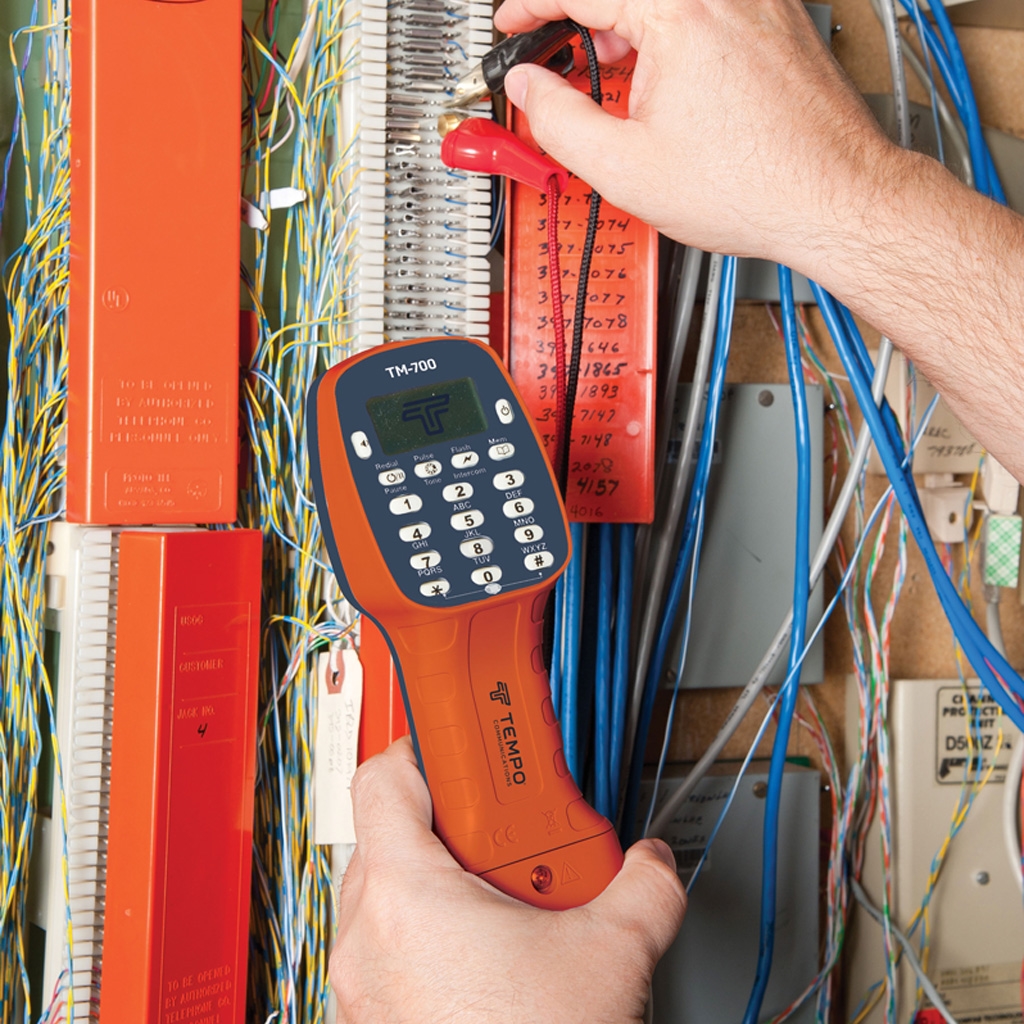

The TM-700 works in handset mode, with the included headset, or with the amplified loudspeaker line monitor. Use the telco-type test leads and clips or the integral modular jack for line connection.
Features:
Complete telephone set with ringer; headset or handset operation
DSL compatible in both monitor and talk modes; Super Impedance Amplifier monitors lines without disrupting traffic

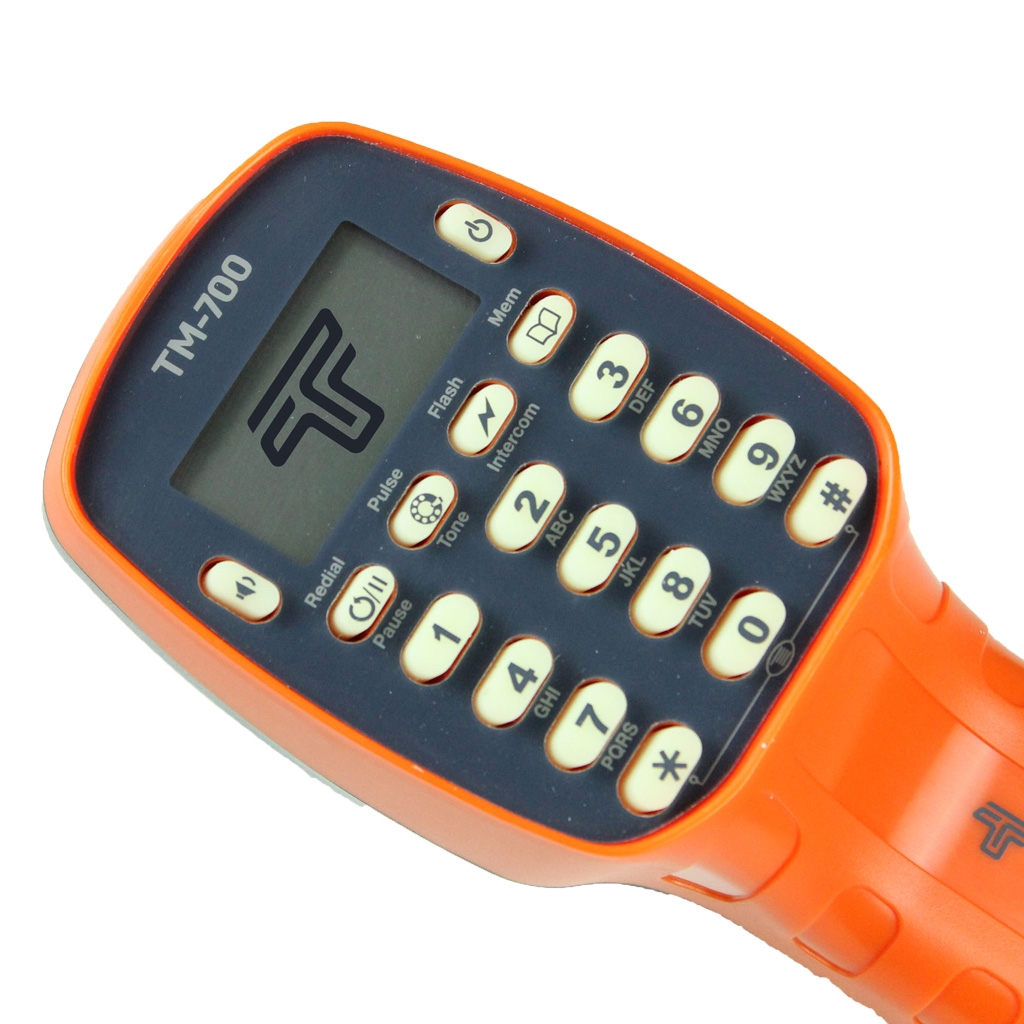

LCD for dialing, programming, caller ID, voltage, current, ringing and DTMF measurements
Phone-to-phone SmartIntercom™ for dead-pair talking, including ringing the far end
Built-in pair tracing toner works with Tempo probes and other audio-range probes; tone output mode
Tone and pulse dialing; large 10-location speed dialing memory; multi-memory redial; DTMF digit detection
Caller ID with name display, call waiting caller ID and missed call indication
High voltage detect and lockout; over-voltage and over-current protection; glow-in-the-dark keypad
Includes:
Headset
Specifications:
Type: Telephone Test Set (Butt Set)
Application: Test telephone (buttset) with high-impedance monitor, LCD, SmartIntercom, calling line ID, pair tracing toner, DTMF decoding, multiple last-number redial and ten speed-dial memories
Connection: Telco-type test leads and clips or modular jack
DC Voltage: TNV-3 working, 500 V peak, 1500 V transient
Voltage Measurement: 110 V dc max
Leakage: > 10 MΩ
Loop Current: 10 mA to 125 mA
Standard: TIA/EIA-470-B and ETSI
Storage Temperature: -10 C to +70 C, <95% humidity
Operating Temperature: 0 C to +50 C, <90% humidity (no condensation)
Dimensions: 9.25" L x 2.5" W x 3.25" H (235 x 64 x 83 mm)
Model: TM-700
Replacement Parts:
| Part # | Tempo # | Description |
|---|
| - | CS-01 | Spare part listed by Tempo for the TM-700 |
| - | CS-02 | Spare part listed by Tempo for the TM-700 |
| - | CS-03 | Spare part listed by Tempo for the TM-700 |
| - | CS-04 | Spare part listed by Tempo for the TM-700 |
| - | CS-05 | Spare part listed by Tempo for the TM-700 |
| - | CS-06 | Spare part listed by Tempo for the TM-700 |
| - | CS-07 | Spare part listed by Tempo for the TM-700 |
| - | HS-001 | Spare part listed by Tempo for the TM-700 |
Related Products:
| Part # | Tempo # | Description |
|---|
| - | PE830 | Earlier Tele-Mate Pro test set - replaced by the TM-700 |
| TEM-TM-500 | TM-500 | Tele-Mate line-powered, DSL-compatible butt set |
