Tempo Tone Generator

Tempo Tone Generator

Alternative Views:

TTS PRICE: $72.99


Normally Ships Same Day

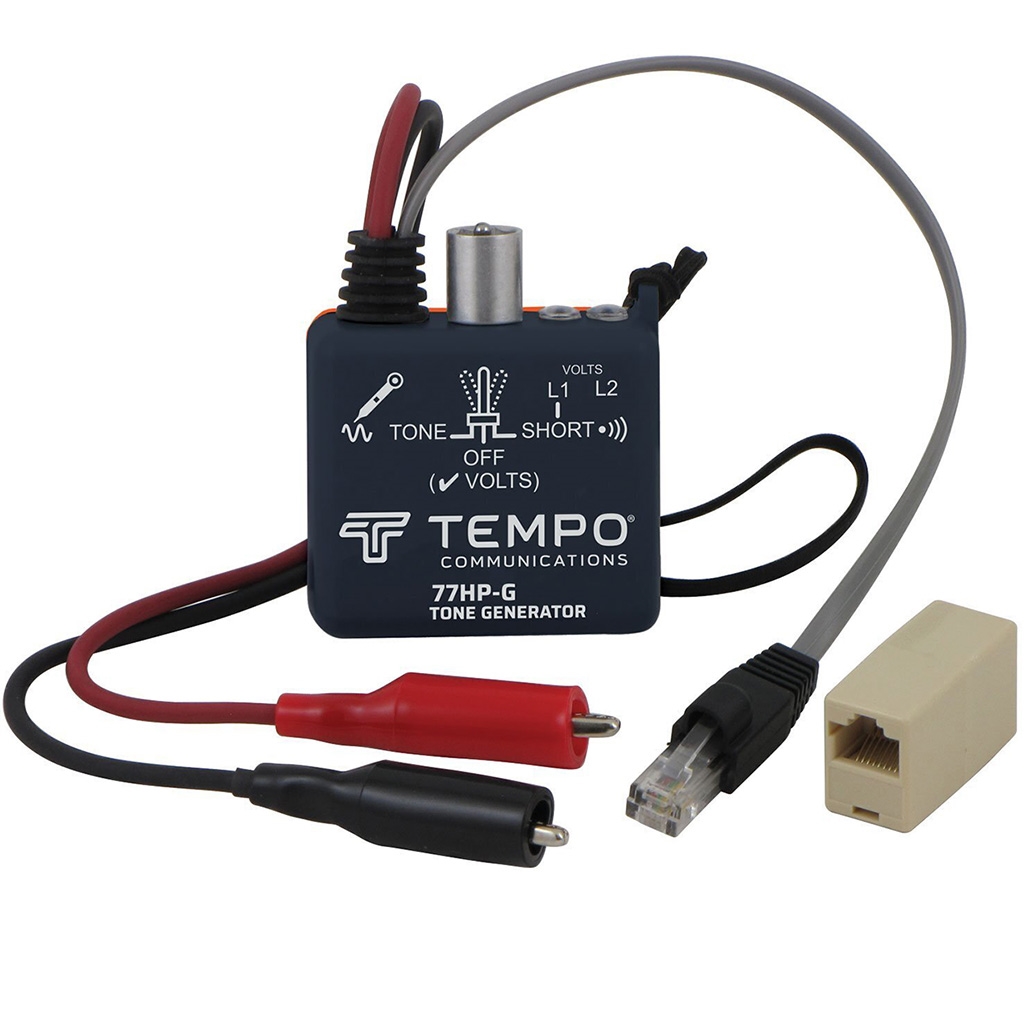

The 77HP-G Tone Test Set is housed in a high impact plastic case and is powered by one 9 volt battery. Standard test leads include red and black rubber insulated test clips and a snag-proof 4-conductor modular cord and plug.

In addition to the test lead strain relief, the 77HP-G provides a durable lanyard for carrying or hanging the tester. A three-position toggle switch controls the modes of operation and two (2) bicolored Light Emitting Diodes (LEDs) display line polarity for Lines 1 and 2. The tone and continuity test functions are only applied to Line 1 using the modular plug. A tone selector switch located inside each unit, may be used to select a fast or slow warble tone output.

The 77HP-G is compatible with all common Central Office Switching Systems and the output tone is isolated from DC voltages.

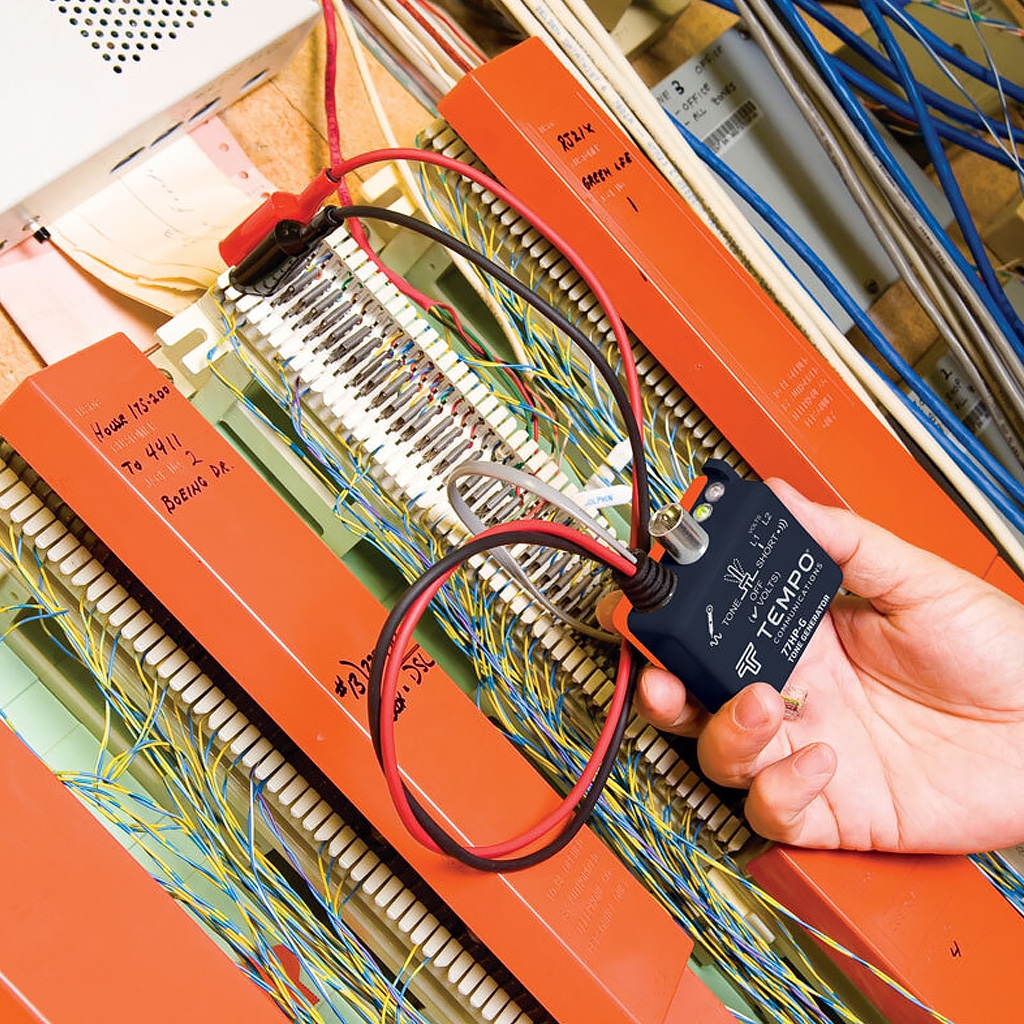

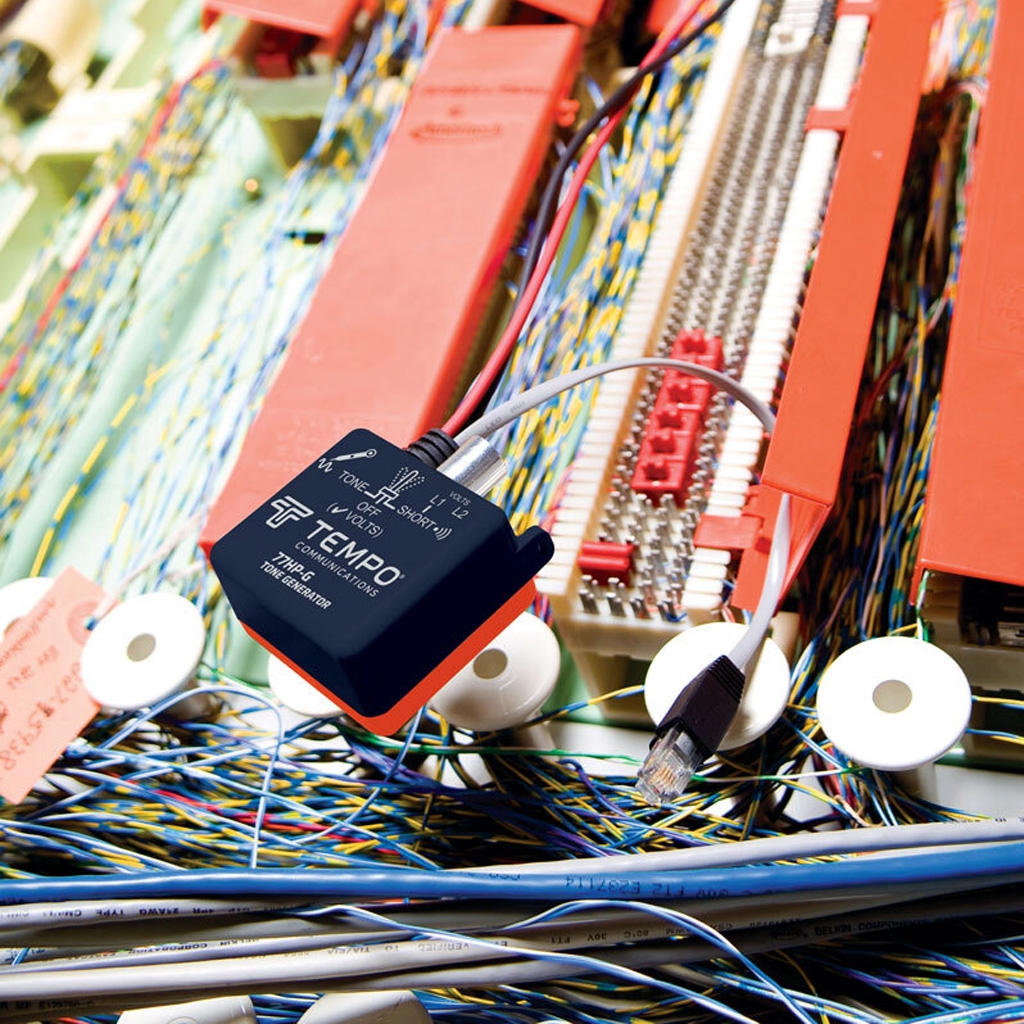

  • Permits technicians to identify the conductor within a bundle, at a cross-connect point or at the remote end
  • Can be used on twisted pair wiring (telecom, datacom, etc.), single conductors, coaxial cables, de-energized AC wiring and most other wiring

  • Specifications:
  • Talk Battery (into 600 Ohm): 4.5vdc
  • Output Power (into 600 Ohm): +7dBm
  • Voltage Protection (into a 600 Circuit): 52 Vdc
  • Battery: 9 Vdc (NEDA 1604, JIS 006P or IEC 6LR61)
  • Battery Life: 50 hours
  • Length: 32mm (1.25)
  • Width: 64mm (2.5)
  • Height: 57mm (2.25")
  • Weight (max): 128g (4.5 oz)
