Tempo 601K-G Basic Tone and Probe Kit

Tempo 601K-G Basic Tone and Probe Kit


TTS PRICE: $84.09

STATUS:  IN STOCK

Free Shipping

Availability:
IN STOCK & READY TO SHIP

PRODUCT CODE: GRE-601K-G
QUANTITY:

PRODUCT DESCRIPTION

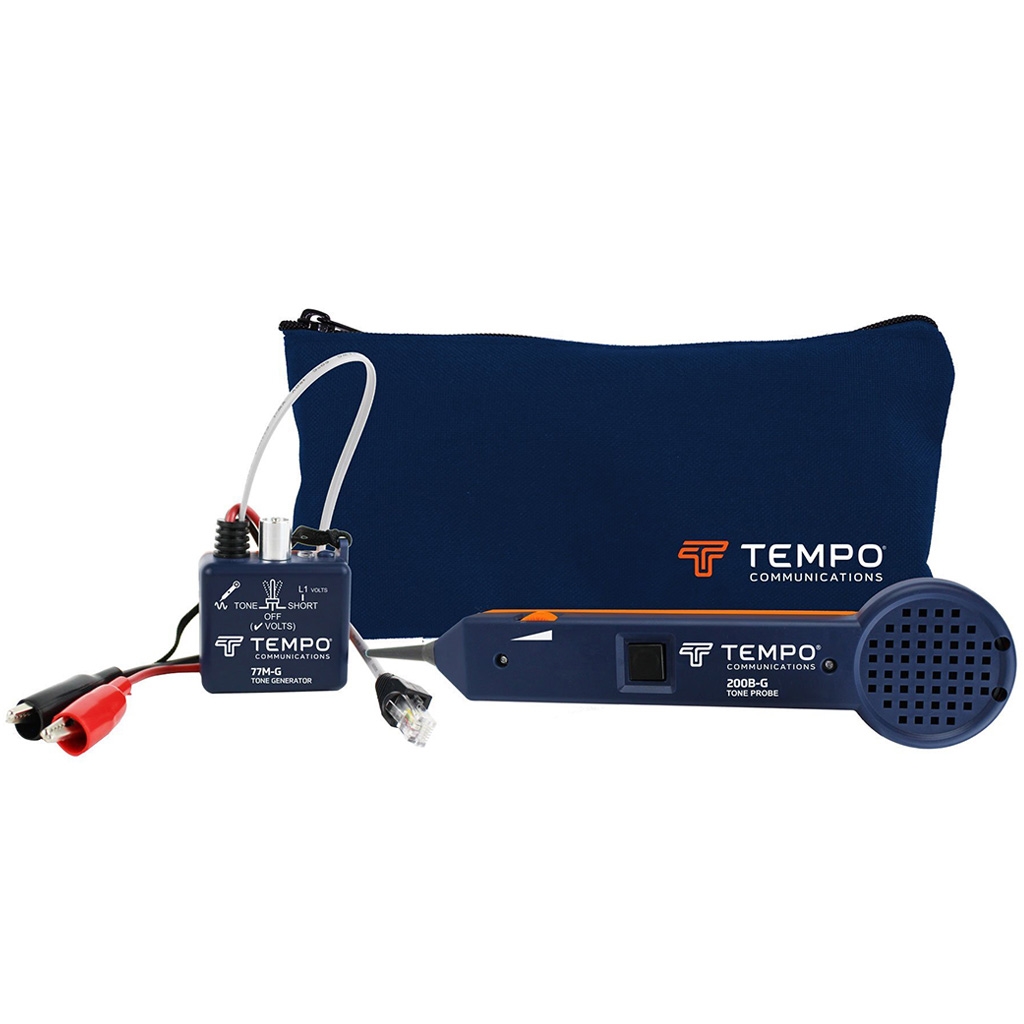

Tempo 601K-G Basic Tone and Probe Kit - 77M-G Tone Generator & 200B-G Probe

For professionals needing fundamental wire identification tools without costly extras, the 601K-G Tone & Probe Kit is the answer. The 601K-G consists of the 77M-G Tone Generator and the 200B-G Inductive Amplifier, and features adjustable volume control, continuity & polarity LED, external warble select and a replaceable tip. The kit can be used on single conductors, twisted pairs, coaxial cables and de-energized electrical wiring. Both units come housed in a zippered nylon pouch.

Features:
  • Tone and probe tracing for voice, data and video wiring
  • Identifies wires in multi-pair cable
  • Polarity indication of telephone lines
  • Continuity test
  • Adjustable gain/volume control
  • External warble select and replaceable probe tip
  • Voltage protection
  • Long-lasting battery

    • Kit Includes:
  • 1 x 77M-G Tone Generator
  • 1 x 200B-G Tone Probe Amplifier
  • 1 x Zippered nylon carry pouch

    • Specifications:
  • Type: Classic, Basic
  • 77M-G Power: One 9V battery, nominal life 50 hrs
  • 77M-G Talk Battery: 4.6 VDC
  • 77M-G Resistive Short Visual Indication: <10 ohm
  • 77M-G Output Power (into 600 ohm): +10 dBm
  • 77M-G Voltage Protection (at 600 ohm): 52 VDC
  • 77M-G Output Frequency (nominal): Alternating-890/960 Hz; Warbling Slow 1.3Hz/Fast 6Hz
  • 77M-G Case: High-impact ABS, 1.25" x 2.25" x 2.5"
  • 77M-G Test Leads: 24"
  • 77M-G Weight: 4.5 oz with battery
  • 200B-G Battery: 9V DC
  • 200B-G Plastic Tip Resistance: 300 ohm
  • 200B-G Input Impedance: 100M ohm
  • 200B-G Gain (nominal): 30 dB
  • 200B-G Operating/Storage Temperature: 0°C to 50°C (32°F to 122°F)
  • Package: Clamshell Pack
  • Model: 601K-G


    • Kit Versions:
    Part #Tempo #Description
    GRE-701K-G701K-GUpgraded kit - 77HP-G tone generator, 200EP-G probe with headset jack and flashlight, 700C case
    601K-G Tone Tracing Kit Data Sheet 200EP-G / 200B-G Tone Probe User Manual 77HP-G Tone Generator User Manual
