Ripley CS05-7000 MWSS Universal

Home > Categories > Cable Prep & Termination > Coax Cable Strippers > Web & Messenger Slitters >

TTS PRICE: $151.99

STATUS: ON ORDER

Availability:

Normally Ships Same Day

PRODUCT CODE: RIP-CS05-7000

QUANTITY:

PRODUCT DESCRIPTION

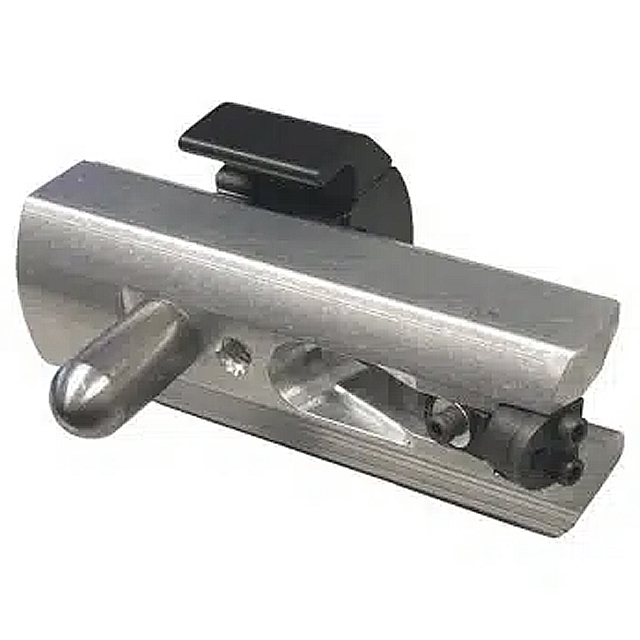

The Cablematic® MWSS Universal is engineered to separate the messenger and main cable on figure-8 coax or fiber optic cables, shaving the residual web from the jacket to produce a round, water-tight form with a connector. Built with user safety at the core of its design, the tool’s spring-loaded blade shield secures the blade to the tray to ensure safety during use.

Features

Compatible with coax sizes: 320QR, 412, 500, 540QR, 565, 625, 700, 715R
Suitable for messenger separation on most figure-8 fiber cables
Compatible with CommScope® and Times Fiber cables
Shaving blade can be field-adjusted for each job
Outer diameter coax or fiber cable capacity: 0.4″–0.7″ (10.16–17.78 mm)
Guarded blades for optimum safety
Spring-loaded blade shield secures blade during use
Easy to use while wearing gloves

Specifications:

Dimensions: 3.8″ × 2″ × 1″ (96 × 50 × 25 mm)
Weight: 7.05 oz (200 g)
Replacement blade part #: 37027
