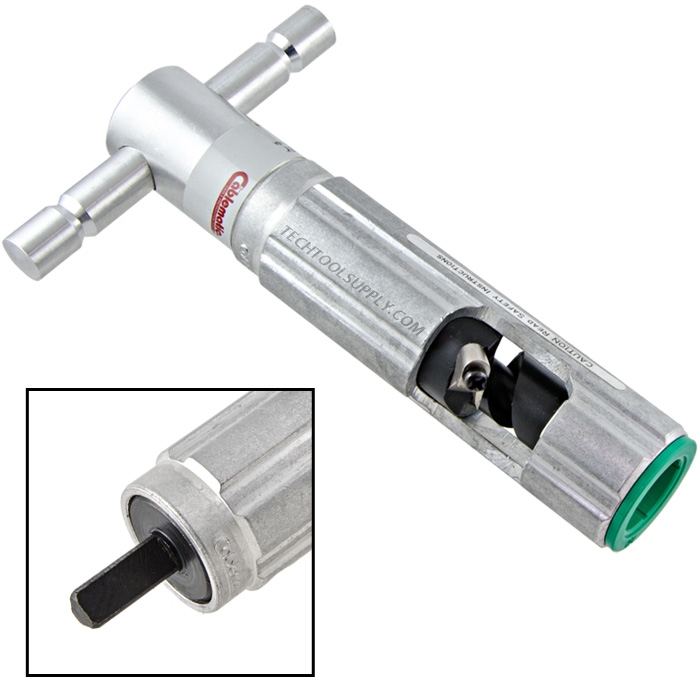

Ripley Cablematic 750 Coring Tool

Ripley Cablematic 750 Coring Tool


TTS PRICE: $95.99

STATUS:  IN STOCK

Free Shipping

Availability:
IN STOCK & READY TO SHIP

PRODUCT CODE: CST-750
QUANTITY:

PRODUCT DESCRIPTION


Ripley Cablematic CST 750 Coring & Stripping Tool - 750 kcmil, Green Guide Sleeve

The CST-750 from Ripley is a great addition to any tool kit with its ability to be used on CommScope® P3 cable; Times Fiber T10 cable; Alcatel / Benelux ACE/ACW cable. Ripley's CST-750 features manual or drill operation with a standard "T" handle and a built in 3/8" drill adapter. It also features a heat treated, sheath cutting blade that produces a smooth beveled edge and can be replaced without the expense of replacing the entire coring bit.

Features:
  • Manual or drill operation - standard "T" handle with a built-in 3/8" (9.5 mm) drill adapter
  • Combination stripping and coring tool - strips the sheath and cores the dielectric in one precise operation
  • Heat treated sheath cutting blade produces a smooth, beveled edge and can be replaced
  • Spiral-fluted, heat treated steel coring bit
  • Rugged, durable all metal construction with color-coded guide sleeves for easy cable size identification
  • Accepts strip stops for strip lengths of 0.5" to 2" (12.7 to 50.8 mm)

    • Specifications:
  • Cable Size: 750 kcmil
  • Cable Compatibility: CommScope® P3; Times Fiber T10; Alcatel / Benelux ACE/ACW
  • Handle: Standard "T" handle
  • Drill Adapter: Built-in 3/8" (9.5 mm)
  • Sleeve Color: Green
  • Cable Access: End
  • Length: 6.88" (175 mm)
  • Weight: 13 oz (369 g)
  • Model: 32110

    • Available Sizes:
    Part #ModelRipley #HandleCable Size (kcmil)Cable CompatibilityCoring Bit Kit
    CST-412CST 41231810Standard412CommScope® P3; Times Fiber T10; Alcatel / Benelux ACE/ACW31220
    CBM-31850CST 412-R31850Ratchet412CommScope® P3; Times Fiber T10; Alcatel / Benelux ACE/ACW31220
    CST-500CST 50031910Standard500CommScope® P3; Times Fiber T10; Alcatel / Benelux ACE/ACW31320
    CST-500-RCST 500-R31950Ratchet500CommScope® P3; Times Fiber T10; Alcatel / Benelux ACE/ACW31320
    CST-565TXCST 565TX31985Standard565CommScope® P3; Times Fiber TX31325
    CST-565-TX-RCST 565TX-R31990Ratchet565CommScope® P3; Times Fiber TX31325
    CST-625CST 62532010Standard625CommScope® P3; Times Fiber T10; Alcatel / Benelux ACE/ACW31420
    CST-625-PFCST 625PF36058Standard625/PFCommScope® Powerfeeder™; Times Fiber T10 22 Ohm36057
    CST-625-RCST 625-R32050Ratchet625CommScope® P3; Times Fiber T10; Alcatel / Benelux ACE/ACW31420
    CST-700TXCST 700TX33863Standard700CommScope® P3; Times Fiber TX33858
    CST-700TX-RCST 700TX-R33855Ratchet700CommScope® P3; Times Fiber TX33858
    CST-750CST 750 (this item)32110Standard750CommScope® P3; Times Fiber T10; Alcatel / Benelux ACE/ACW31520
    CST-750-RCST 750-R32150Ratchet750CommScope® P3; Times Fiber T10; Alcatel / Benelux ACE/ACW31520
    CST-840TXCST 840TX32180Standard840CommScope® P3; Times Fiber TX31531
    CBM-32185CST 840TX-R32185Ratchet840CommScope® P3; Times Fiber TX31531
    CST-875CST 87532210Standard875CommScope® P3; Times Fiber T10; Alcatel / Benelux ACE/ACW31620
    CST-875-RCST 875-R32250Ratchet875CommScope® P3; Times Fiber T10; Alcatel / Benelux ACE/ACW31620
    CST-21000CST 2100032320Standard1000CommScope® P3; Times Fiber T10; Alcatel / Benelux ACE/ACW31720
    CST-21000-RCST 21000-R32330Ratchet1000CommScope® P3; Times Fiber T10; Alcatel / Benelux ACE/ACW31720
    CST-21160TXCST 21160TX32380Standard1160CommScope® P3; Times Fiber TX32385
    CST-21160TX-RCST 21160TX-R32390Ratchet1160CommScope® P3; Times Fiber TX32385

    Replacement Parts:
    Part #Ripley #Description
    RIP-2911129111Guide sleeve, green
    RIP-3152031520Coring bit kit (CB 117K)
    RIP-CB-6014907Sheath cutting blade
    RIP-CST750-BIT-KIT31520 + 29111Coring bit kit + guide sleeve combo (kit by Tech Tool Supply)

    Accessories:
    Part #Ripley #Description
    RIP-3298532985Conductor strip stop - 3/4" (19.05 mm) strip length
    RIP-3298232982Conductor strip stop - 1-1/2" (38.1 mm) strip length
    Feature Sheet & Sizing Info CST Instruction Sheet
