Ripley Cablematic CST-21160TX Coring Tool

TTS PRICE: $131.99

STATUS: ON ORDER

Availability:

SHIP ESTIMATE 9-11 DAYS

PRODUCT CODE: CST-21160TX

QUANTITY:

PRODUCT DESCRIPTION

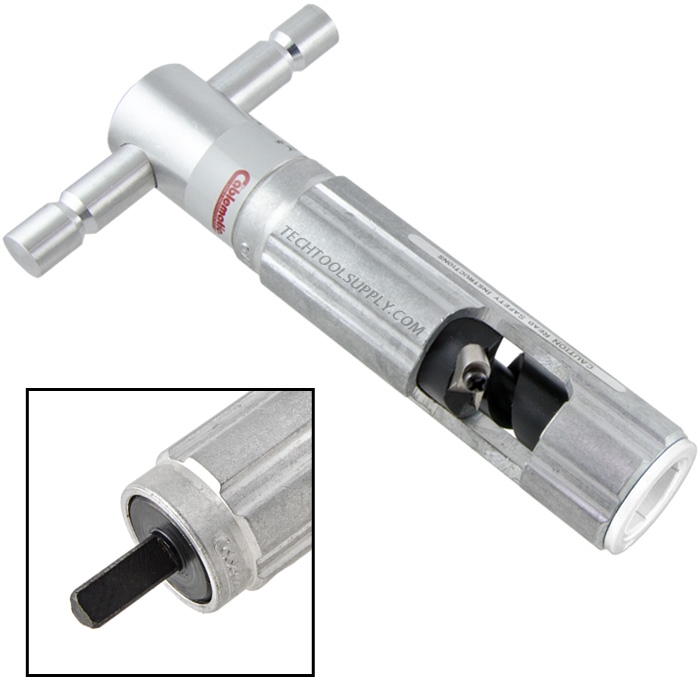

Ripley Cablematic CST 21160TX Coring & Stripping Tool - 1160 kcmil, Neutral Guide Sleeve

The CST-21160TX from Ripley is designed as a combination tool that cores dielectric foam, bevels the aluminum sheath and strips the polyethylene jacket of the trunk and distribution cable by hand or drill application. This tool is specifically designed to handle Times Fiber TX and CommScope® P3 1160 cable.

Features:

Combination tool cores and strips in one fast and precise operation

Heat treated sheath cutting blade produces a smooth beveled edge and can be replaced without the expense of replacing the entire coring bit

Spiral-fluted, heat-treated steel coring bit

Rugged, durable, all-metal construction

Color coded cable guide sleeves for easy cable size identification

Manual or drill operation; standard "T" handle with a built-in 3/8 inch (9.5mm) drill adapter

Accepts strip stops for strip lengths of 0.5" to 2" (12.7 to 50.8 mm)

Specifications:

Cable Size: 1160 kcmil (1160TX)

Cable Compatibility: CommScope® P3; Times Fiber TX

Handle: Standard "T" handle

Drill Adapter: Built-in 3/8" (9.5 mm)

Sleeve Color: Neutral

Cable Access: End

Length: 6.88" (175 mm)

Weight: 13 oz (369 g)

Model: 32380

Available Sizes:

Part #	Model	Ripley #	Handle	Cable Size (kcmil)	Cable Compatibility	Coring Bit Kit
CST-412	CST 412	31810	Standard	412	CommScope® P3; Times Fiber T10; Alcatel / Benelux ACE/ACW	31220
CBM-31850	CST 412-R	31850	Ratchet	412	CommScope® P3; Times Fiber T10; Alcatel / Benelux ACE/ACW	31220
CST-500	CST 500	31910	Standard	500	CommScope® P3; Times Fiber T10; Alcatel / Benelux ACE/ACW	31320
CST-500-R	CST 500-R	31950	Ratchet	500	CommScope® P3; Times Fiber T10; Alcatel / Benelux ACE/ACW	31320
CST-565TX	CST 565TX	31985	Standard	565	CommScope® P3; Times Fiber TX	31325
CST-565-TX-R	CST 565TX-R	31990	Ratchet	565	CommScope® P3; Times Fiber TX	31325
CST-625	CST 625	32010	Standard	625	CommScope® P3; Times Fiber T10; Alcatel / Benelux ACE/ACW	31420
CST-625-PF	CST 625PF	36058	Standard	625/PF	CommScope® Powerfeeder™; Times Fiber T10 22 Ohm	36057
CST-625-R	CST 625-R	32050	Ratchet	625	CommScope® P3; Times Fiber T10; Alcatel / Benelux ACE/ACW	31420
CST-700TX	CST 700TX	33863	Standard	700	CommScope® P3; Times Fiber TX	33858
CST-700TX-R	CST 700TX-R	33855	Ratchet	700	CommScope® P3; Times Fiber TX	33858
CST-750	CST 750	32110	Standard	750	CommScope® P3; Times Fiber T10; Alcatel / Benelux ACE/ACW	31520
CST-750-R	CST 750-R	32150	Ratchet	750	CommScope® P3; Times Fiber T10; Alcatel / Benelux ACE/ACW	31520
CST-840TX	CST 840TX	32180	Standard	840	CommScope® P3; Times Fiber TX	31531
CBM-32185	CST 840TX-R	32185	Ratchet	840	CommScope® P3; Times Fiber TX	31531
CST-875	CST 875	32210	Standard	875	CommScope® P3; Times Fiber T10; Alcatel / Benelux ACE/ACW	31620
CST-875-R	CST 875-R	32250	Ratchet	875	CommScope® P3; Times Fiber T10; Alcatel / Benelux ACE/ACW	31620
CST-21000	CST 21000	32320	Standard	1000	CommScope® P3; Times Fiber T10; Alcatel / Benelux ACE/ACW	31720
CST-21000-R	CST 21000-R	32330	Ratchet	1000	CommScope® P3; Times Fiber T10; Alcatel / Benelux ACE/ACW	31720
CST-21160TX	CST 21160TX (this item)	32380	Standard	1160	CommScope® P3; Times Fiber TX	32385
CST-21160TX-R	CST 21160TX-R	32390	Ratchet	1160	CommScope® P3; Times Fiber TX	32385
