New!  Ripley Cablematic CST-840TX-R Coring Tool - Ratchet

Ripley Cablematic CST-840TX-R Coring Tool - Ratchet


Alternative Views:
TTS PRICE: $159.09

STATUS: ON ORDER

Free Shipping

Availability:
SHIP ESTIMATE 9-11 DAYS

PRODUCT CODE: CBM-32185
QUANTITY:

PRODUCT DESCRIPTION


Ripley Cablematic CST 840TX-R Ratchet Coring & Stripping Tool - 840 kcmil, Green Guide Sleeve

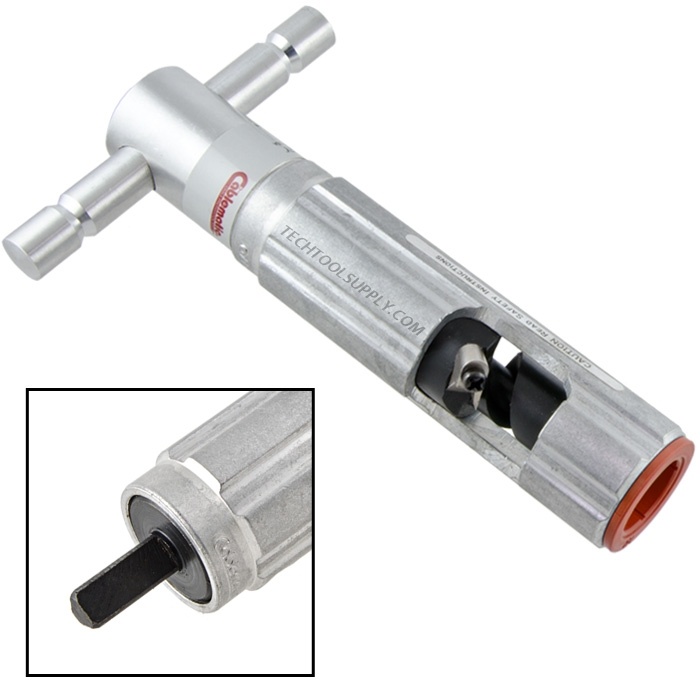

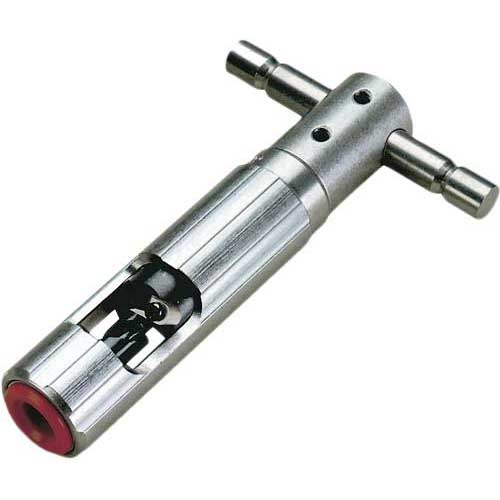

The CST-840TX-R (Ripley part 32185) is the ratchet version of the CST-840TX: it strips the jacket, bevels the aluminum sheath and cores the dielectric of 840 hardline coax in one operation. The ratchet T-handle gives more control in tight spots, and a separate 3/8" (9.5 mm) drill adapter lets you run it by hand or on a drill. For CommScope® P3, Times Fiber TX cable.

Features:
  • Combination tool strips the sheath and cores the dielectric in one precise operation
  • Ratchet "T" handle plus a separate 3/8" (9.5 mm) drill adapter for manual or drill use
  • Heat-treated sheath cutting blade leaves a smooth, beveled edge and can be replaced without replacing the coring bit
  • Spiral-fluted, heat-treated steel coring bit
  • Durable all-metal construction with color-coded guide sleeves
  • Accepts strip stops for strip lengths of 0.5" to 2" (12.7 to 50.8 mm)

    • Specifications:
  • Cable Size: 840 kcmil
  • Cable Compatibility: CommScope® P3; Times Fiber TX
  • Handle: Ratchet "T" handle
  • Drill Adapter: Separate 3/8" (9.5 mm)
  • Sleeve Color: Green
  • Cable Access: End
  • Length: 6.88" (175 mm)
  • Weight: 13 oz (369 g)
  • Model: 32185

    • Available Sizes:
    Part #ModelRipley #HandleCable Size (kcmil)Cable CompatibilityCoring Bit Kit
    CST-412CST 41231810Standard412CommScope® P3; Times Fiber T10; Alcatel / Benelux ACE/ACW31220
    CBM-31850CST 412-R31850Ratchet412CommScope® P3; Times Fiber T10; Alcatel / Benelux ACE/ACW31220
    CST-500CST 50031910Standard500CommScope® P3; Times Fiber T10; Alcatel / Benelux ACE/ACW31320
    CST-500-RCST 500-R31950Ratchet500CommScope® P3; Times Fiber T10; Alcatel / Benelux ACE/ACW31320
    CST-565TXCST 565TX31985Standard565CommScope® P3; Times Fiber TX31325
    CST-565-TX-RCST 565TX-R31990Ratchet565CommScope® P3; Times Fiber TX31325
    CST-625CST 62532010Standard625CommScope® P3; Times Fiber T10; Alcatel / Benelux ACE/ACW31420
    CST-625-PFCST 625PF36058Standard625/PFCommScope® Powerfeeder™; Times Fiber T10 22 Ohm36057
    CST-625-RCST 625-R32050Ratchet625CommScope® P3; Times Fiber T10; Alcatel / Benelux ACE/ACW31420
    CST-700TXCST 700TX33863Standard700CommScope® P3; Times Fiber TX33858
    CST-700TX-RCST 700TX-R33855Ratchet700CommScope® P3; Times Fiber TX33858
    CST-750CST 75032110Standard750CommScope® P3; Times Fiber T10; Alcatel / Benelux ACE/ACW31520
    CST-750-RCST 750-R32150Ratchet750CommScope® P3; Times Fiber T10; Alcatel / Benelux ACE/ACW31520
    CST-840TXCST 840TX32180Standard840CommScope® P3; Times Fiber TX31531
    CBM-32185CST 840TX-R (this item)32185Ratchet840CommScope® P3; Times Fiber TX31531
    CST-875CST 87532210Standard875CommScope® P3; Times Fiber T10; Alcatel / Benelux ACE/ACW31620
    CST-875-RCST 875-R32250Ratchet875CommScope® P3; Times Fiber T10; Alcatel / Benelux ACE/ACW31620
    CST-21000CST 2100032320Standard1000CommScope® P3; Times Fiber T10; Alcatel / Benelux ACE/ACW31720
    CST-21000-RCST 21000-R32330Ratchet1000CommScope® P3; Times Fiber T10; Alcatel / Benelux ACE/ACW31720
    CST-21160TXCST 21160TX32380Standard1160CommScope® P3; Times Fiber TX32385
    CST-21160TX-RCST 21160TX-R32390Ratchet1160CommScope® P3; Times Fiber TX32385

    Replacement Parts:
    Part #Ripley #Description

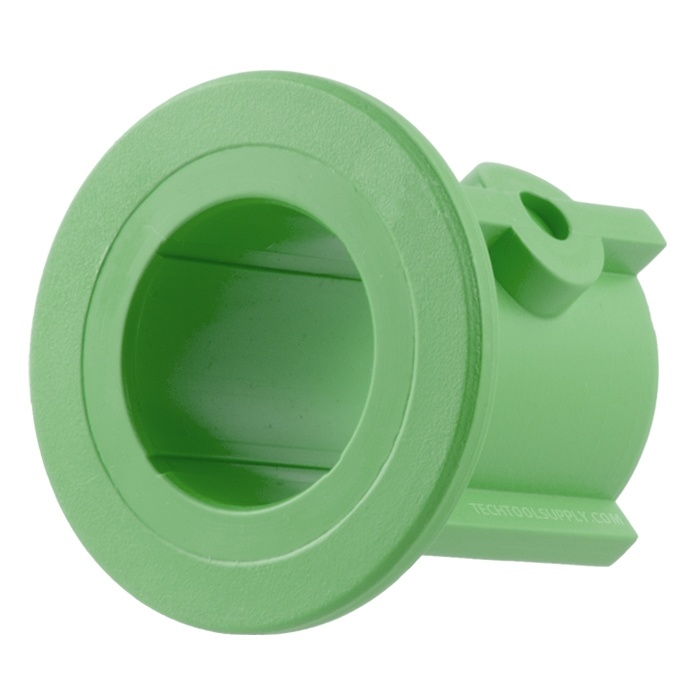

    RIP-2910929109Guide sleeve, green

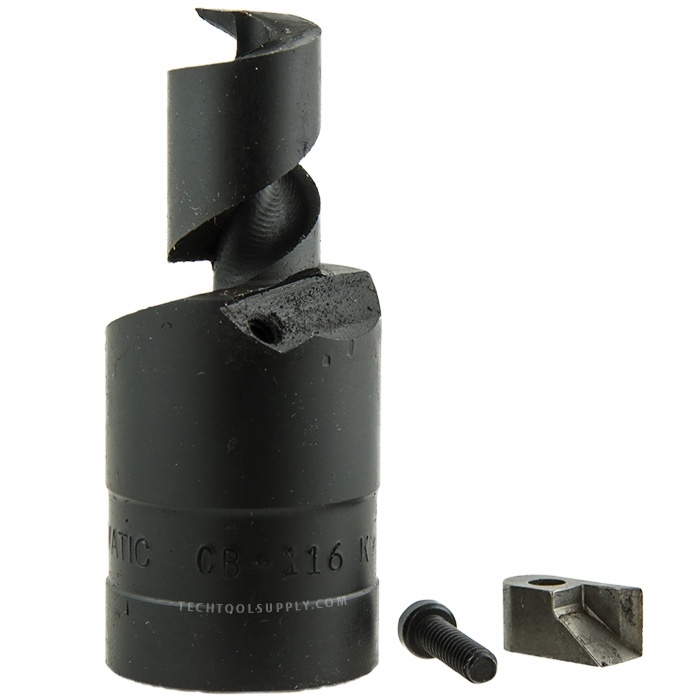

    RIP-3153131531Coring bit kit
    RIP-CB-6014907Sheath cutting blade
    RIP-3123031230Drill adapter, 3/8" chuck (412-840 kcmil)

    Accessories:
    Part #Ripley #Description
    RIP-3298532985Conductor strip stop - 3/4" (19.05 mm) strip length
    RIP-3298232982Conductor strip stop - 1-1/2" (38.1 mm) strip length
    CST Instruction Sheet
