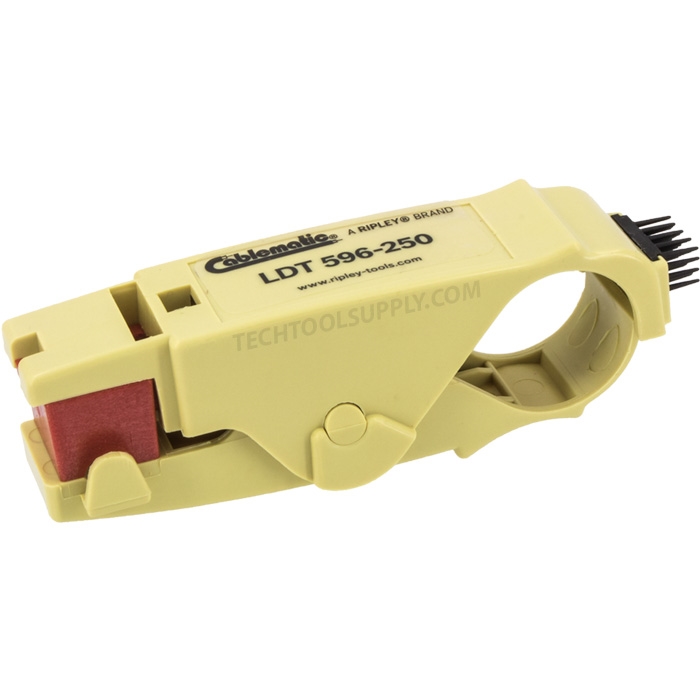

Ripley Cablematic LDT596-250 Lightweight Drop Trimmer - RG6/RG59 & N48 Coax
Ripley's LDT-596-250 is a lightweight and compact stripper that allows cable preparation of 59, 6 and N48 cable without any adjustment or blade cassette change out.
Features:
Built in strip stop for precise preparation every time
Lightweight, impact resistant "High Visibility" yellow polymer construction
Ergonomic, compact design for easy handling
Cassette ejector design for quick blade cassette replacement
LDT can be supplied with other blade cassettes - see the chart below
Blade cassettes color-coded and marked with cable series type for easy identification
Includes:
1 x Red 59/6/N48 blade cassette (installed)
Specifications:
Note: Tool is not intended for Plenum Series Cable Construction
Cable Types: 59/6, N48
Precisely exposes the center conductor by 5/16" (7.93mm) and removes the proper length of jacket at 1/4" (6.35mm)
Performs 3500+ preparations under normal use
Cassette Color: Red
Material: Lightweight polymer
Length: 4" (102 mm)
Weight: 0.8 oz (23 g)
Model: 38830
Available Models:
| Part # | Model | Ripley # | Cable Type | Cassette Color | Replacement Cassette |
|---|
| LDT-596-250 | LDT596-250 (this item) | R38830 | 59/6 N48 | Red | 35241 |
| LDT-MINI | LDT MINI | R38833 | N35 Mini 22-24 AWG | White | 38587 |
Replacement Parts:
| Part # | Ripley # | Description |
|---|
| RC596250 | 35241 | Red blade cassettes (2 pack) |
| - | 42679 | Replacement brushes (set of 5) |
Feature Sheet & Sizing Info
LDT Instruction Sheet
