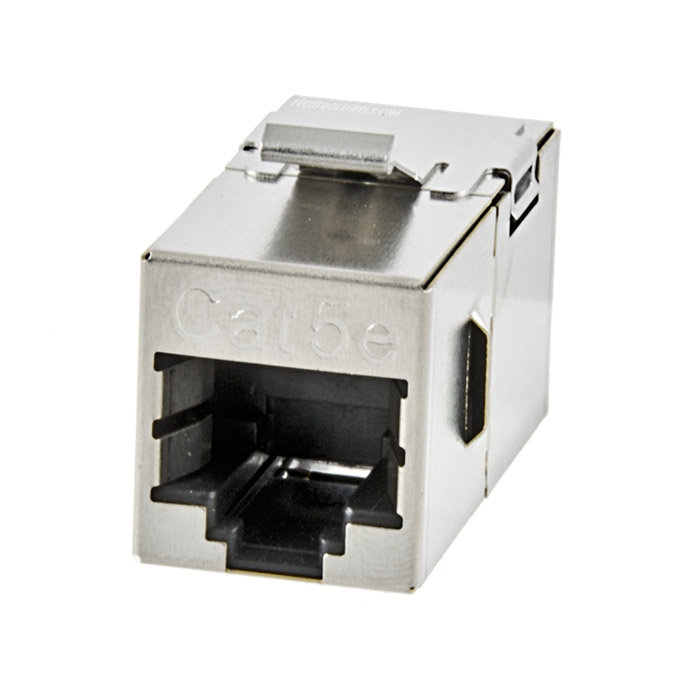

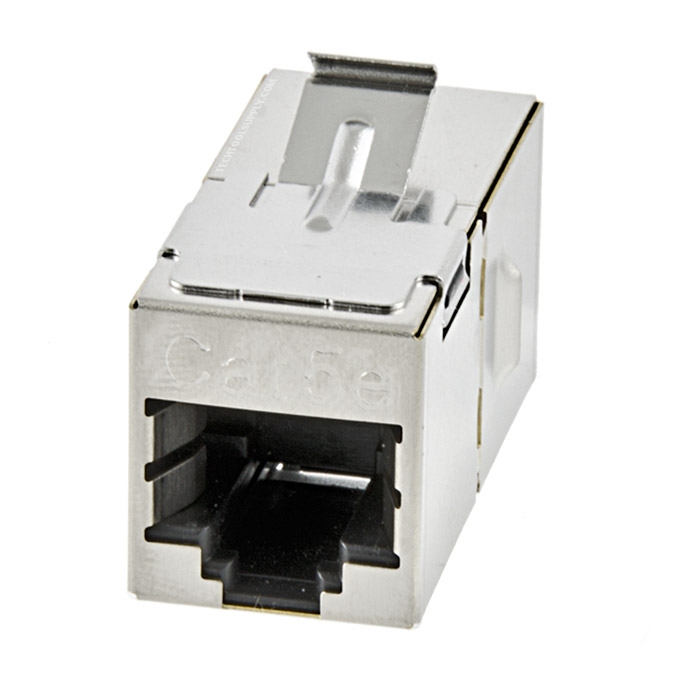

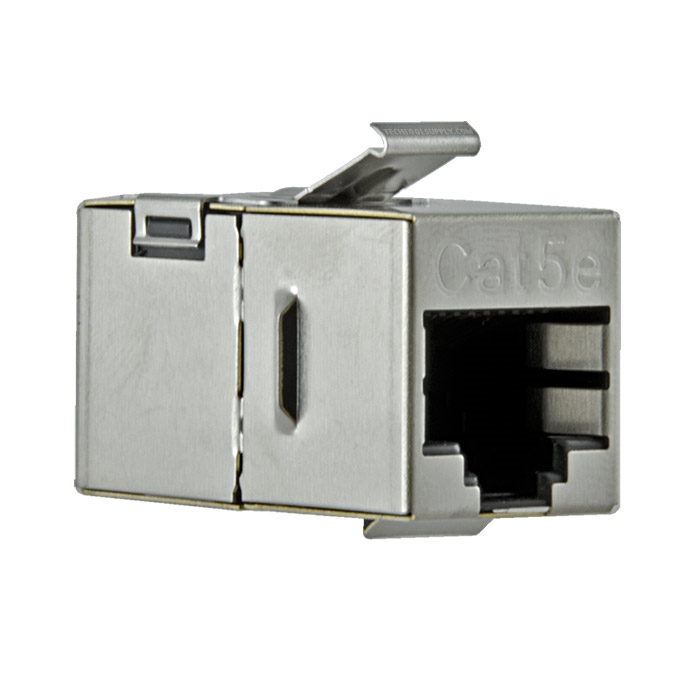

Shielded Quickport Cat 5e Coupler Female to Female
Shielded Quickport Cat 5e Coupler Female to Female




Alternative Views:


TTS PRICE: $7.21

STATUS:  IN STOCK



Availability:
Normally Ships Same Day

PRODUCT CODE: TAL-RJ45C-SH5
QUANTITY:

PRODUCT DESCRIPTION


The Shielded Quickport Cat 5e coupler can mount directly to a standard faceplate and also allows you to connect CAT5e cables (shielded/unshielded) directly where needed. No need to wire in jacks and no punch tool required. Simple and fast, better aesthetics, more professional appearing installs. If you need to extend a cable for length on really long runs, these are your best bet!

Features:
  • Category identification on the front side of the panel
  • Conductor color code according to T568B and T568A
  • Can be used with or without the keystone latch
  • Enables much longer cables to be made from shorter cables
  • Great for small or large multiple LAN workstation installations (temporary or permanent)
  • Truly CAT5e compliant, gold plated terminals are soldered to the internal PCB
  • PCB features serpentine traces on all pairs achieving equalized track lengths for high-speed signals

  • Specifications:
  • Quantity: 1
  • Category: 5e
  • Material: Phosphor bronze with nickel plated casing, phosphor bronze with 15μ’’ gold plated inside
  • Product Standard: T-568A transmission standard, with T568A andT568B line sequence
  • Physical Properties: Plug and socket withstand 750+ plug/unplug
  • Electrical Properties: Working voltage: 125 V, pressure: 750 V
  • Use/Storage Environment: Temperature: -40 ~ +70 °C; humidity: ≤ 85% (temperature 85 ± 3°C)
