Vertical Cable CAT6A Keystone Jack

Home > Categories > Installation Supplies > Wall Plates > Keystone Inserts > CAT6 - RJ45 >

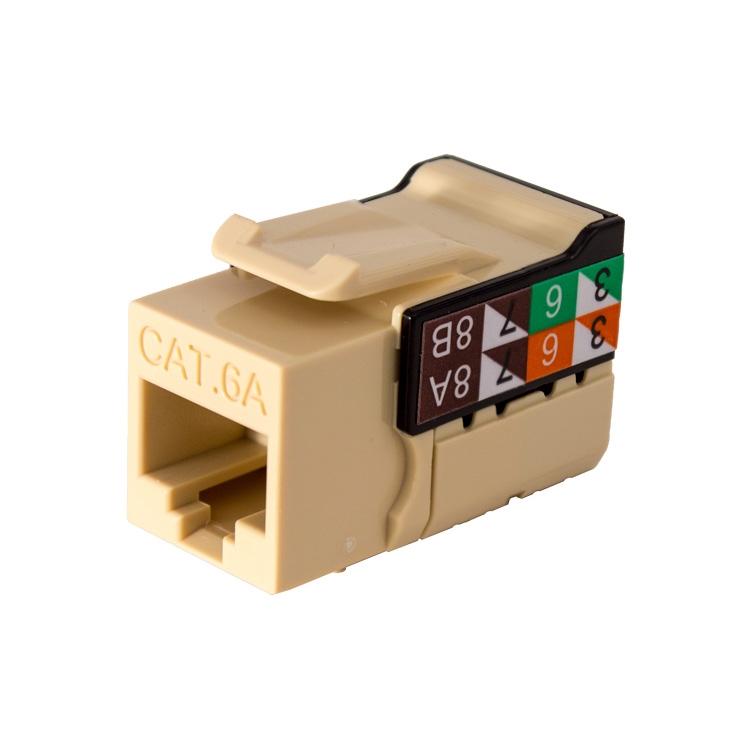

Vertical Cable CAT6A Keystone Jack - Ivory

TTS PRICE: $4.19

STATUS: ON ORDER

Availability:

SHIP ESTIMATE 1-4 DAYS

PRODUCT CODE: VC-353-V2812-C6AIV

QUANTITY:

PRODUCT DESCRIPTION

Vertical Cable CAT6A Jacks are compatible with all Vertical Cable CAT6A cables. Additionally, all CAT6A Jacks are compatible with the I-Punch Tool.

Features:

8 Conductor solder-plated phosphor bronze 110-IDC contacts

Improved PCB Design and IDC Geometry provide superior performance

TIA/EIA 568C.2, IEEE802.3an for 10GBase-T Requirements

ISO 11801, EN 50173-1 Class EA Specification

UL94V-0 Thermoplastic ABS Housing

UL Listed, ETL Listed, RoHS Compliant

Specifications :

Quantity: 1

Color: Ivory

Dimensions: (mm) 19.75H x 17W x 31.1D

Housing: High-Impact Thermoplastic (UL 94 V-0)

DC Housing: Polycarbonate (UL 94 V-0)

IDC 110 Contacts: Solder-Plated Phosphor Bronze

Nose Contacts: 50μ of gold plating over nickel plating

Operating Life: Minimum 750 insertions

Compatibility: 22 to 26 AWG Solid

PBC: FR-4 1.6mm thickness

Cap: High-Impact Thermoplastic (UL 94 V-0)

Applications:

10GBase-T Ethernet

1000Base-Tx Gigabit Ethernet

100Base-Tx Fast Ethernet
