Simply45 Cat6/6a Pro Pass Through Connectors - 100pc

Simply45 Cat6/6a Pro Pass Through Connectors - 100pc


Alternative Views:


TTS PRICE: $72.35
Sale Price: $65.11

STATUS:  IN STOCK

Free Shipping

Availability:
Normally Ships Same Day

PRODUCT CODE: S45-1700P
QUANTITY:

PRODUCT DESCRIPTION

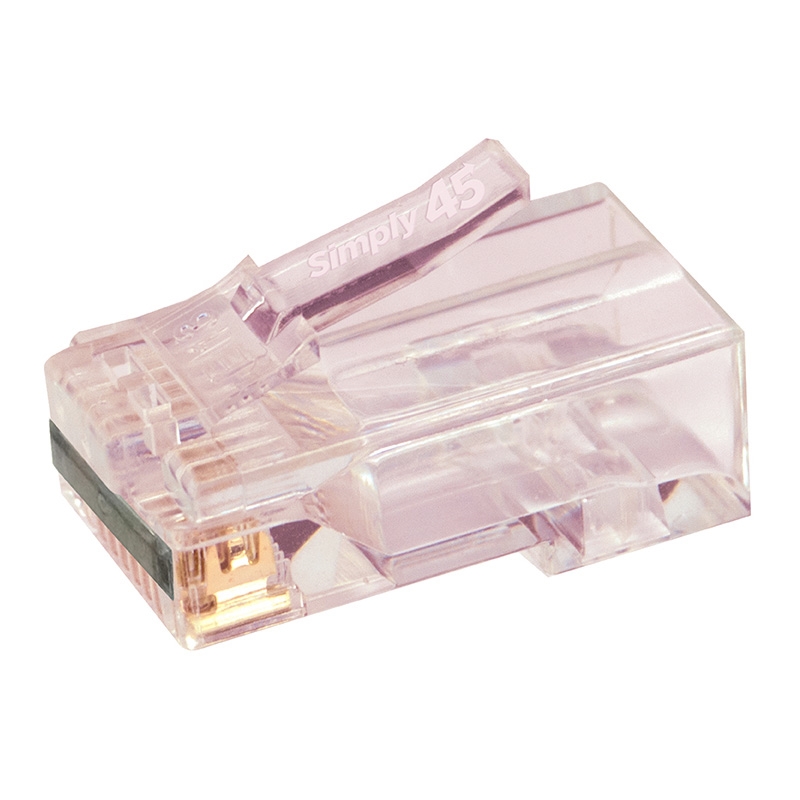

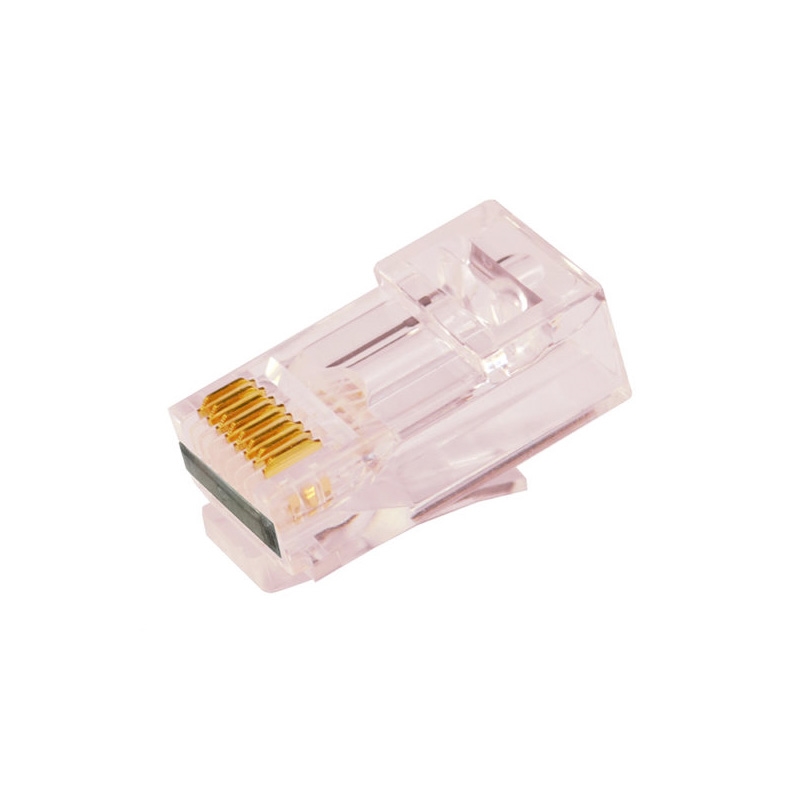

Simply45® is the industry-leading brand for RJ45 modular plug innovation and performance solutions; introduce their ProSeries Pass Through RJ45 Modular Plug, S45-1700P for unshielded LAN cables. This exclusive patented pass through RJ45 modular plug is a historic breakthrough in “pass-through” RJ45 reliability and performance.

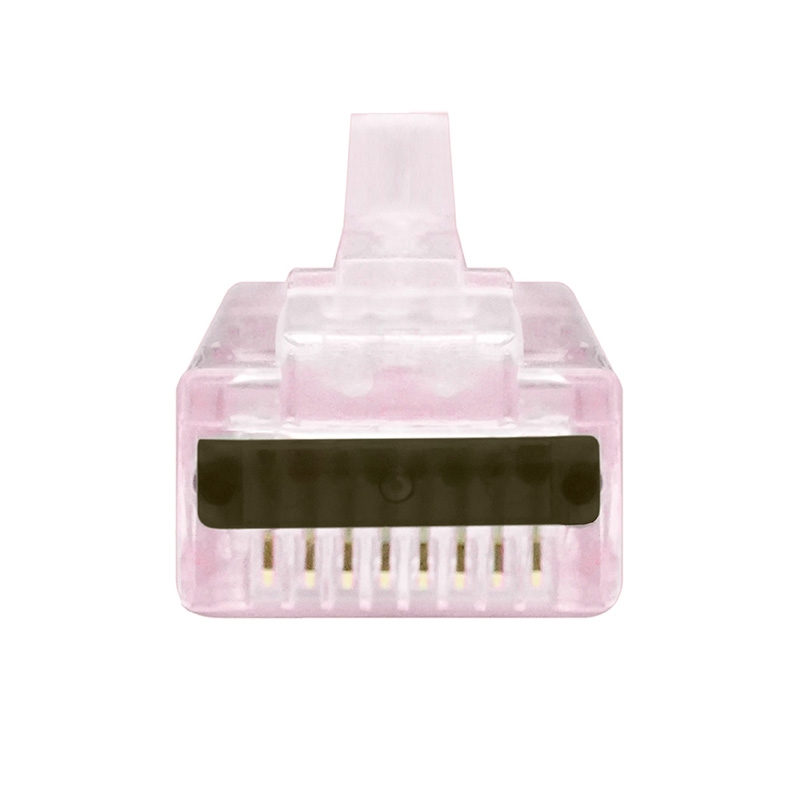

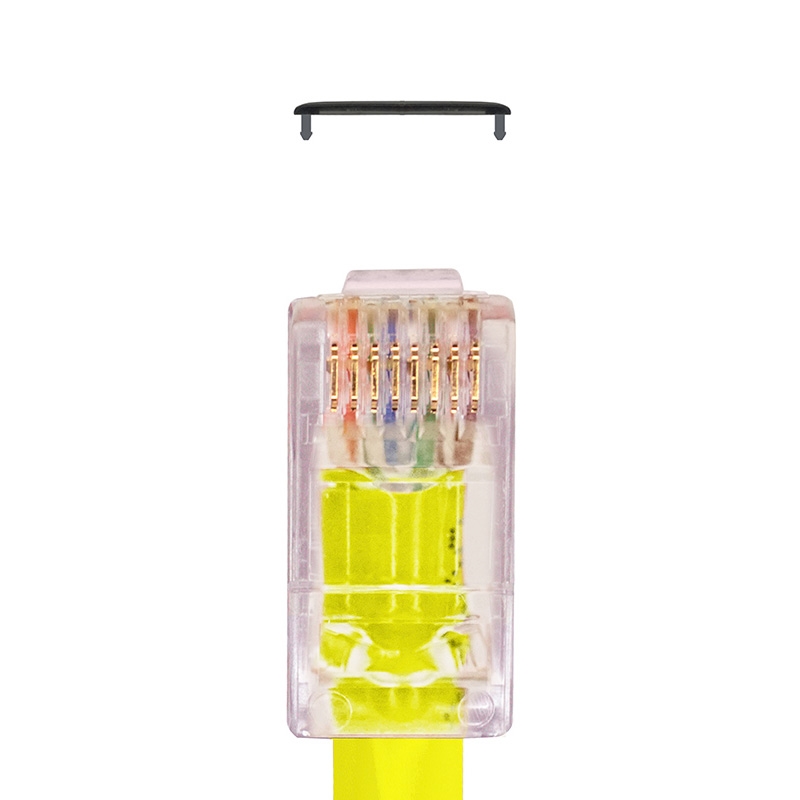

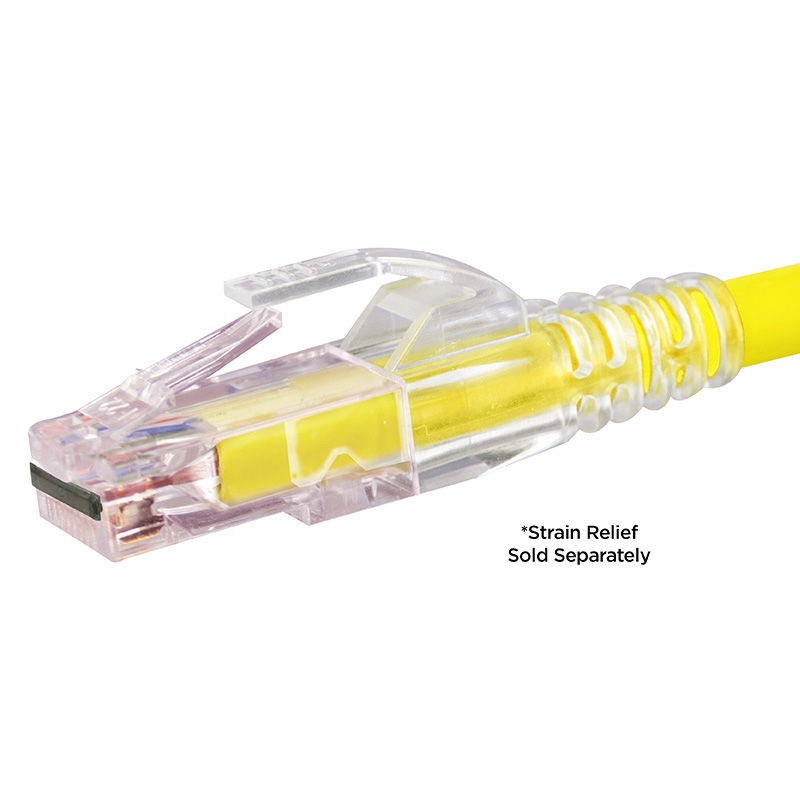

The Simply45® ProSeries introduces the S45-1700P, exclusive Cap45™ (PATENT 10,811,831 B1). Cap45™ is an isolation cap/bar that snaps onto the front of the pass-through RJ45 plug after termination, covering the exposed wire ends. Cap45™ prevents electrical shorting in the RJ45 socket due to improperly trimmed wires or in device sockets that may not be 100% compliant. With Cap45™, any electrical risks associated with exposed wire ends are now completely eliminated.

Features:
  • Single Piece Design
  • High/Low Staggered Wire Insert
  • 3 Prong Pin Design with 50µ of True 24ct Gold Plating
  • Improved Crosstalk Performance
  • Commercial Rated
  • Color Tinted RJ45 Modular Plugs

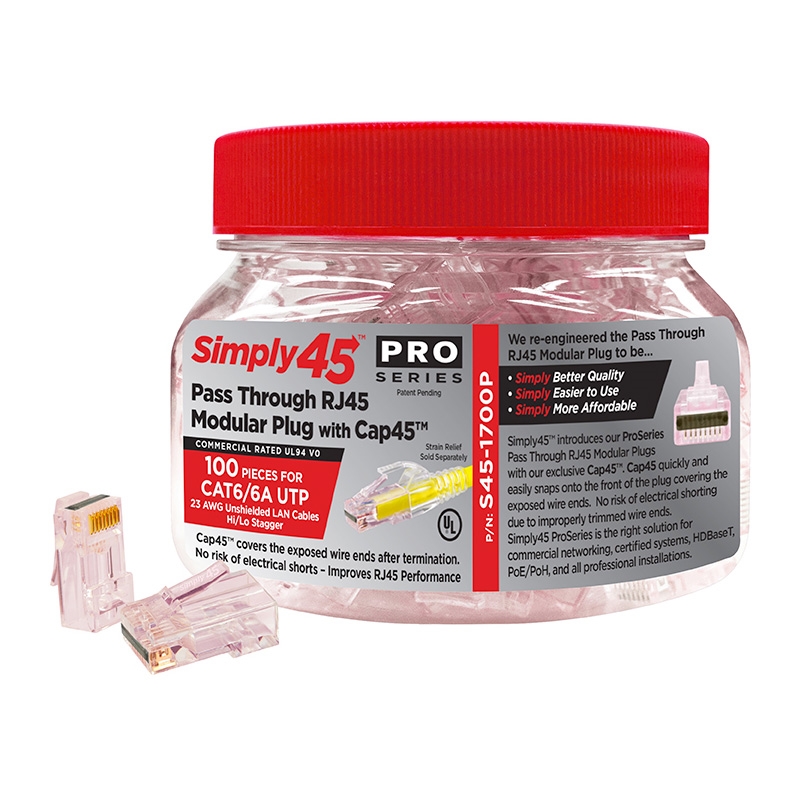

  • Wide Mouth Jar for Easy Hand Access
  • Color-Coded Jar Cap
  • UL Listed
  • PoE/PoH Rated
  • Compliant with Industry Standards
  • Lifetime Warranty

  • Specifications:
  • Performance: Meets or Exceeds ANSI/TIA 568-D.2; ISO/IEC 11801 Class D; ANSI/TIA 1096-A; IEC 60603-7
  • Wire Cond(s) OD: 23AWG: 1.05mm-1.20mm (0.041”-0.047”)
  • Max LAN Cable OD: 7.4mm (0.291”)
  • Supports PoE/PoH: Yes
  • Cable Fire Resistance Ratings: Commericial Rated, CMP, CMR, CM, CMX, LSZH up to B2ca EuroClass
  • Flame Autoextinguish: UL94 V0, IEC 60695-11-10
  • Contact Material: Phosphor Bronze - .012" thick
  • Contact Plating: Min 50 Micro-Inch Pure Gold - 24 Carat Hard Gold Plate in contact area over 100 Micro-Inch Min Nickel Plating. Exceeds ANSI/TIA-1096-A specifications (formerly FCC Part 68)
  • Plug Material: Polycarbonate
  • Plug Tolerances and Dimensions: Meets ANSI/TIA-1096-A specifications (formerly FCC Part 68)
  • Conductor Type(s): Solid and Stranded
  • Operating Temperature: -40º C to +70º C
  • Insertion/Extraction Life: 2000 Minimum Cycles
  • Contact Resistance: 20 Milli-Ohms max
  • Current/Voltage: 30 VAC/42 VDC at 1.5 Amps
  • Compliance: UL Listed, RoHS, FCC, NEC
