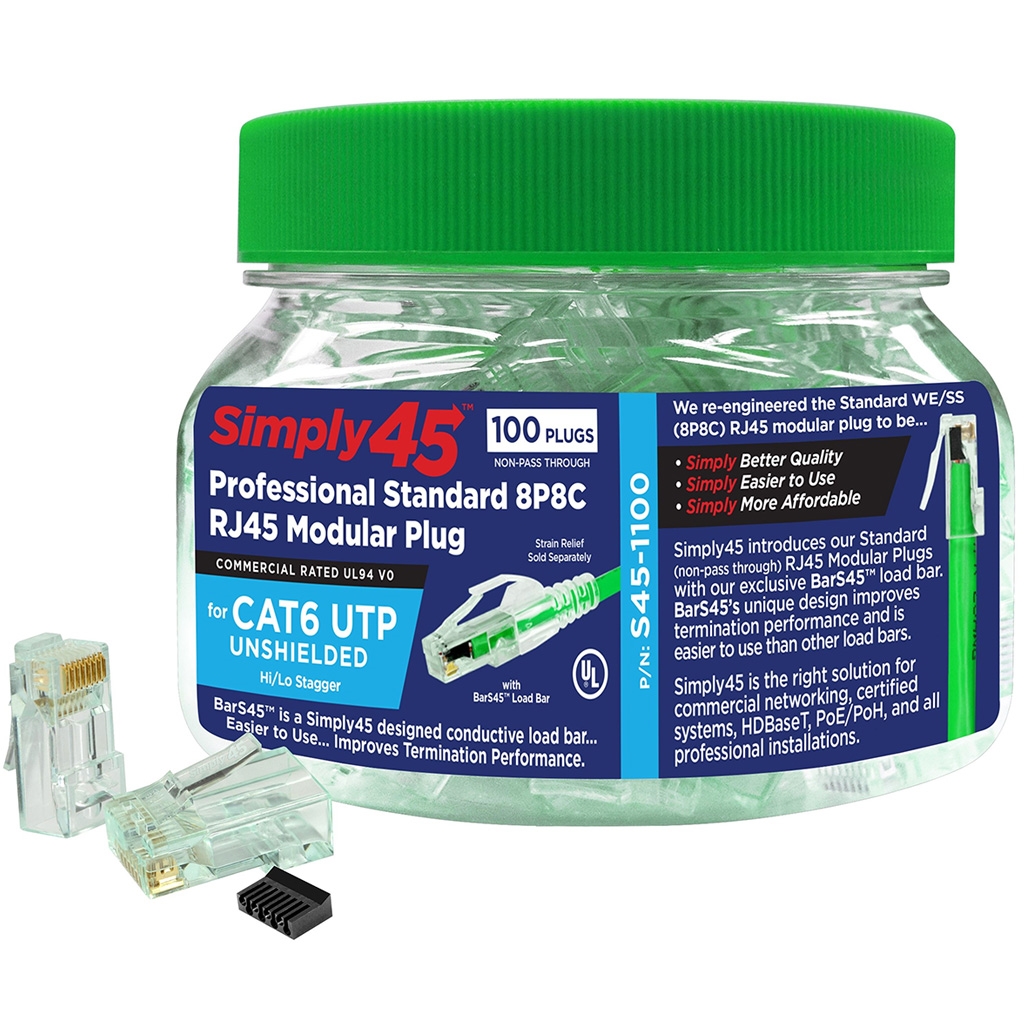

Simply45 Unshielded Cat6 Connectors - 100pc Jar

Simply45 Unshielded Cat6 Connectors - 100pc Jar




Alternative Views:


TTS PRICE: $46.25

STATUS:  IN STOCK


Availability:
Normally Ships Same Day

PRODUCT CODE: S45-1100
QUANTITY:

PRODUCT DESCRIPTION

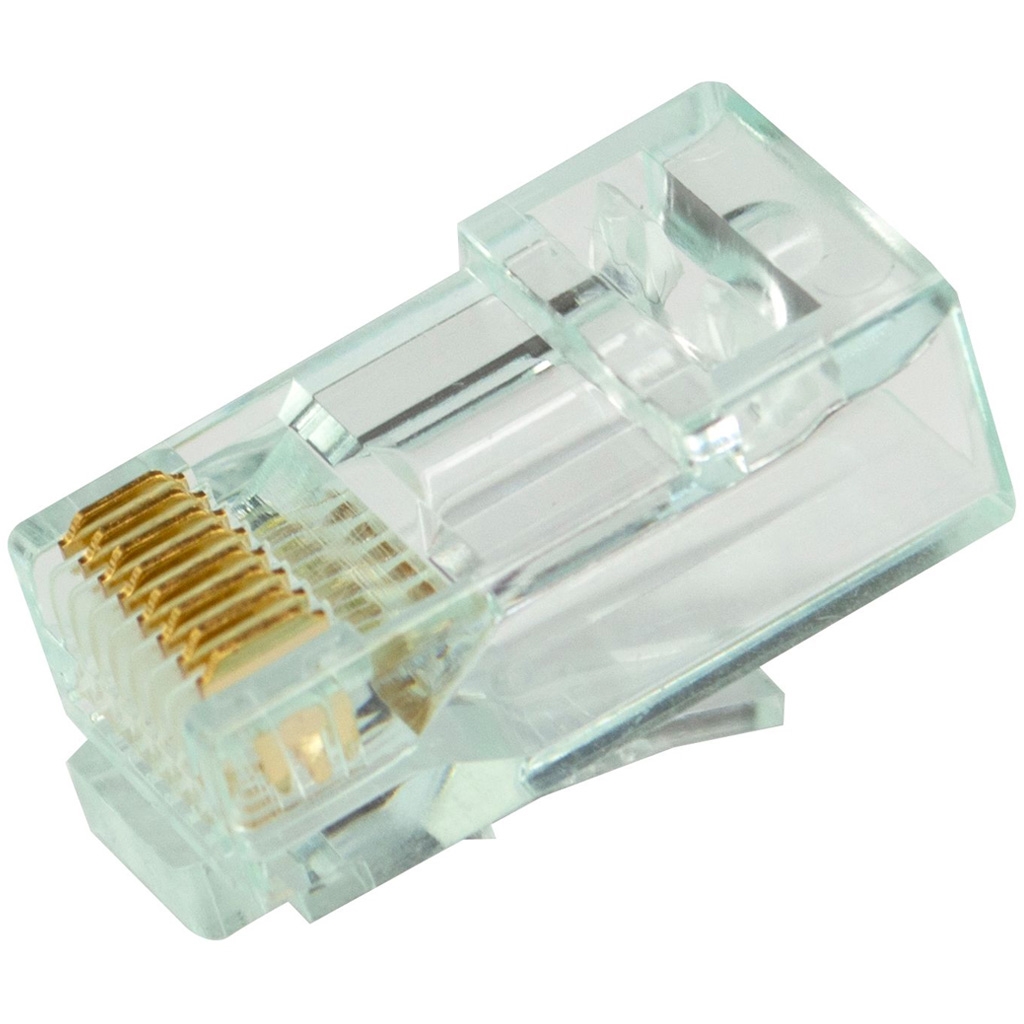

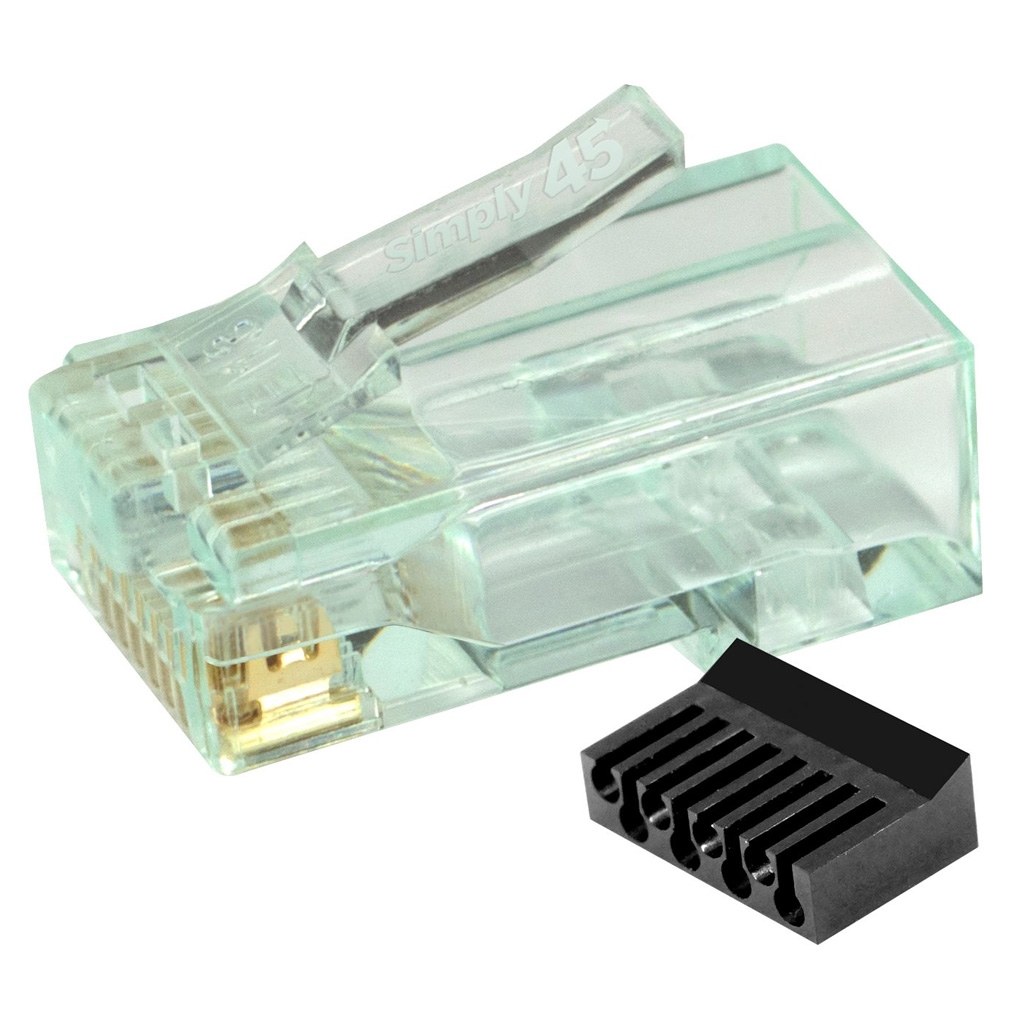

Simply45 is the industry-leading brand for RJ45 modular plug innovation and performance solutions. The S45-1100 Standard WE/SS (8P8C) RJ45 modular plugs incorporate the innovative Bar45 for the easiest load bar ever for use with unshielded LAN cables such as Cat6 UTP and Cat6a UTP.

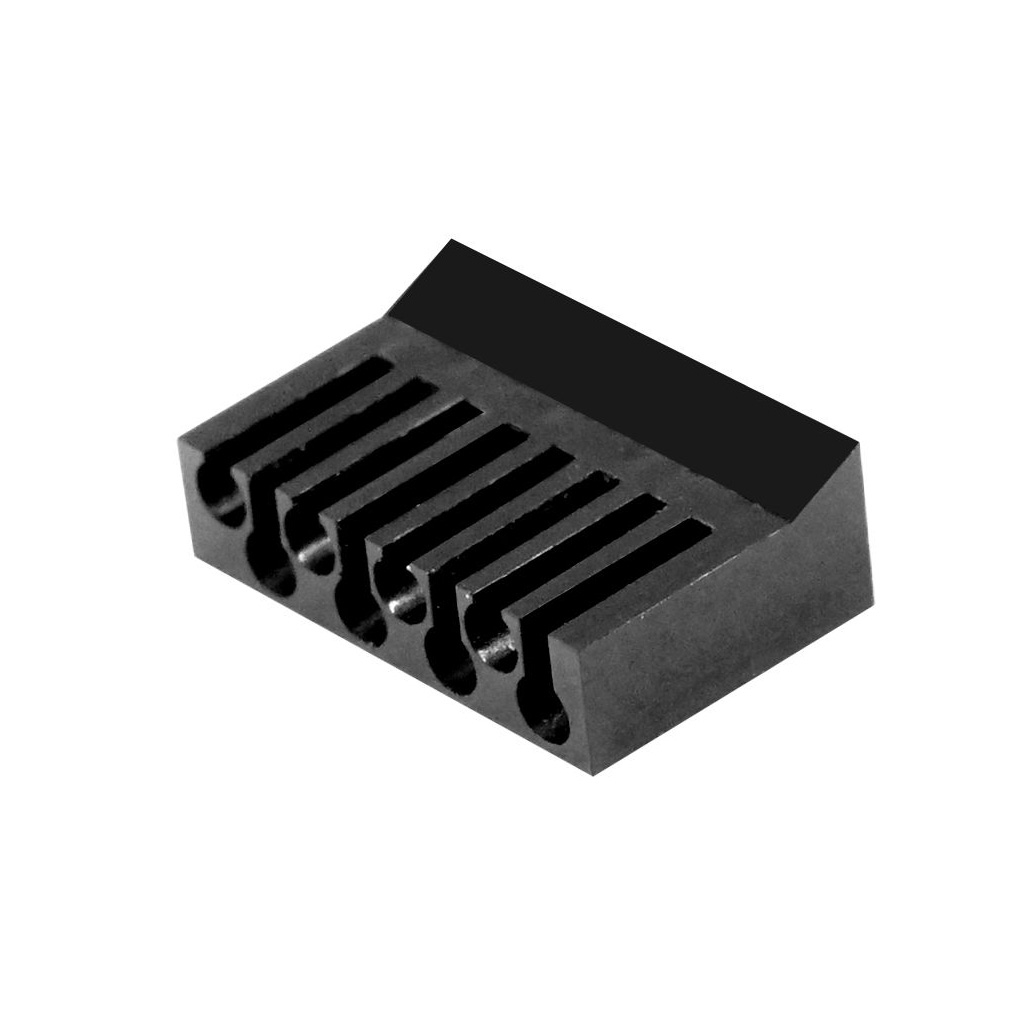

The Bar45 for the S45-1100 does several things:

1 Simply45 Bar45 for S45-1100 is made of materials that provide better signal isolation and substantially reduces the effects of cross-talk inside the RJ45 mod plug. Bar45 absorbs and limits both near-end crosstalk (NEXT) and far-end cross-talk (FEXT), thereby improving cable performance.

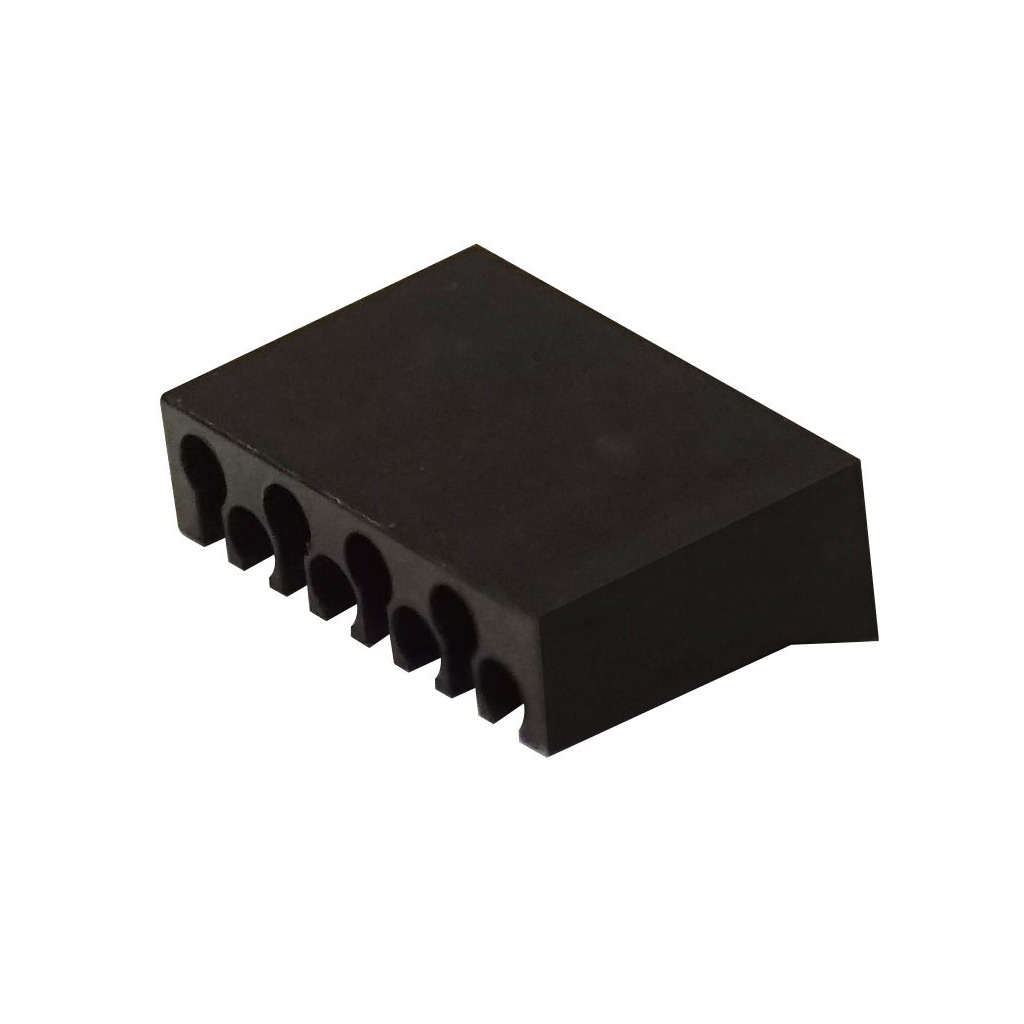

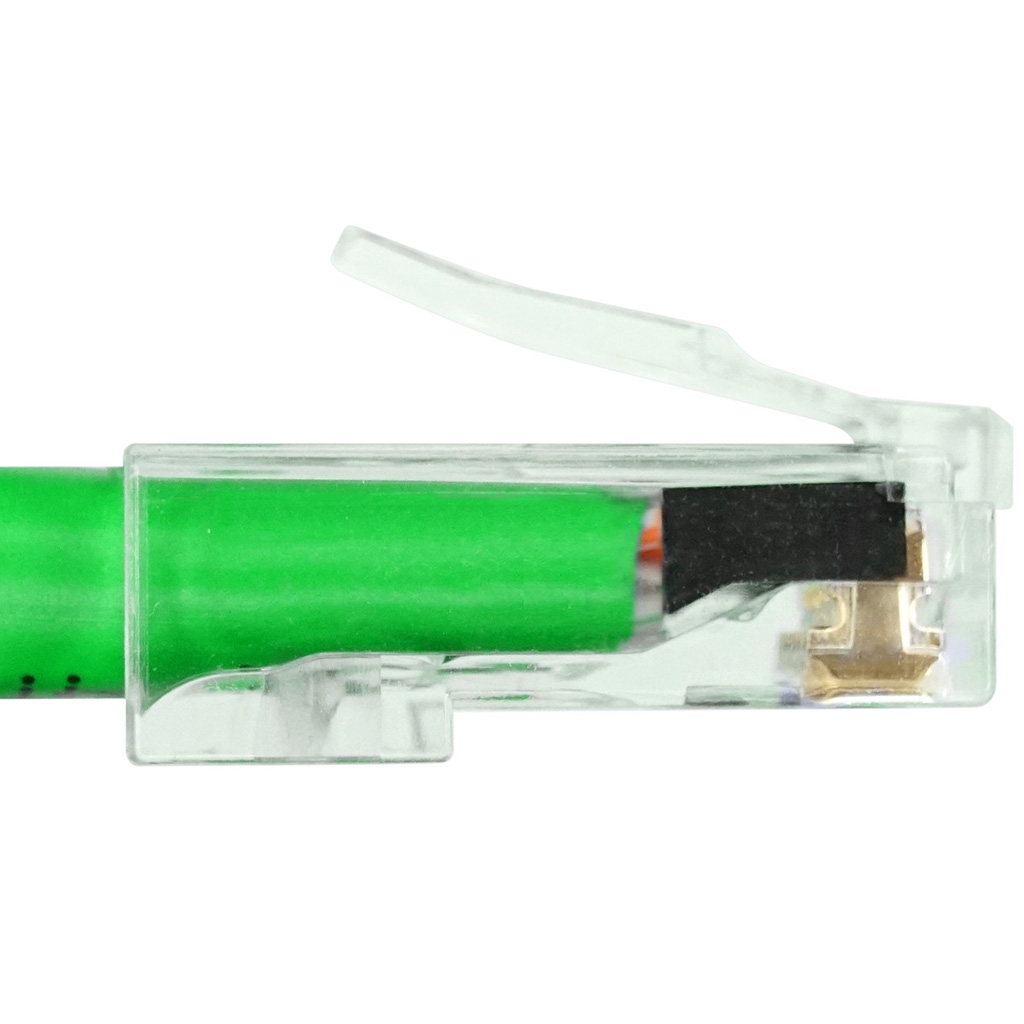

2 The Simply45 Bar45 for S45-1100 innovative design reduces the length of untwisted wires inside the plug improving twisted pair signal performance and substantially reduces the introduction of NEXT into the signal. The S45-1100 Bar45 uses a Hi/Lo stagger design that is inserted into the plug until it sits directly on top of the plug pins. The exposed wires are then trimmed flush to the plug before inserting. This significantly reduces the amount of untwisted wires inside the RJ45 plug. No other load bar or RJ45 plug design can improve performance at the level of the Simply45 S45-1100 Standard RJ45 modular plug.

Features:

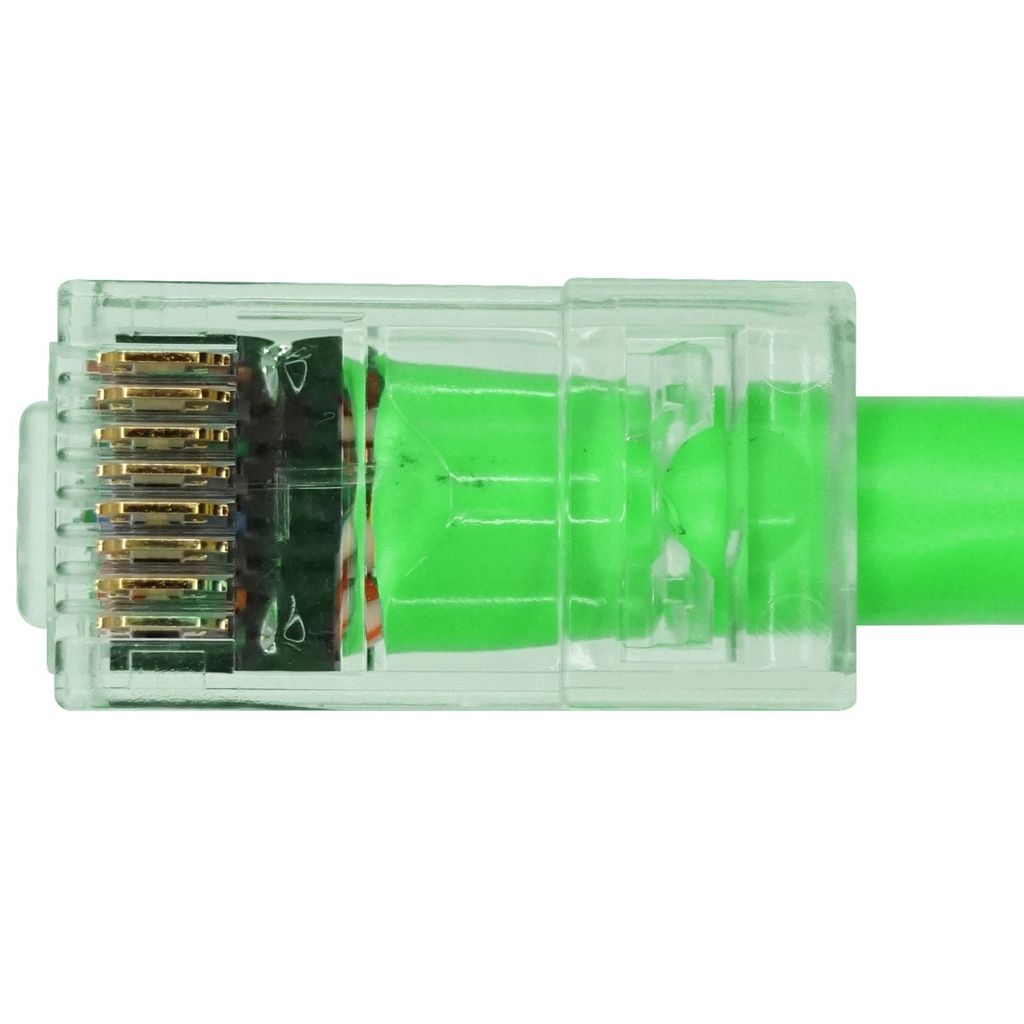

  • Bar45 combined with Simply45s internal RJ45 design innovations allows the LAN cable itself to be inserted further into the plug, reducing the length of untwisted wires
  • 3 Prong Pin Design with 50 of True 24ct Gold Plating
  • Ideal for Solid and Stranded LAN Cables
  • Improved Crosstalk Performance
  • Commercial Rated
  • Color Tinted RJ45 Modular Plugs
  • Wide Mouth Jar for Easy Hand Access
  • Color-Coded Jar Caps
  • UL Listed
  • PoE/PoH Rated
  • Compliant with Industry Standards
  • Lifetime Warranty

  • Specifications:
  • Quantity: 100 connectors
  • Performance: Meets or Exceeds ANSI/TIA 568-D.2; ISO/IEC 11801 Class D; ANSI/TIA 1096-A; IEC 60603-7
  • Wire Cond(s) OD: 23 AWG : 1.05mm - 1.17mm (0.041 - 0.046)
  • Max LAN Cable OD: 7.4mm (0.291)
  • Supports PoE/PoH: Yes
  • Cable Fire Resistance Ratings: Commercial Rated, CMP, CMR, CM, CMX, LSZH up to B2ca EuroClass
  • Flame Autoextinguish: UL94 V0, IEC 60695-11-10
  • Contact Material: Phosphor Bronze - .012" thick
  • Contact Plating: Min 50 Micro-Inch Pure Gold - 24 Carat Hard Gold Plate in contact area over 100 Micro-Inch Min Nickel Plating. Exceeds ANSI/TIA-1096-A specifications (formerly FCC Part 68)
  • Plug Material: Polycarbonate
  • Plug Tolerances and Dimensions: Meets ANSI/TIA-1096-A specifications (formerly FCC Part 68)
  • Conductor Type(s): Solid and Stranded
  • Operating Temperature: -40 C to +70 C
  • Insertion/Extraction Life: 2000 Minimum Cycles
  • Contact Resistance: 20 Milli-Ohms max
  • Current/Voltage: 30 VAC/42 VDC at 1.5 Amps
  • Compliance: UL Listed, RoHS, FCC, NEC
