Single Port Tap / Directional Coupler

Home > Categories > RF Distribution > Taps > Cable TV - Off-Air > 1-Port >

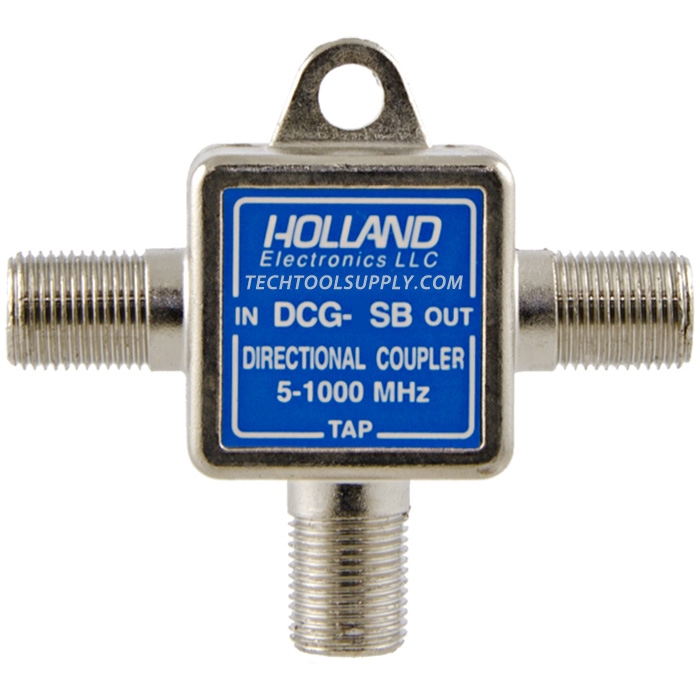

Single Port Tap / Directional Coupler - 16dB

TTS PRICE: $3.79

STATUS: ON ORDER

Availability:

Normally Ships Same Day

PRODUCT CODE: DCG-16SB

QUANTITY:

PRODUCT DESCRIPTION

The DCG-SB Series of high quality directional couplers have been developed to support the latest advancements in distribution requirements. High return loss and low insertion loss make the DCG-SB Series ideal for any application. Advanced PCB design assures consistent performance.

Features:

PCB Design

High Up-Stream Isolation (Tap-Out)

High Return Loss

Precision Machined Threads

Specifications:

Tap Value: 16 dB

1 GHz Bandwidth

130 dB RFI Shielding (Solder-back)

Insertion Loss (dB) (Max) (In-Out):

5 - 47: .8

48 - 450: .8

451 - 750: 1

751 - 1000: 1.2

Isolation (dB) (Out - Tap):

5 - 47: 35

48 - 450: 30

451 - 750: 28

751 - 1000: 23
