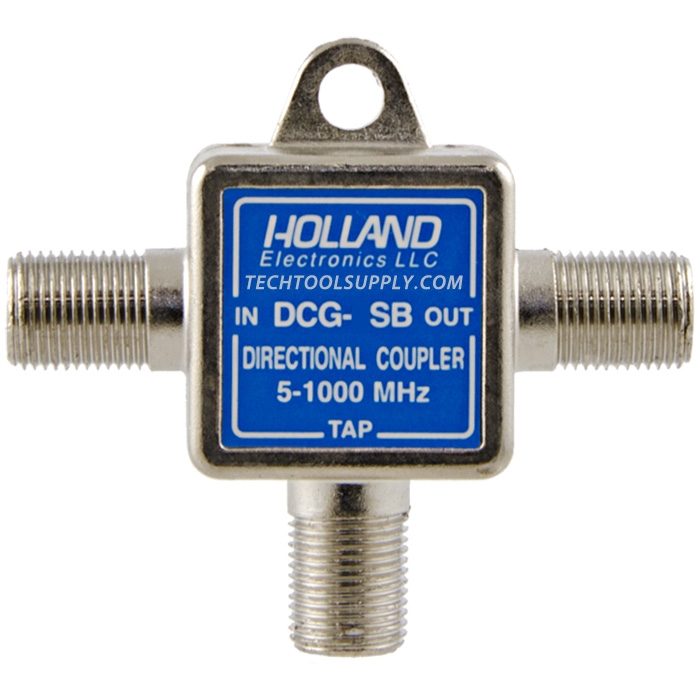

Single Port Tap / Directional Coupler - 6dB

Single Port Tap / Directional Coupler - 6dB




TTS PRICE: $2.19

STATUS: ON ORDER


Availability:
Normally Ships Same Day

PRODUCT CODE: DCG-6SB
QUANTITY:

PRODUCT DESCRIPTION


The DCG-SB Series of high quality directional couplers have been developed to support the latest advancements in distribution requirements. High return loss and low insertion loss make the DCG-SB Series ideal for any application. Advanced PCB design assures consistent performance.

Features:
  • PCB Design
  • High Up-Stream Isolation (Tap-Out)
  • High Return Loss
  • Precision Machined Threads

  • Specifications:
  • Tap Value: 6 dB
  • 1 GHz Bandwidth
  • 130 dB RFI Shielding (Solder-back)

  • Insertion Loss (dB) (Max) (In-Out):
  • 5 - 47: 2
  • 48 - 450: 2
  • 451 - 750: 2.3
  • 751 - 1000: 2.5

  • Isolation (dB) (Out - Tap):
  • 5 - 47: 25
  • 48 - 450: 25
  • 451 - 750: 25
  • 751 - 1000: 25
