Ripley UtilityTool US15 PRO Large Format Slitting Tool - 0.39"-2.36" (10-60 mm), Inch Scale

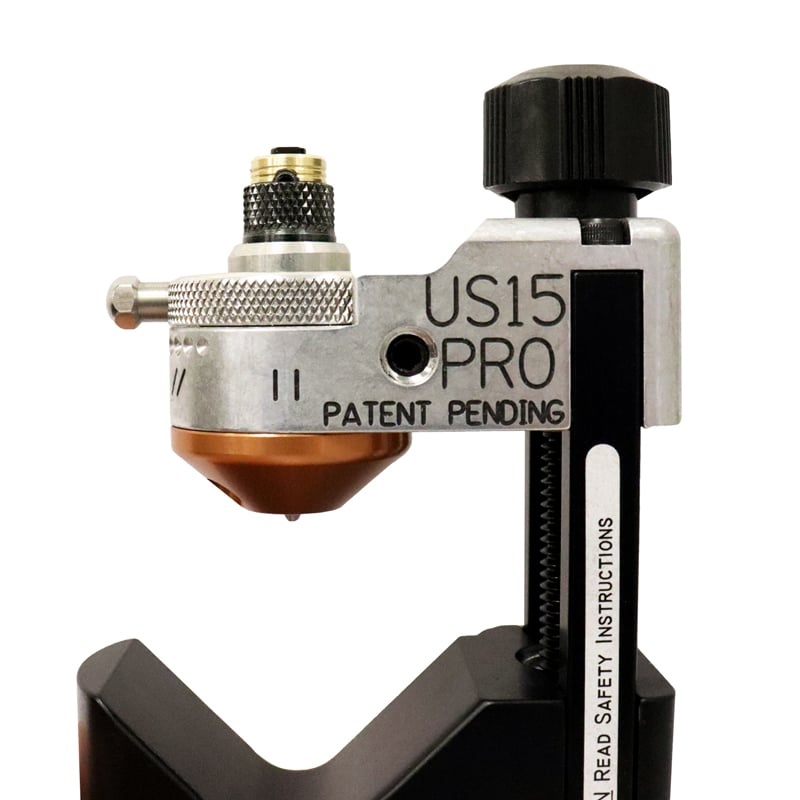

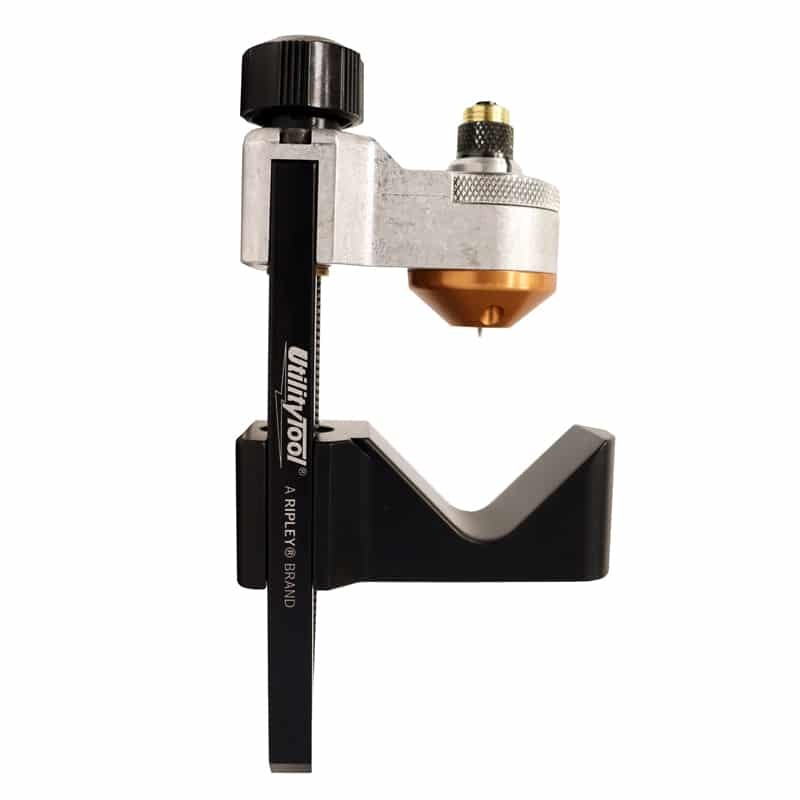

The UtilityTool US15 PRO is the heavier-duty version of the US15, built to remove outer sheathing and primary insulation on low and medium voltage power cable. It makes slit, ring and spiral cuts on 10 to 60 mm cable with a high-grade steel blade, and the deeper 5.5 mm blade setting takes on thicker insulation. It handles PE, XLPE, PVC, EPR, silicone rubber, EPDM, TGGT and Sealpic®. Blade depth adjusts up to 0.216in (5.5 mm) in 0.002in (0.05 mm) steps on an inch scale. Also available with a metric scale: US15-7010. Pair it with the US15-7020 Jacket Lift Tool.
Features:
Slit, ring and spiral cuts on 0.39-2.36in (10-60 mm) cable
PE, XLPE, PVC, EPR, silicone rubber, EPDM, TGGT and Sealpic® insulation
Blade depth up to 0.216in (5.5 mm) in 0.002in increments - inch scale

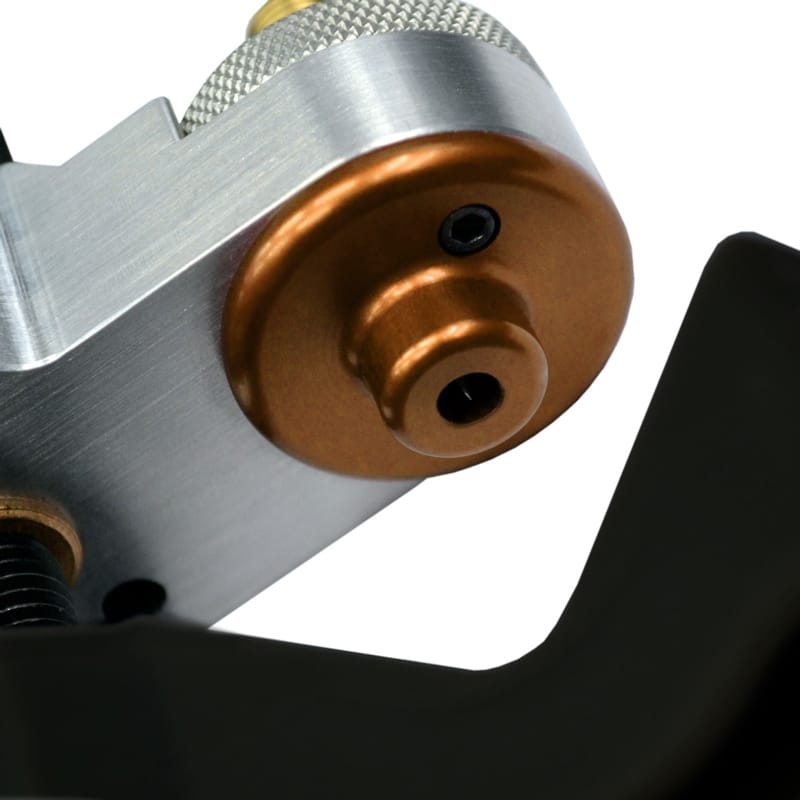

Recessed blade protects the operator and the blade
Ring, spiral and longitudinal cuts - adjust the blade position
Replaceable machined, ground tool steel blade
Reinforced diameter jaw travels on a threaded rod for stable, precise cuts
Specifications:
Cable OD: 0.39-2.36in (10-60 mm)
Adjustable Blade Depth: Up to 0.216" (5.5 mm)
Scale: Customary (inch), 0.002" increments
Cutting Type: Radial, Spiral, Longitudinal
Cable Access: Mid-Span, End
Material: Impact-resistant polymer
Length: 5.125" (130 mm)
Weight: 8.82 oz (250 g)
Model: US15-7011
Available Models:
| Part # | Model | Ripley # | Scale |
|---|
| UTIL-US15-7010 | US15 PRO Large Slitting Tool (Metric Scale) | US15-7010 | Metric |
| UTIL-US15-7011 | US15 PRO Large Slitting Tool (Inch Scale) (this item) | US15-7011 | Customary |
Replacement Parts:
| Part # | Ripley # | Description |
|---|
| - | US15-7501 | Machined and ground tool steel replacement blade |
US15 PRO / PRO MAX Instruction Sheet
|
|
|
 |
|
 |
|
