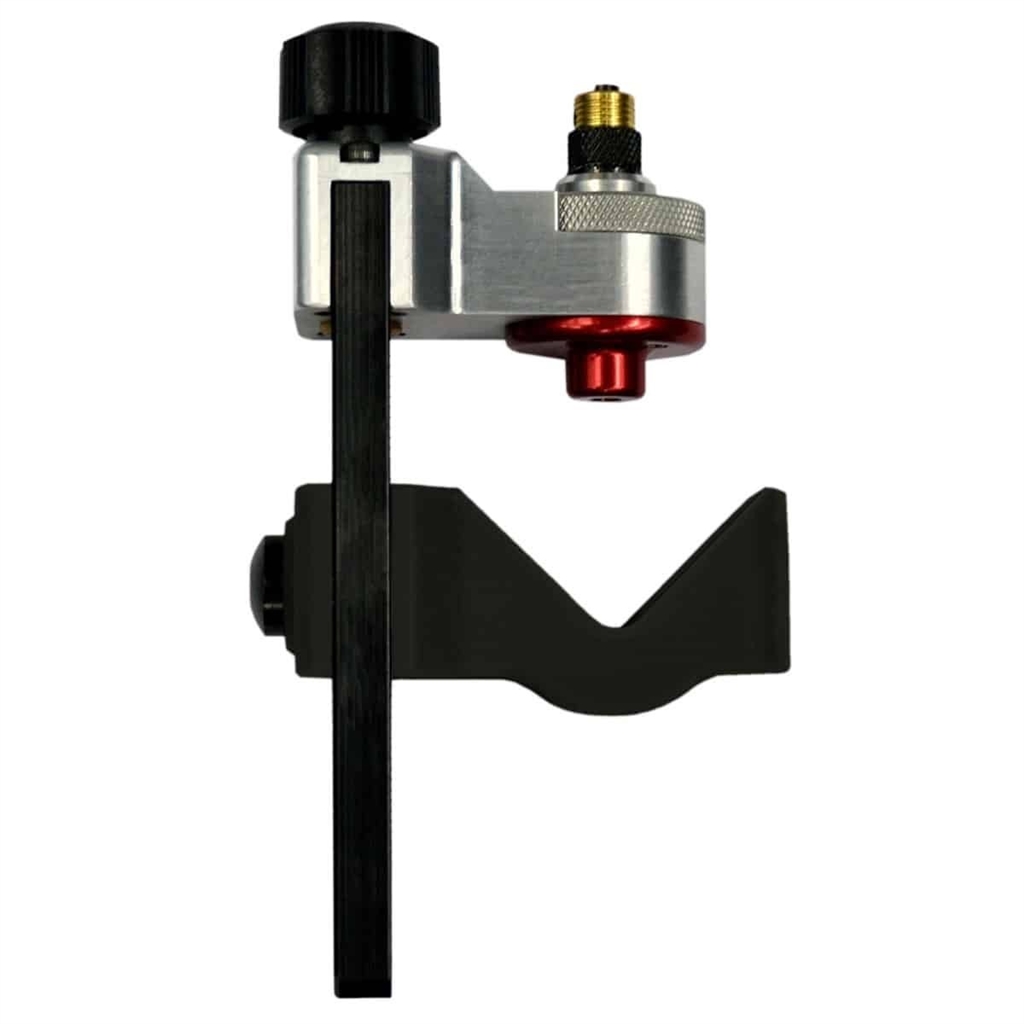

Ripley Tools US15 Large Format Cable Slitter -Inch Scale :: US15-7001
The Ripley Tools US15-7001 Large Format Cable Slitter is a versatile, professional-grade tool capable of performing slit, ring, and spiral cuts on cable diameters from 0.39in to 2.36in (10-60mm), equipped with a hardened steel blade that delivers fast, safe, and precise jacket removal from both hard and soft insulated cables without damaging underlying layers.
This inch-scale model is engineered for large telecom cables, large fiber optic ducts, and other large-diameter power cables. It quickly adjusts to suit cable ends from 0.39in to 2.36in (10-60mm) and cable mid-spans from 0.39in to 1.96in (10-50mm), giving crews the flexibility to handle both end-prep and mid-span access work with a single tool.
Precision matters on large-format cable work, which is why the US15-7001 features a blade depth knob that adjusts up to 0.177in (4.5mm) in fine 0.002in (0.05mm) increments, plus a dual inch/metric scale for guaranteed accuracy. A reinforced diameter adjustment jaw travels on a threaded rod for stable, consistent blade-to-jacket positioning, while the recessed blade design helps protect both the operator and the blade edge during use. It's a go-to tool for utility linemen, cable splicers, and telecom installation technicians, and is also featured in Ripley's MV Underground tool kits.
Key Features
- Performs slit, ring, and spiral cuts on cable diameters from 0.39in to 2.36in (10-60mm)
- Hardened steel blade for fast, precise jacket removal without damaging inner cable layers
- Safe, recessed blade design to help prevent injury and blade damage
- Compatible with large telecom cables, fiber optic ducts, and large-diameter power cables
- Handles both cable-end (0.39in-2.36in) and mid-span (0.39in-1.96in) jacket removal
- Blade depth knob adjusts up to 0.177in (4.5mm) in 0.002in (0.05mm) increments
- Dual inch/metric scale for precise, repeatable adjustments
- Reinforced, threaded-rod diameter adjustment jaw for stable, controlled cuts
- Replacement blade (US15-7500) available for extended service life
Specifications
| Brand | Ripley Tools |
| Series | US15 UtilityTool |
| Manufacturer SKU | US15-7001 |
| Measurement Scale | Inch (in/mm dual markings) |
| Cable OD Range -Cable End | 0.39in - 2.36in (10 - 60 mm) |
| Cable OD Range -Mid-Span | 0.39in - 1.96in (10 - 50 mm) |
| Blade Depth Adjustment | Up to 0.177in (4.5 mm) |
| Adjustment Increment | 0.002in (0.05 mm) |
| Blade Type | Hardened steel, recessed/safety design |
| Cut Types | Slit, ring, and spiral cuts |
| Cable Compatibility | Large telecom cables, large fiber optic ducts, large-diameter power cables |
| Replacement Blade Part # | US15-7500 |
| Approx. Tool Weight | 8.82 oz (250 g) |
|
|
 |
 |
 |
 |

|
