Ripley 40100 UtilityTool WS68 SNAP Power-Driven End Stripper

Home > Categories > Utility & MV Cable Prep > Cable End Strippers >

UtilityTool by Ripley Tools WS68 SNAP Power-Driven End Stripper - #6 AWG to 750 MCM, 600V (Tool Body Only)

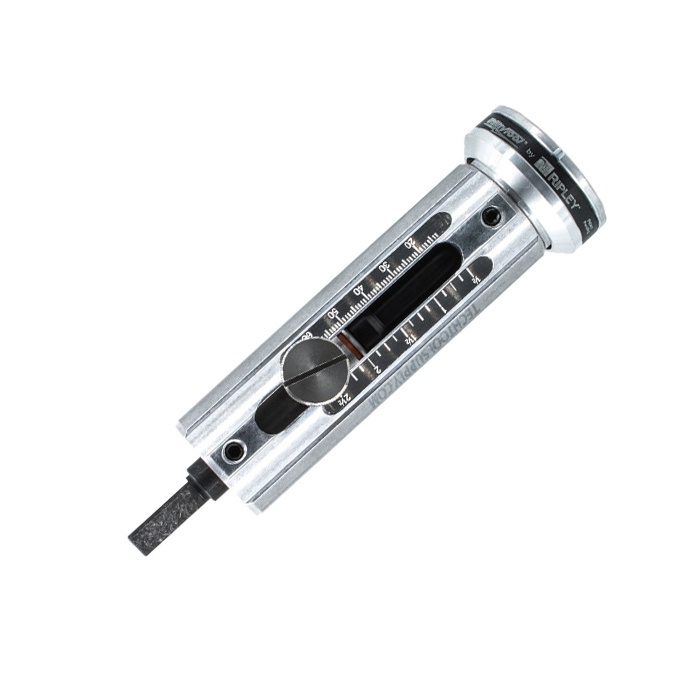

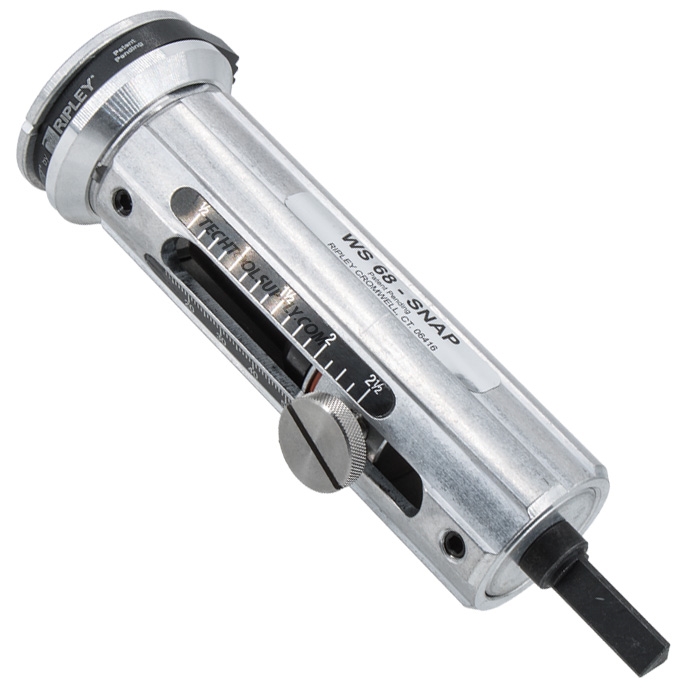

UtilityTool WS68 SNAP power driven end stripper tool body

Alternative Views:

TTS PRICE: $282.99

STATUS: ON ORDER

Availability:

SHIP ESTIMATE 9-11 DAYS

PRODUCT CODE: RIP-40100

QUANTITY:

PRODUCT DESCRIPTION

Ripley UtilityTool WS 68 SNAP Power-Driven End Stripper - #6 AWG-750 kcmil, 600V (Tool Body Only)

Please note: The 40100 is the tool body only and does not include bushings. Bushings are sold separately.

The Ripley Tools WS68 SNAP is a power-driven cable end stripper built on the proven WS68 platform, adding a patented quick-connect front collar that lets technicians snap bushings in and out from the front of the tool - fast and positive, even with lineman's gloves on. Chuck it into any standard 3/8" drill and end-strip secondary distribution cable without traditional knives, reducing the risk of cuts or lacerations. A knurled thumb screw with a high-visibility depth indicator sets strip length quickly and accurately from 0.625" to 2.5" (15.875 to 63.5 mm).

The tool accepts Ripley cable bushings from #6 AWG through 750 MCM, covering concentric, compressed, and compacted conductors on 600V secondary distribution cable. Bushing swaps that previously required a tool or took two hands can now be completed in seconds with a simple push-and-twist motion at the front collar. For strip lengths up to 5", see the WS 68 SNAP XL.

Features:

Patented quick-connect front collar snaps bushings in and out fast, even with gloves on

Power-driven operation via standard 3/8" drill - eliminates the use of traditional knives, reducing the risk of cuts or lacerations

Adjustable strip length from 0.625" to 2.5" (15.875 to 63.5 mm)

Knurled thumb screw with high-visibility depth indicator for accurate, repeatable strip settings

Accepts Ripley bushings from #6 AWG through 750 MCM for concentric, compressed, and compacted conductors

With the appropriate bushing, can replace a WS-MSES for end stripping tap or riser wire

Rated for 600V secondary distribution cable

Tool body only - order bushings separately for your conductor size(s)

Specifications:

Series: WS 68 SNAP

Item Type: Tool body only - bushings sold separately

Quick Connect / Release Collar: Yes

Drive Attachments: 3/8" Drill

Strip Length: 0.625" - 2.5" (15.875 - 63.5 mm)

Strip Stop Scale: Yes

Cable Range: #6 AWG - 750 kcmil

Max. Voltage: 600 V

Conductor Type: Concentric, Compressed, Compacted

Cable Compatibility: Secondary Distribution

Cable Access: End

Length: 6.5" (165.1 mm)

Weight: 12.6 oz (357.2 g)

Patent: U.S. Patent No. 10,819,091

Model: 40100

Available Models:

Part #	Model	Ripley #	Quick-Connect Collar	Strip Length	Drive
UTIL-37430	WS 68	37430	No	0.625-2.5in (15.9-63.5 mm)	1/4in hex
UTIL-37430-1	WS 68	37430-1	No	0.625-2.5in (15.9-63.5 mm)	3/8in drill
UTIL-37430-2	WS 68	37430-2	No	0.625-2.5in (15.9-63.5 mm)	3/8in square socket
UTIL-37430-3	WS 68	37430-3	No	0.625-2.5in (15.9-63.5 mm)	1/2in square socket
RIP-40100	WS 68 SNAP (this item)	40100	Yes	0.625-2.5in (15.9-63.5 mm)	3/8in drill
UTIL-40100-1	WS 68 SNAP	40100-1	Yes	0.625-2.5in (15.9-63.5 mm)	1/4in hex + 3/8in square
UTIL-40100-2	WS 68 SNAP	40100-2	Yes	0.625-2.5in (15.9-63.5 mm)	1/4in hex
UTIL-40100-3	WS 68 SNAP	40100-3	Yes	0.625-2.5in (15.9-63.5 mm)	3/8in square socket
UTIL-40100-4	WS 68 SNAP	40100-4	Yes	0.625-2.5in (15.9-63.5 mm)	1/2in square socket
UTIL-40115	WS 68 SNAP XL	40115	Yes	0.625-5in (15.9-127 mm)	3/8in drill
UTIL-40115-1	WS 68 SNAP XL	40115-1	Yes	0.625-5in (15.9-127 mm)	1/4in hex + 3/8in square
UTIL-40115-2	WS 68 SNAP XL	40115-2	Yes	0.625-5in (15.9-127 mm)	1/4in hex
UTIL-40115-3	WS 68 SNAP XL	40115-3	Yes	0.625-5in (15.9-127 mm)	3/8in square socket
UTIL-40115-4	WS 68 SNAP XL	40115-4	Yes	0.625-5in (15.9-127 mm)	1/2in square socket

Compatible Bushings:

Part #	Ripley #	Description
RIP-10-40030	10-40030	Square-cut bushing - #2 AWG THHN / XHHW copper, 0.390" OD, 45 mil
UTIL-10-55060	10-55060	Square-cut bushing - 1/0 AWG compressed, 0.540" OD, 80 mil
RIP-11-80075	11-80075	Square-cut bushing - 250 kcmil concentric, 0.790" OD, 95 mil

WS 68 & WS 68 SNAP Instruction Sheet
