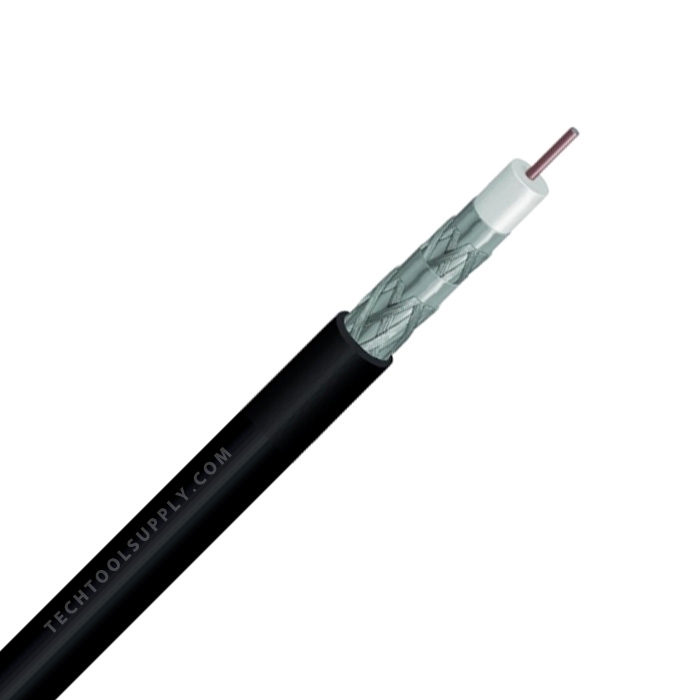

Vericom RG6 Quad Coaxial Cable 1000ft Reel In Box - Black

Vericom RG6 Quad Coaxial Cable 1000ft Reel In Box - Black




Alternative Views:
TTS PRICE: $79.49

STATUS:  IN STOCK


Availability:
Normally Ships Same Day

PRODUCT CODE: VER-XRG06-02406
QUANTITY:

PRODUCT DESCRIPTION


This 1000 foot RG-6 coaxial cable from Vericom has an insulated central conductor and are perfect for low loss, high frequency applications. The most commonly recognized use for RG-6 is for CATV and satellite applications. RG-6 is typically fit with different types of connectors at each end. In CATV distribution , these are F connector style; in professional base band video, BNC connectors; and in consumer A/V uses, other than RF and CATV, RCA plugs.

Features:
  • Reel In Box Packaging Design
  • 18 AWG Copper Clad Steel
  • Quad Shielded

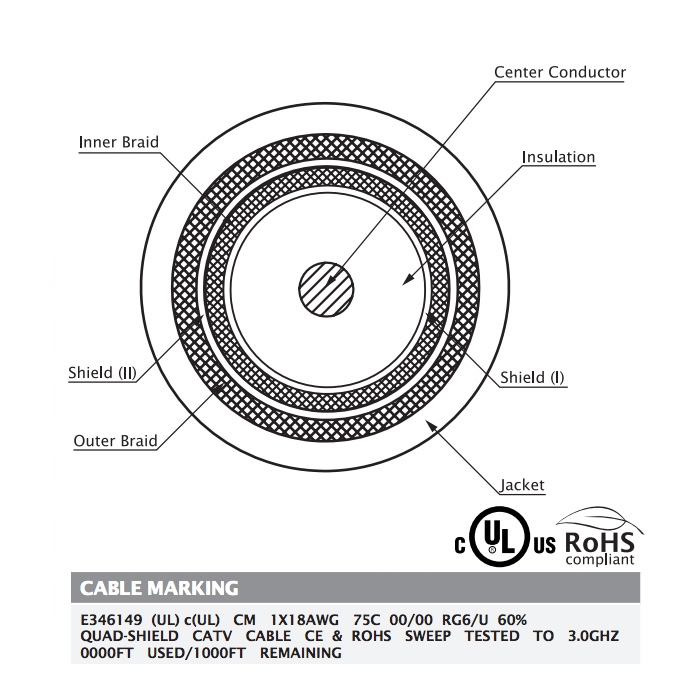

    • Specifications:
  • Length: 1000ft
  • Cable: RG6 Quad
  • Color: Black
  • Conductor Material: Copper Clad Steel
  • Conductor Size: 18 AWG
  • Dielectric Material Type" Foam PE
  • Dielectric Nom. Diameter: 4.57 mm
  • Shield 1st Material: Al foil + Al Braiding
  • Shield Coverage: 60%
  • Shield 2nd Material: Al foil + Al Braiding
  • Shield Coverage: 60%
  • Jacket Material: PVC
  • Jacket Nom. Diameter: 7.3 mm
  • Jacket Nom. Thickness: 0.80 mm
  • Jacket Flame Rate: CM
  • UL Listed
  • CM Rated

    • Electrical Characteristics:
  • Nominal Impedance: 75ohm
  • Nominal Velocity of Propagation: 85%
  • Nominal Capacitance: 0 pF/m
  • Sparker Test (VAC): 4000
  • Structural Return Loss: 20dB

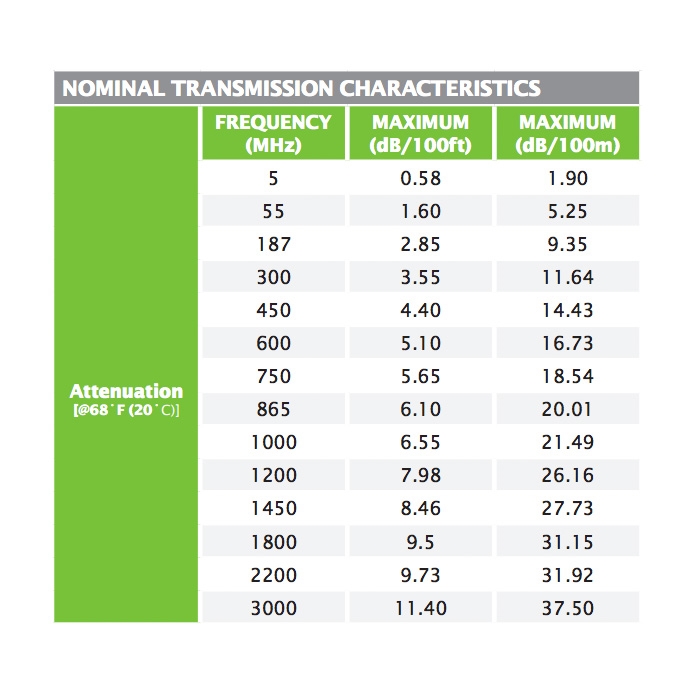

  • Attenuation: @68f (20c)
    •
