UtilityTool by Ripley Tools WS 22 Square-Cut Replacement Bushing, 1.340in Max Cable OD (80 Mil Insulation)

Home > Categories > Utility & MV Cable Prep > Replacement Bushings & Blades >

Alternative Views:

TTS PRICE: $111.98

STATUS: ON ORDER

Availability:

Normally Ships Same Day

PRODUCT CODE: UTIL-15-135060

QUANTITY:

PRODUCT DESCRIPTION

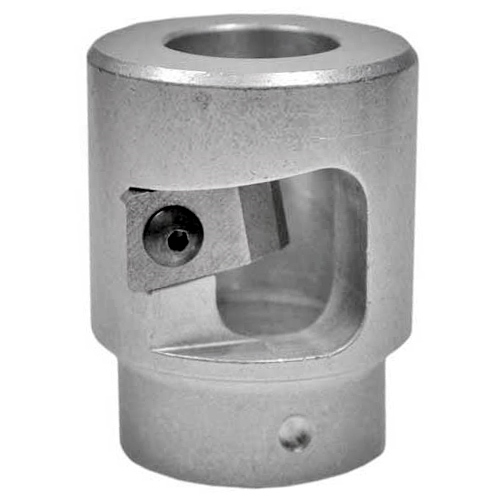

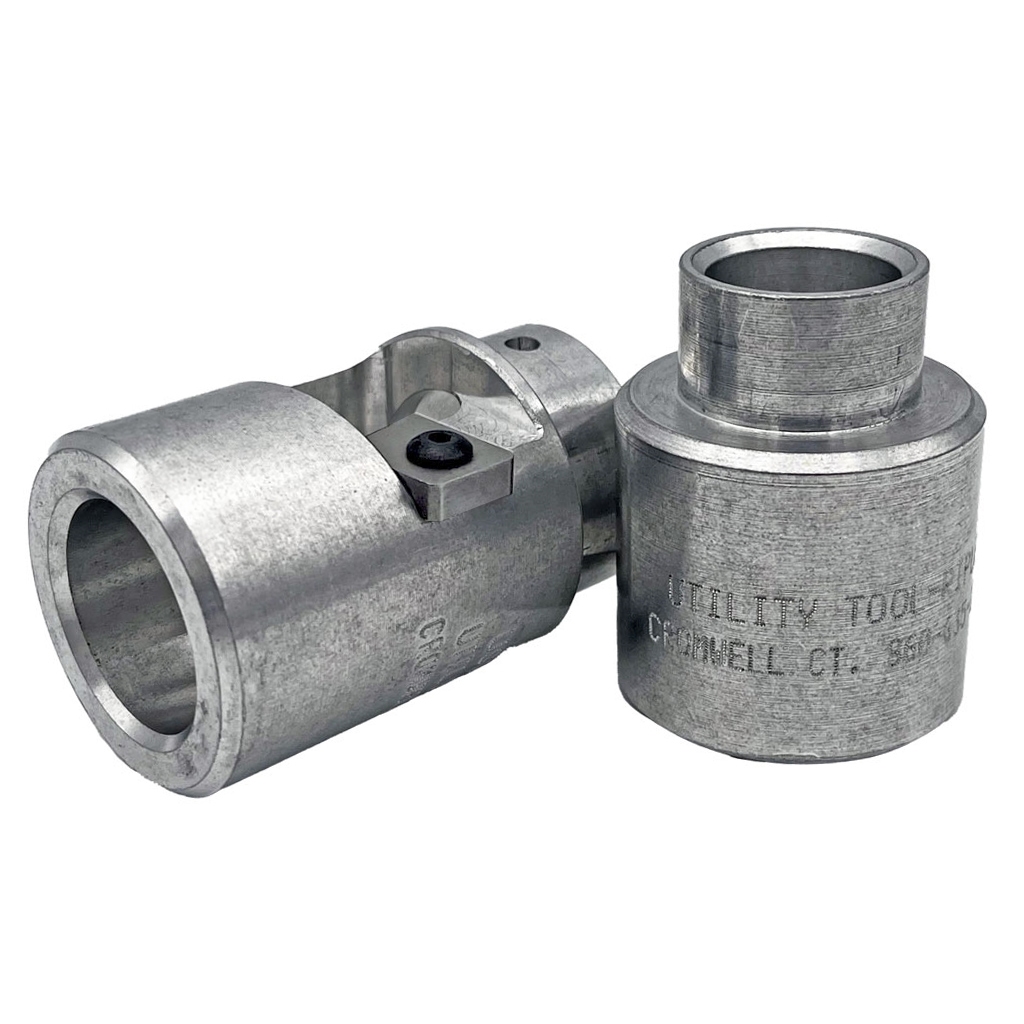

Ripley Tools WS 22 Series Square-Cut Bushing – 1.340in Max OD, 80 Mil Insulation (SKU 15-135060)

Requires Tool Body: This bushing is an accessory for the Ripley WS 22A Power-Driven End Stripper and WS 22 double-ended stripper (each sold separately). It does not function as a standalone stripping tool.

The Ripley Tools WS 22 Series Square-Cut Bushing (SKU 15-135060) is a precision accessory bushing built for the UtilityTool WS 22 double-ended cable end stripper and the WS 22A power-driven end stripper. It is sized for cables with a maximum outer diameter of 1.340in (34.04 mm) over an 80 mil insulation wall, giving technicians a precise fit for consistent, clean square-cut end stripping on the largest secondary conductors in the WS 22 range.

Part of the WS 22 bushing family that supports 600V secondary cable with concentric, compressed, and compacted conductors from #1/0 AWG up to 1,000 kcmil, this bushing lets crews quickly configure their WS 22 or WS 22A tool body for the exact cable size on the job — no need to swap to an entirely different tool for each diameter.

Key Features

Precision square-cut bushing sized for 1.340in max cable OD with 80 mil insulation
Fits large-kcmil conductor configurations at the top of the WS 22 range
Compatible with WS 22 (tool body only) and WS 22A power-driven end strippers
Rated for 600V secondary power cable applications
Works with 3/8in drill drive, 1/4in hex drive, 3/8in square drive, and 1/2in square drive WS 22A configurations
Uses replacement blade part #12302
Made in the USA

Specifications

Manufacturer	Ripley Tools
Manufacturer SKU	15-135060
Product Line	UtilityTool WS 22 Series
Bushing Type	Square-Cut
Max Cable Outer Diameter	1.340in (34.04 mm)
Insulation Thickness	80 mil
Replacement Blade	Part #12302
Compatible Tools	WS 22 Double-Ended Cable End Stripper (tool body only); WS 22A Power-Driven End Stripper (3/8in Drill Drive, 1/4in Hex Drive, 3/8in Square Drive, 1/2in Square Drive)
Voltage Rating	600V secondary cable
Country of Origin	Made in USA
Sold As	Individual bushing (2 recommended per tool)
