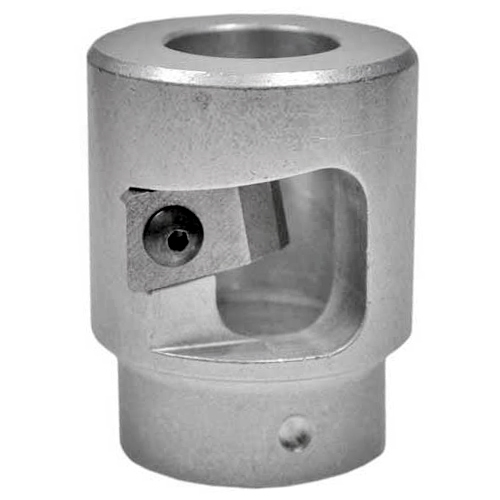

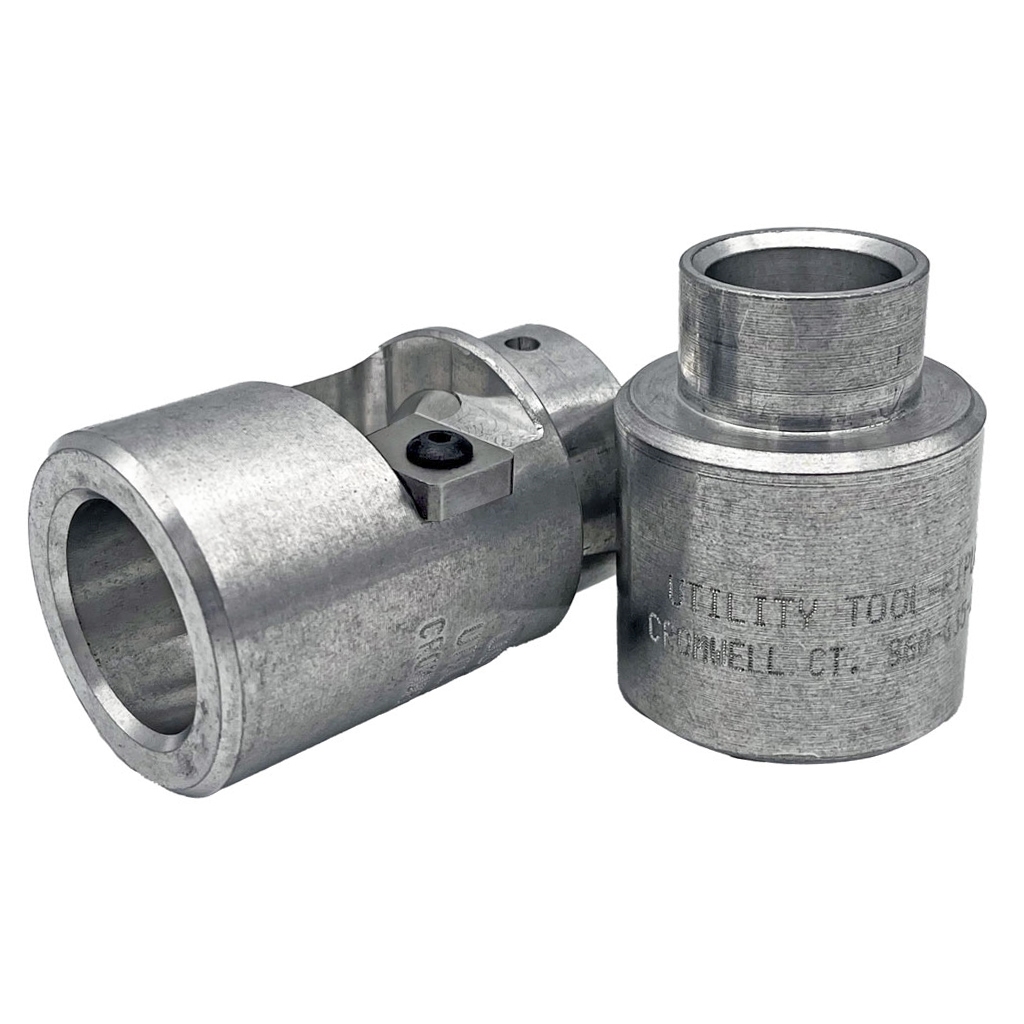

The Ripley Tools WS 22/WS 22A Square-Cut Bushing (SKU 15-107560) is a precision-machined replacement component engineered for use with the Ripley UtilityTool WS 22 Double-Ended Cable End Stripper and the power-driven WS 22A end stripper line. Sized to a maximum cable outer diameter of 1.065in (27.05 mm) with 80 mil insulation thickness, this bushing produces a clean square cut when preparing 600 volt secondary cable ends, matching concentric 600 kcmil, compressed 600 kcmil, and compacted 700 kcmil conductor constructions.

Built to Ripley's exacting manufacturing standards in the USA, the bushing pairs with a replaceable 12302 blade, allowing crews to renew cutting performance without replacing the entire bushing assembly. Because the WS 22 system uses two bushings per tool, technicians should order this size in pairs (or match with a second appropriate bushing) to complete a stripping setup.

This bushing is compatible with the WS 22 Double-Ended Cable End Stripper tool body, as well as WS 22A power-driven end strippers configured with 3/8in drill drive, 1/4in hex drive, 3/8in square drive, or 1/2in square drive. It is purpose-built for electrical utility linemen, cable splicers, and installation technicians who need repeatable, accurate end-strip preparation on secondary URD and service cable in the field or shop.

• Sized for max cable O.D. of 1.065in (27.05 mm) with 80 mil secondary insulation
• Delivers a precise square cut for clean, consistent cable end preparation
• Compatible with concentric 600 kcmil, compressed 600 kcmil, and compacted 700 kcmil conductors
• Fits Ripley WS 22 tool body and all WS 22A drive configurations (3/8in drill, 1/4in hex, 3/8in square, 1/2in square)
• Replaceable 12302 blade extends bushing service life
• Precision manufactured in the USA to Ripley quality standards
