Requires Tool Body: This bushing is an accessory for the Ripley WS 22A Power-Driven End Stripper and WS 22 double-ended stripper (each sold separately). It does not function as a standalone stripping tool.

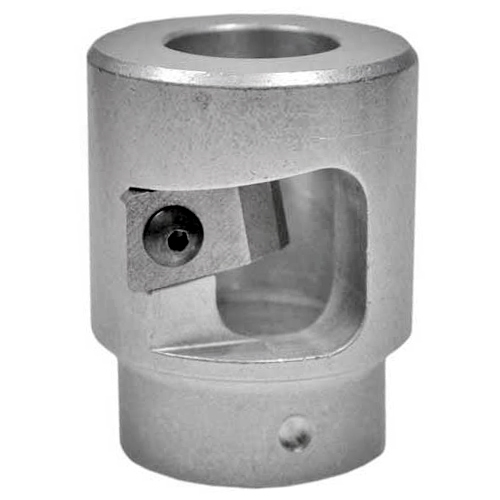

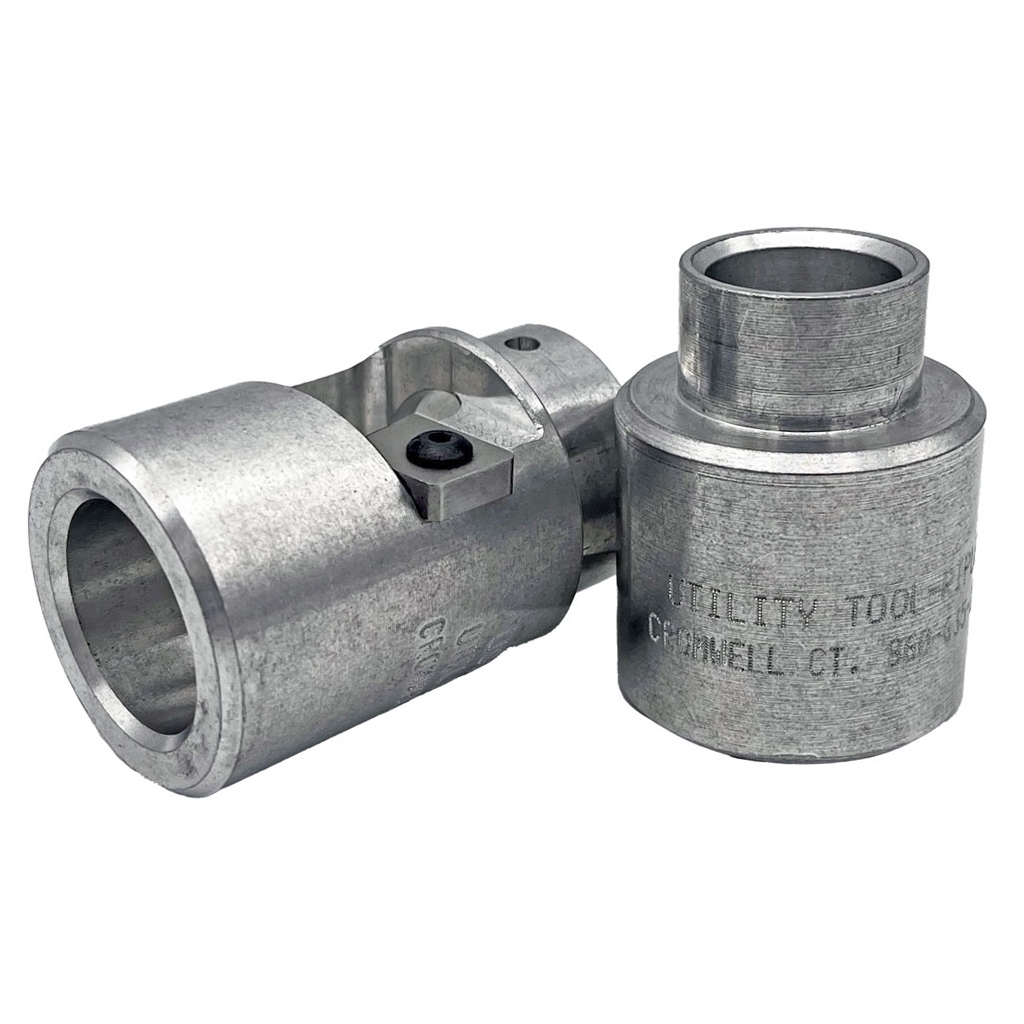

The Ripley Tools WS 22 Series Square-Cut Bushing (SKU 15-87590) is a precision accessory bushing built for the UtilityTool WS 22 double-ended cable end stripper and the WS 22A power-driven end stripper. It is sized for cables with a maximum outer diameter of 0.865in (21.97 mm) over a 110 mil insulation wall, giving technicians a precise fit for consistent, clean square-cut end stripping.

Part of the WS 22 bushing family that supports 600V secondary cable with concentric, compressed, and compacted conductors from #1/0 AWG up to 1,000 kcmil, this bushing lets crews quickly configure their WS 22 or WS 22A tool body for the exact cable size on the job � no need to swap to an entirely different tool for each diameter.

• Precision square-cut bushing sized for 0.865in max cable OD with 110 mil insulation
• Compatible with WS 22 (tool body only) and WS 22A power-driven end strippers
• Rated for 600V secondary power cable applications
• Works with 3/8in drill drive, 1/4in hex drive, 3/8in square drive, and 1/2in square drive WS 22A configurations
• Uses replacement blade part #12302
• Made in the USA

Replacement Blade: This bushing uses the Ripley 12302 replacement blade (sold separately).
