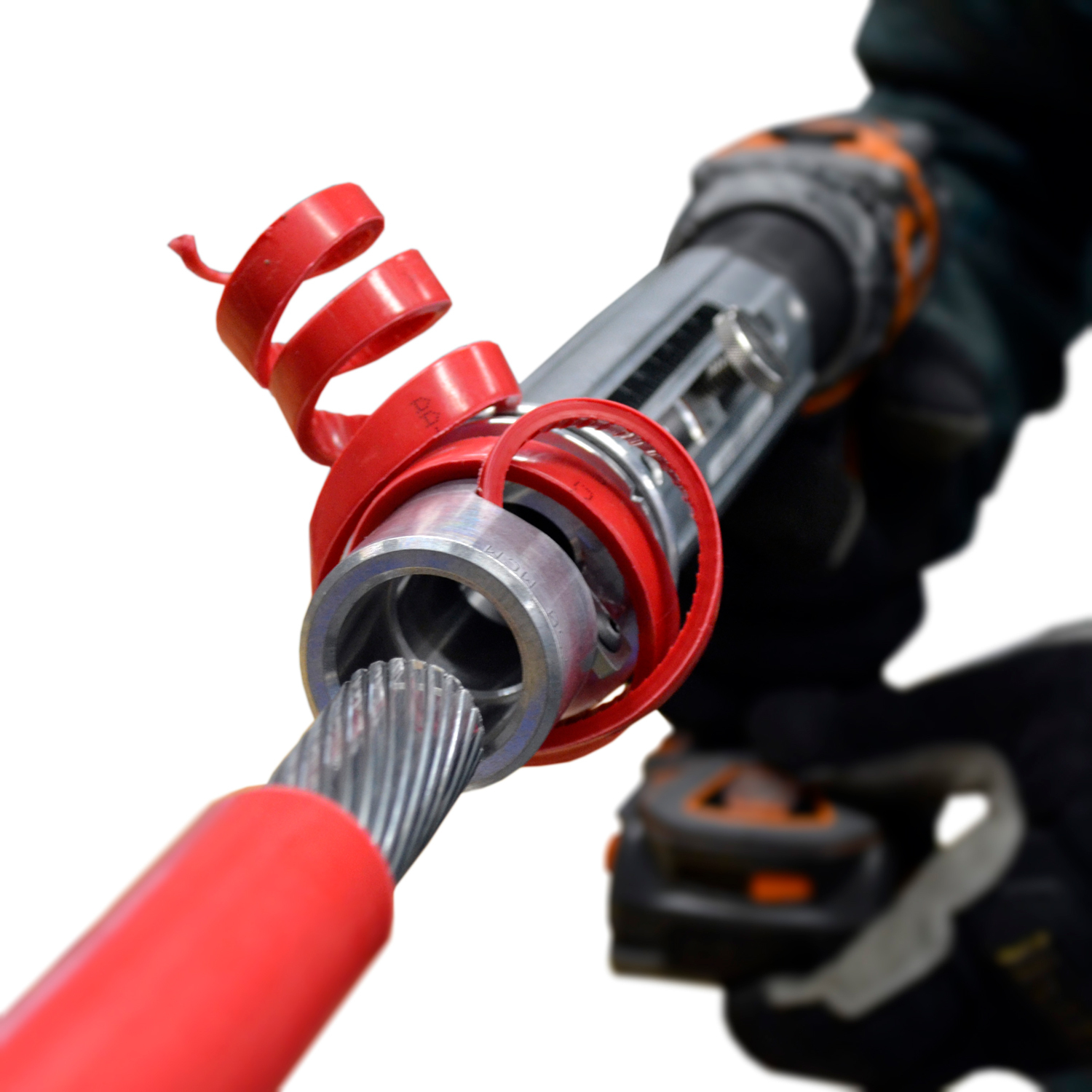

The Ripley Tools US08-90090 is a precision-sized, square-cut interchangeable bushing for stripping 2kV aluminum PV (photovoltaic/solar) wire at the 350 kcmil conductor size. It snaps directly into the WS-22, WS-22A, or WS-22 SNAP Series tool bodies, presetting the cutting blade to the exact jacket depth for that conductor size — no blade adjustment required. Compared to knife-based jacket removal, the US08 bushing delivers a cleaner, more consistent square cut while significantly reducing the risk of nicking the aluminum conductor.

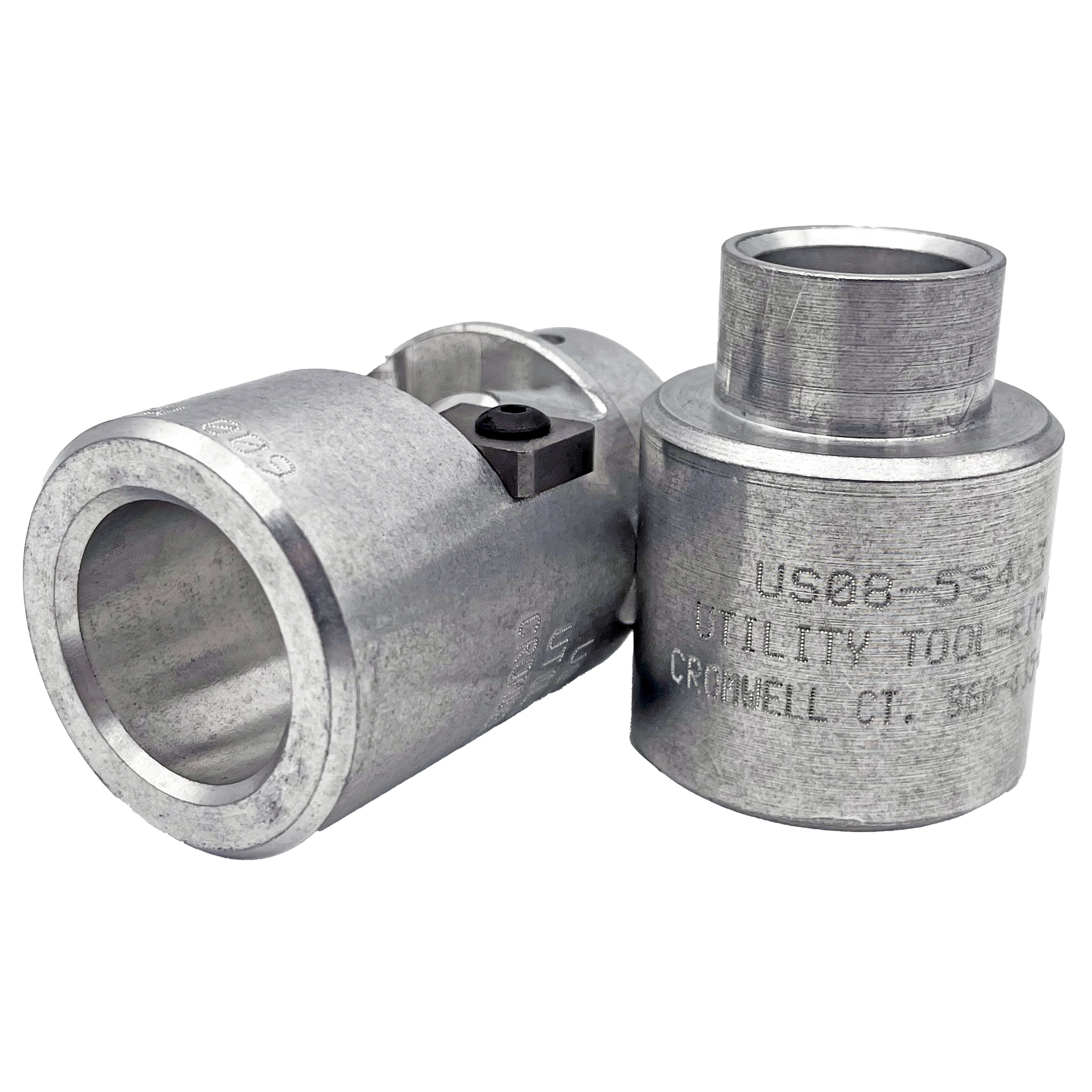

The US08 bushing series spans 17 sizes from #8 AWG through 1000 kcmil, each sized to its specific PV wire diameter so technicians can quickly swap bushings on the same WS-22 tool body to handle multiple conductor sizes on a job. The US08-90090 is also available as part of Ripley's PV Wire Stripping Kits, making it available both as a kit component and as a standalone replacement bushing when the original wears out.

• Snap-in design for WS-22, WS-22A, and WS-22 SNAP Series tool bodies — no blade adjustment needed
• Precision-sized for 350 kcmil, 2kV aluminum PV (solar) wire
• Square-cut stripping for a clean, consistent jacket removal without nicking the conductor
• Faster and safer than knife-based jacket removal on PV wire
• Part of the 17-size US08 bushing series covering #8 AWG through 1000 kcmil
• Available as part of Ripley PV Wire Stripping Kits; also sold separately as a replacement
• Replacement blade for the WS-22 tool body: Part #R12355
