New!  UtilityTool by Ripley Tools WS 6-1500 Replacement Bushing, 1.461in-1.485in Cable OD

Ripley Tools UtilityTool WS 6-1500 Replacement Bushing, 1.461in-1.485in Cable OD


TTS PRICE: $75.99


STATUS: ON ORDER

Free Shipping

Availability:
SHIP ESTIMATE 9-11 DAYS

PRODUCT CODE: UTIL-12905-1500
QUANTITY:

PRODUCT DESCRIPTION

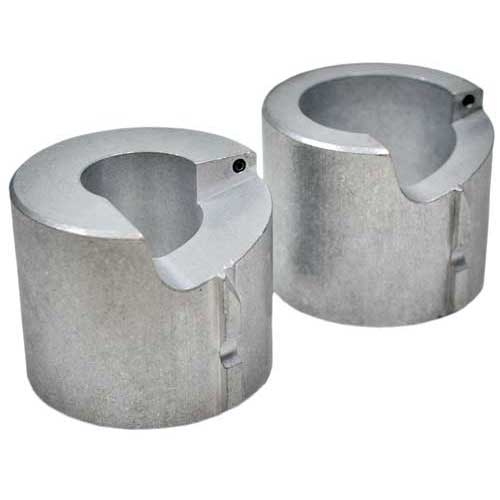

Ripley UtilityTool WS 6-1500 Bushing 12905-1500 - 1.461"-1.485" Cable OD

The Ripley Tools WS 6-1500 (SKU 12905-1500) is a precision replacement bushing engineered for use with the UtilityTool WS 6 Series Cable End Stripper. This bushing is sized to accommodate cable outer diameters of 1.461in to 1.485in over insulation or semi-con, letting the WS 6 stripper be quickly reconfigured for a different cable size without purchasing an entirely new tool.

The WS 6 Series stripper is a rugged, all-metal precision tool built to strip XLPE, polyethylene, and EPR insulation from primary distribution cable rated 15-46kV, covering overall cable diameters from 0.9in to 2.03in. Interchangeable bushings like this one let a single WS 6 body adapt across the full .675in-2.100in bushing range in .025in increments, while the tool's guarded cutting blade helps protect both the operator and the cable conductor during stripping.

Machined to Ripley's precision tolerances, this bushing ensures a consistent, secure fit inside the WS 6 body for repeatable strip lengths. It's an essential accessory for utility linemen, cable splicers, and electrical contractors who need to match their WS 6 stripper precisely to the cable diameter on the job, reducing the risk of conductor damage and improving splice reliability.

Features:
  • Precision-sized replacement bushing for cable OD 1.461in-1.485in over insulation/semi-con
  • Enables accurate, repeatable strip lengths without damaging the conductor
  • Part of a full bushing range from .675in to 2.100in in .025in increments for broad cable compatibility
  • Supports stripping of XLPE, EPR, and polyethylene insulation on 15-46kV cable

  • Specifications:
  • O.D. Over Insulation / Semi-Con: 1.461" - 1.485" (37.11 - 37.72 mm)
  • Model Designation: WS 6-1500
  • Bushing Series Range: 0.675" - 2.100" in 0.025" increments
  • Compatible Cable Voltage: 15-46 kV
  • Compatible Insulation Types: XLPE, EPR, Polyethylene
  • Overall WS 6 Cable Diameter Range: 0.9" - 2.03" (22.86 - 51.56 mm)
  • Model: 12905-1500

  • Available Bushings:
    Part #ModelRipley #O.D. Over Insulation
    UTIL-12905-1275WS 6-127512905-12751.236" - 1.260" (31.39 - 32.00 mm)
    UTIL-12905-1300WS 6-130012905-13001.261" - 1.285" (32.03 - 32.64 mm)
    UTIL-12905-1500WS 6-1500 (this item)12905-15001.461" - 1.485" (37.11 - 37.72 mm)

    Fits These Tools:
    Part #Ripley #Description
    UTIL-1290012900WS 6 cable end stripper
    UTIL-1295012950WS 6DA drill-driven cable end stripper
    UTIL-1296012960WS 6DA-M drill-driven cable end stripper (metric)
