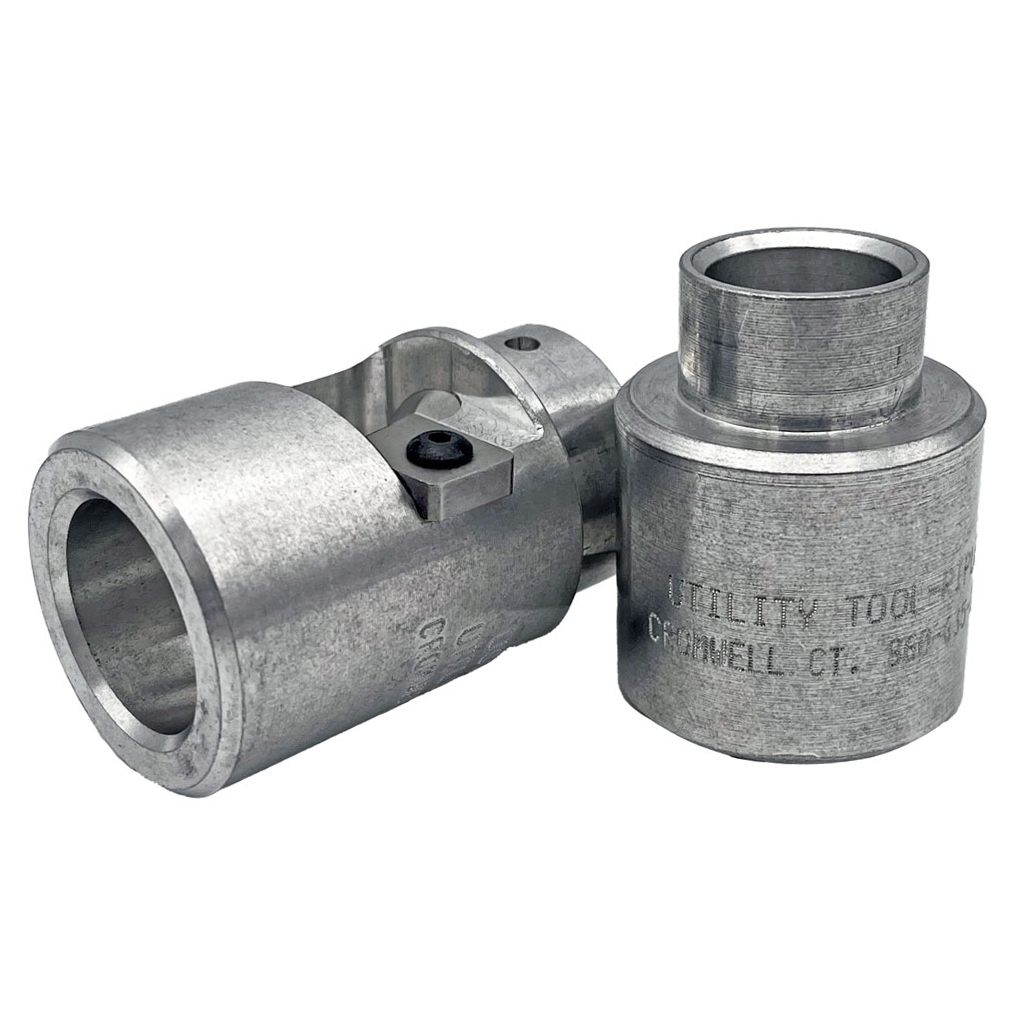

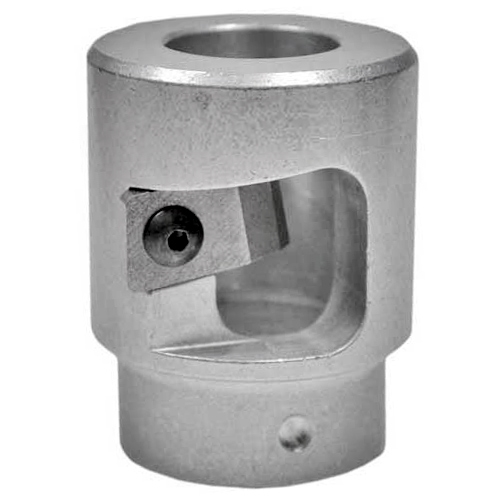

The Ripley Tools WS 22 Series Square-Cut Bushing (SKU 15-120060) is a precision accessory bushing built for the UtilityTool WS 22 double-ended cable end stripper and the WS 22A power-driven end stripper. It is sized for cables with a maximum outer diameter of 1.190in (30.23 mm) over an 80 mil insulation wall, giving technicians a precise fit for consistent, clean square-cut end stripping on large secondary conductors.

Part of the WS 22 bushing family that supports 600V secondary cable with concentric, compressed, and compacted conductors from #1/0 AWG up to 1,000 kcmil, this bushing lets crews quickly configure their WS 22 or WS 22A tool body for the exact cable size on the job — no need to swap to an entirely different tool for each diameter.

• Precision square-cut bushing sized for 1.190in max cable OD with 80 mil insulation
• Fits large-kcmil concentric, compressed, and compacted conductor configurations
• Compatible with WS 22 (tool body only) and WS 22A power-driven end strippers
• Rated for 600V secondary power cable applications
• Works with 3/8in drill drive, 1/4in hex drive, 3/8in square drive, and 1/2in square drive WS 22A configurations
• Uses replacement blade part #12302
• Made in the USA
