Zeitler EZ50 Pull Line Blower for 18 - 50mm Conduit

Zeitler EZ50 Pull Line Blower kit for 18-50mm conduit


Alternative Views:


TTS PRICE: $1,938.99

STATUS: ON ORDER


Availability:
Normally Ships Same Day

PRODUCT CODE: ZEI-EZ50
QUANTITY:

PRODUCT DESCRIPTION


The Zeitler EZ50 gets a pull line through conduit without a compressor, a fish tape fight, or a second trip to the truck. Load a bead and line, seal the nozzle to the pipe, and blow - or switch to suction mode and vacuum the line through from the other end. It handles 3/4" to 2" (18-50mm) internal diameter conduit and makes light work of the runs that stall a fish tape: multiple bends, flexible conduit, even pipes with kinks. In good conditions, the line blows through runs of hundreds of feet - up to 300-400m.

For crews running wire through conduit multiple times a day, the EZ50 pays for itself fast. It is lightweight and compact with excellent accessibility in confined spaces, and the kit arrives complete with line, nozzles for the full diameter range, beads, and suction attachment.

Key Features:
  • Blows or vacuums pull line - no compressor required
  • Fits all commercial pipe work, 3/4" - 2" (18-50mm) internal diameter
  • Excels on flexible conduit, multiple bends, and kinked runs
  • Line runs of hundreds of feet - up to 300-400m in good conditions
  • Lightweight, compact, and easy to handle in confined spaces
  • Dual function: blowing and suction modes

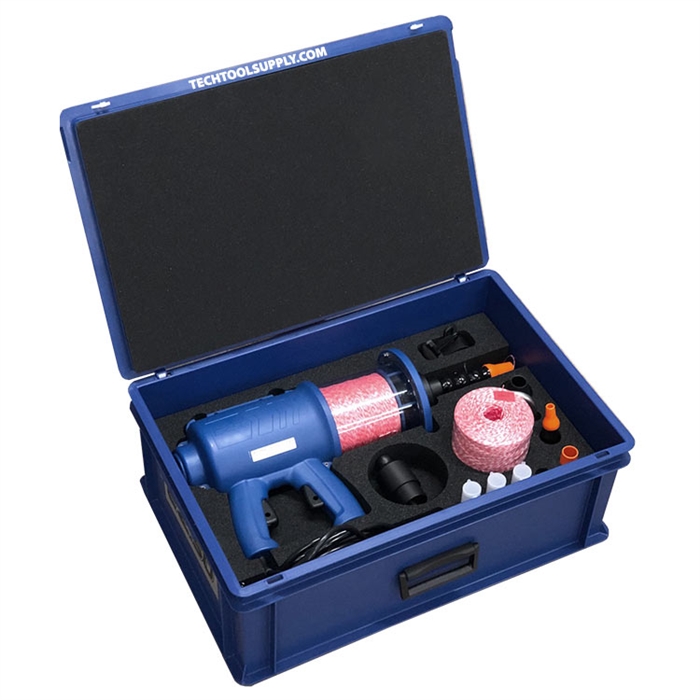

Kit Includes:

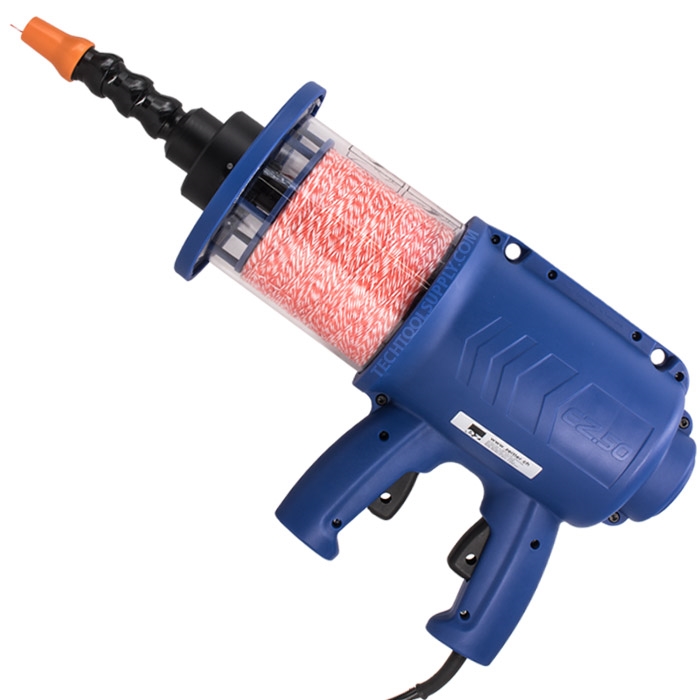

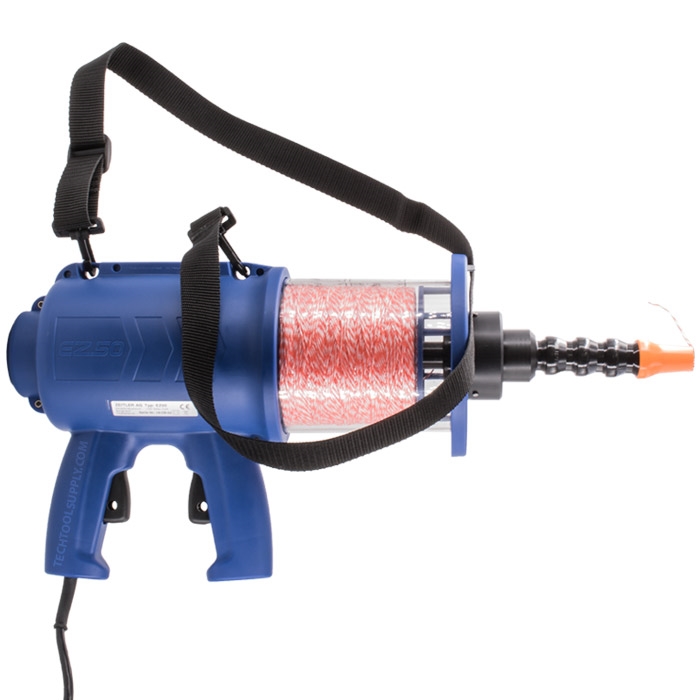

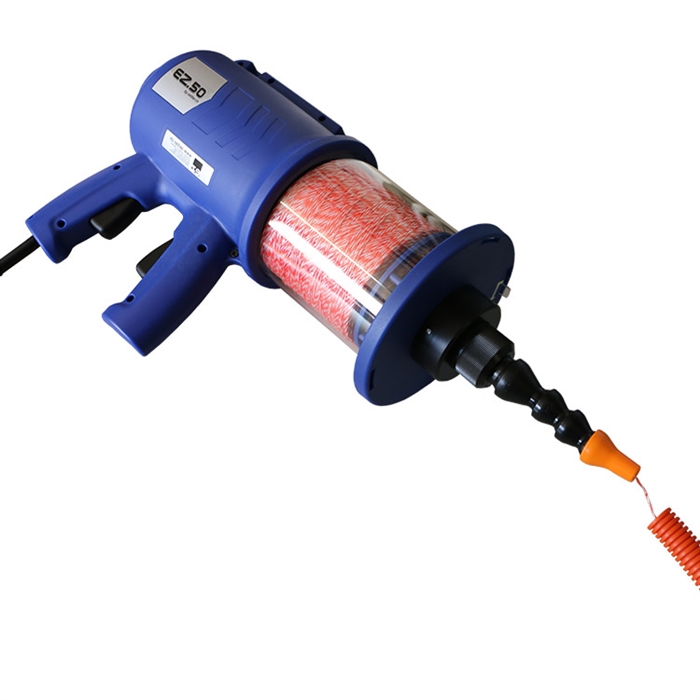

  • 1 - EZ50 pull line blower (stringing gun)
  • 2 - Pull line rolls (1 mm dia., approx. 24 kg tensile strength, approx. 900 m each)
  • 1 - Suction device

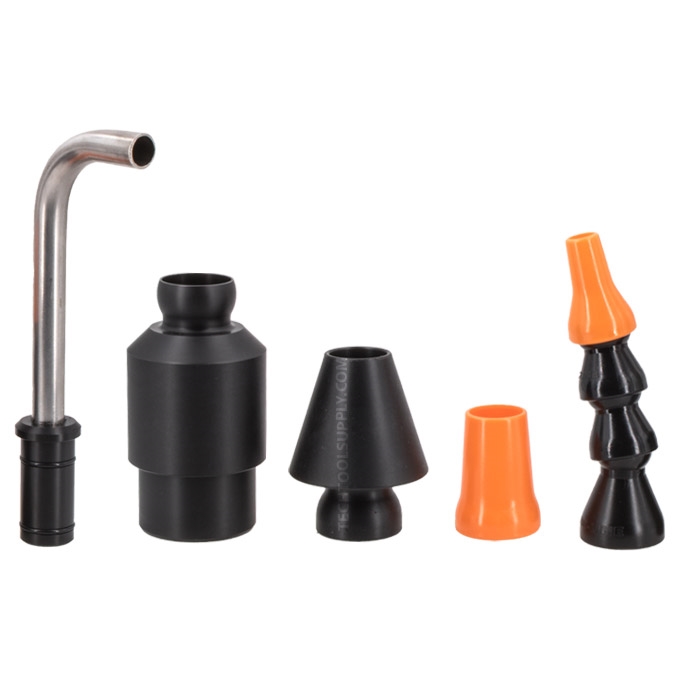

  • 1 - Component set A: 2 joints, 3/4" reducer 19/12 mm, plus nozzle 9.5 mm int. dia.
  • 1 - Component set B: 3 joints, 3/4", nozzle 16 mm int. dia. plus nozzle 19 mm int. dia.
  • 1 - Special black nozzle for 25-50 mm internal diameters
  • 1 - Special 90° angle nozzle, 12 mm ext. dia.
  • 3 each - Round beads: 11 mm, 13 mm, and 16 mm dia.
  • 1 - Operating manual

Blowing distance depends on pipe type (smooth or corrugated interior), the number of turns in the run, and pipe dimension.

EZ-50 Pull Line Blower Operation Manual
