New!  GMP Storm Fiber Gun Handheld Micro Cable Blowing Machine

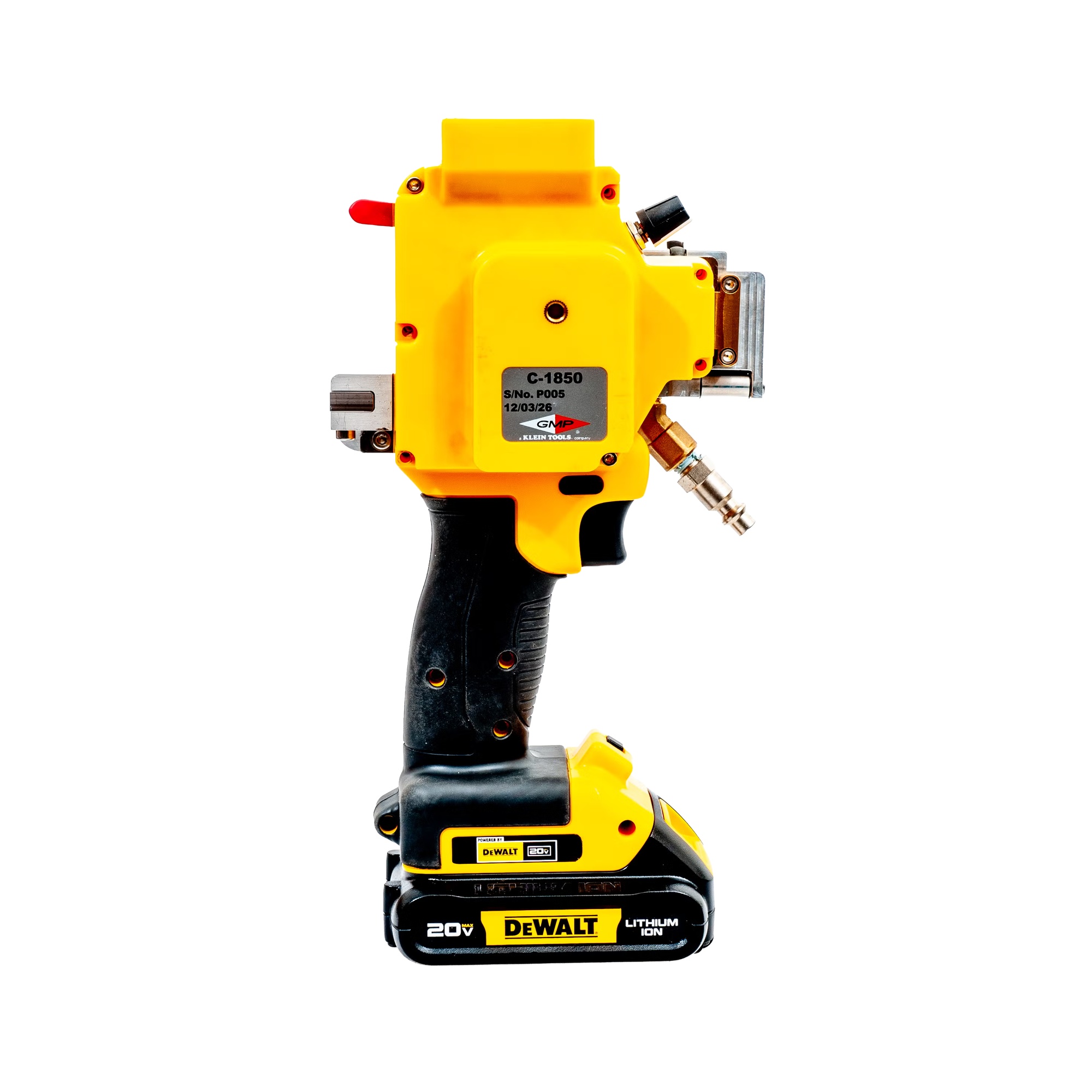

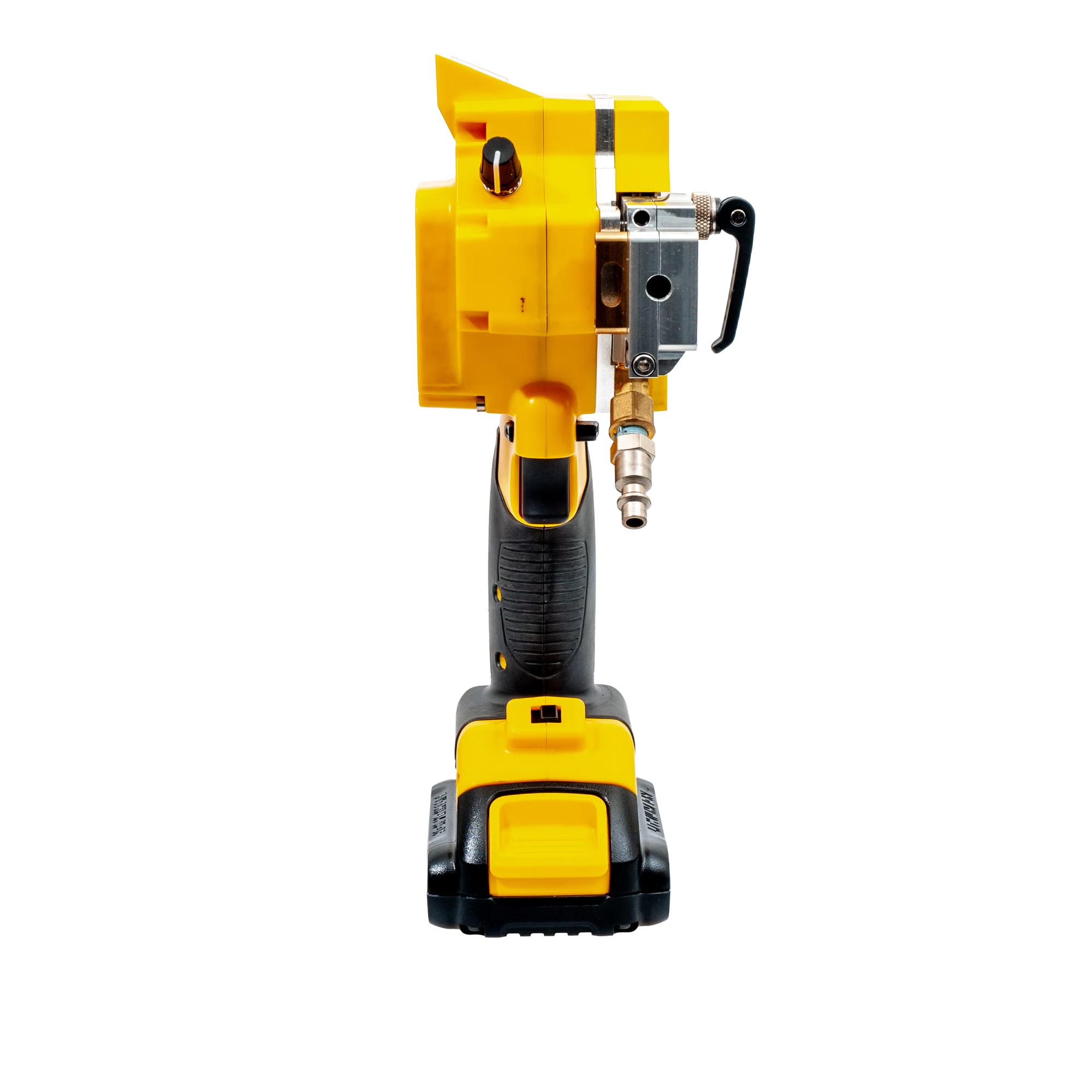

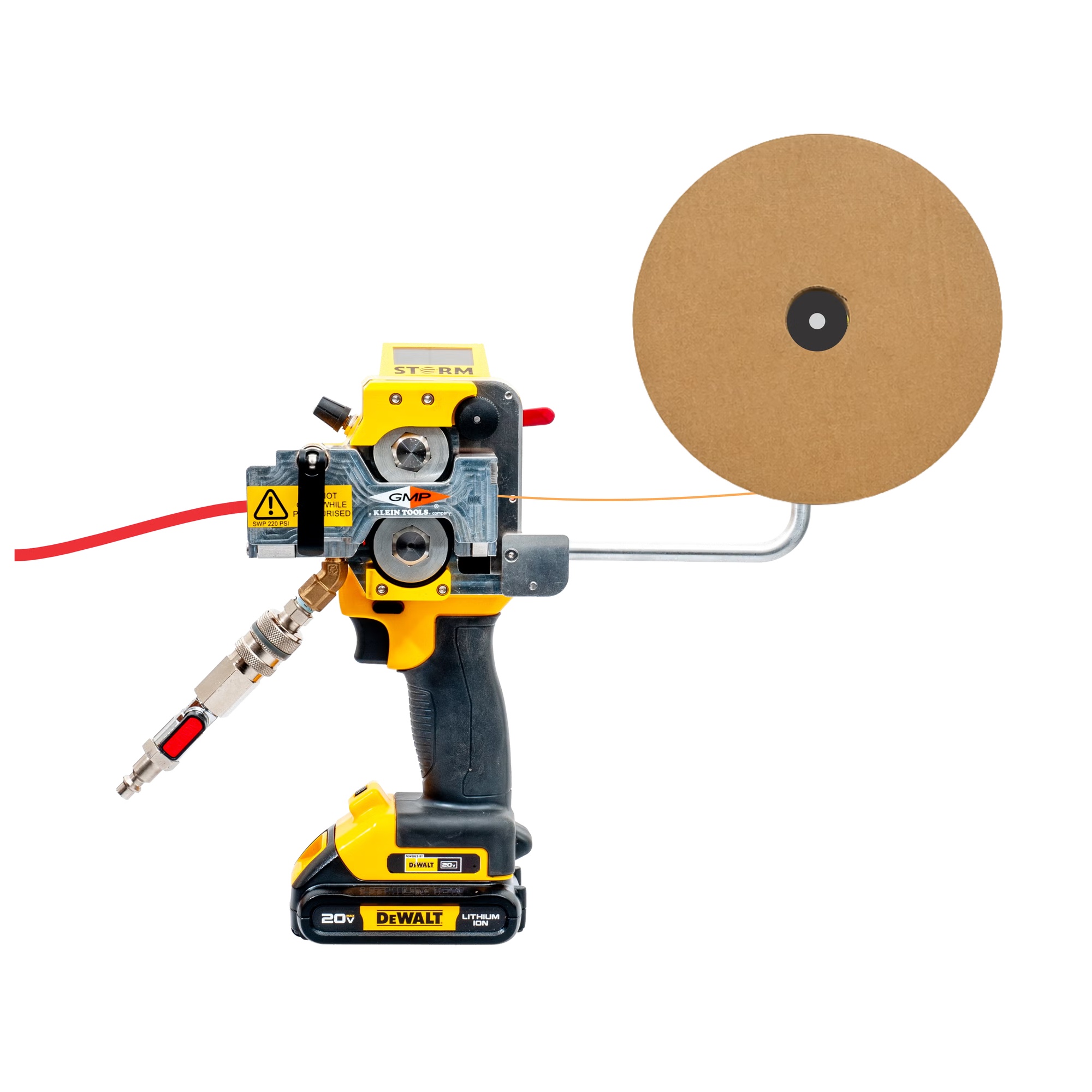

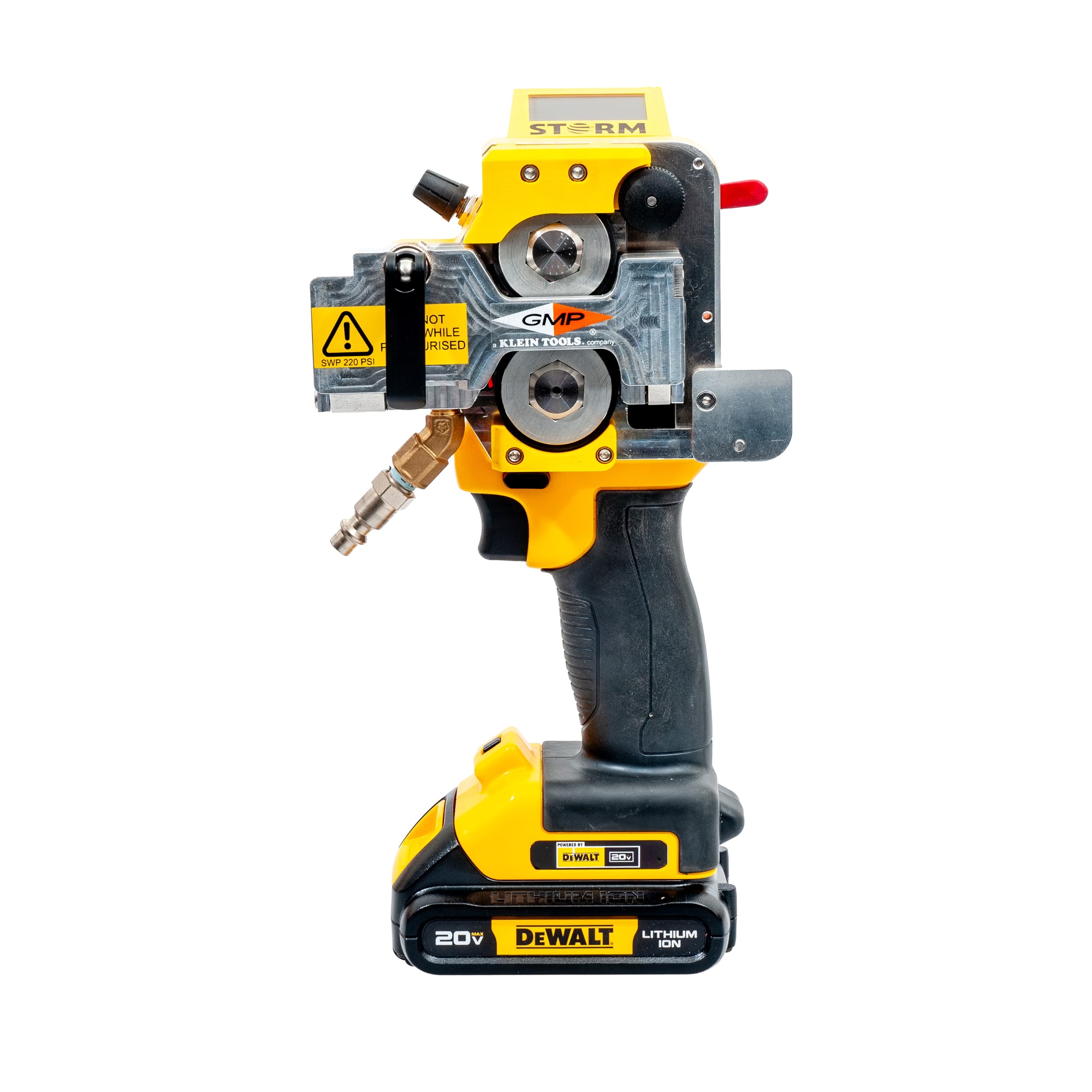

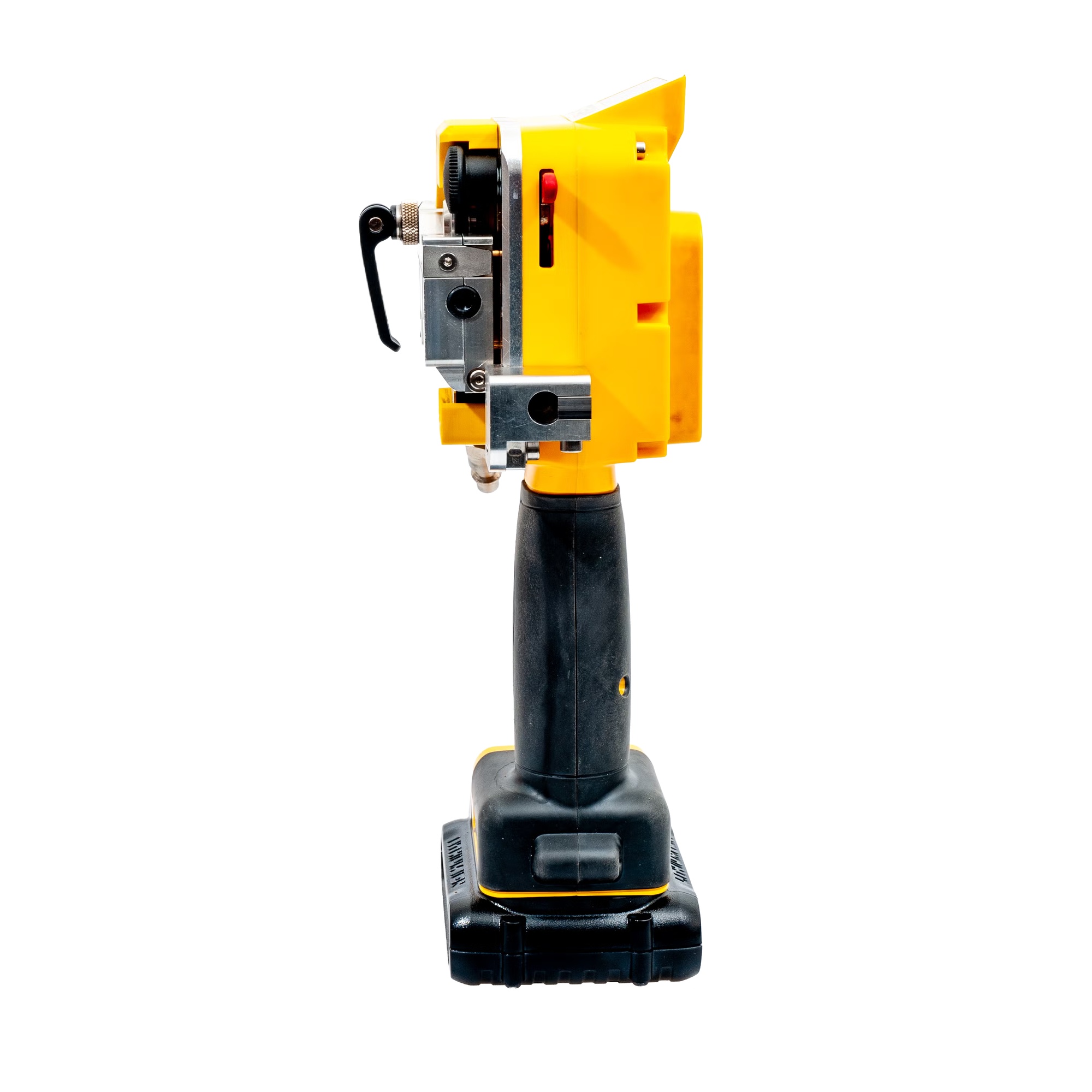

GMP Storm Fiber Gun Handheld Micro Cable Blowing Machine


Alternative Views:


TTS PRICE: $5,000.00

STATUS: ON ORDER


Availability:
SHIP ESTIMATE 7-9 DAYS

PRODUCT CODE: GMP-91000
QUANTITY:

PRODUCT DESCRIPTION


Handheld, DEWALT-powered fiber blowing for EPFU and micro cable in 5-8 mm microduct.
The GMP Storm Fiber Gun blows 0.8-3 mm EPFU and micro/nano cable at up to 328 ft/min (100 m/min) with up to 6.7 lbf (30 N) pushing force. Built-in pushing-force and speed limiters plus cruise control keep every run consistent, a 1.5in display shows the run in real time, and the whole tool weighs 4 lb with battery - it ships in a rugged transport case for FTTX jobsites.

Base unit - order seals and guides for your cable.
The 91000 is the complete Storm unit with two DEWALT 20V 2Ah batteries and charger; duct seals, cable seals and infeed guides are sold separately and are sized to the cable diameter (GMP 91003, 91004-xx, 91005-xx).

Features:
  • DEWALT 20V cordless operation - two 2Ah batteries and charger supplied
  • For EPFU and micro cables 0.8-3 mm, smooth damage-free installation
  • Fits 5, 7 and 8 mm microduct with a single-size duct clamp - no adapters
  • Blowing speed up to 328 ft/min (100 m/min); pushing force up to 6.7 lbf (30 N)
  • Pushing-force limiter, speed limiter and cruise control
  • 1.5in display with large, easy-to-read text

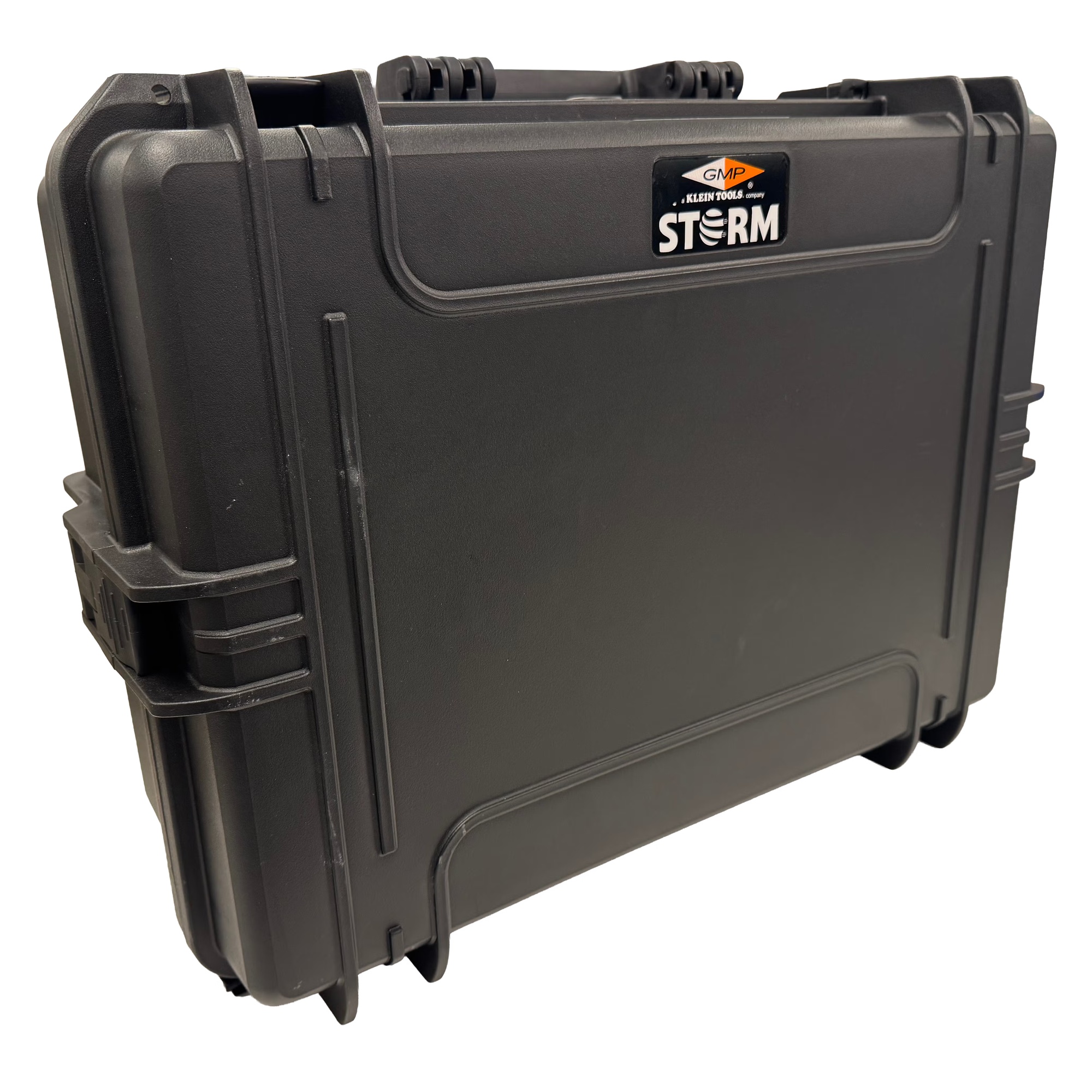

  • Lightweight handheld design with rugged transport case

Specifications:
  • Model: GMP 91000 Storm
  • Fiber Compatibility: 0.8 to 3 mm (.031 to .118in)
  • Compatible Ducts: 5 mm, 7 mm, 8 mm
  • Blowing Speed: Up to 328 ft/min (100 m/min)
  • Pushing Force: Up to 6.7 lbf (30 N)
  • Automation: Cruise-controlled speed
  • Air Supply: 220 psi (15 bar) max working pressure, with suitable air conditioning (drying)
  • Power: DEWALT 20V - 2x 2Ah battery packs and charger supplied
  • Control: Trigger speed control; max speed and max torque limits settable
  • Machine Size: 13 x 4.3 x 11.8in with cable reel holder
  • Case Size: 8.1 x 16.8 x 20.6in
  • Operating Temperature: 32 to 122°F (0 to 50°C)
  • Storage Temperature: 14 to 158°F (-10 to 70°C)
  • Seals & Guides: Sold separately
  • Weight: 4 lb (1.8 kg) with battery
