Cable Prep SCT-715QR Strip/Core/Jacket Strip for CommScope QR

Home > Categories > Cable Prep & Termination > Coring Tools > 715 Coring Tools >

Strip/Core/Jacket Strip for CommScope QR - 715

TTS PRICE: $173.99

STATUS:

IN STOCK

Availability:

IN STOCK & READY TO SHIP

PRODUCT CODE: CPR-SCT-715QR

QUANTITY:

PRODUCT DESCRIPTION

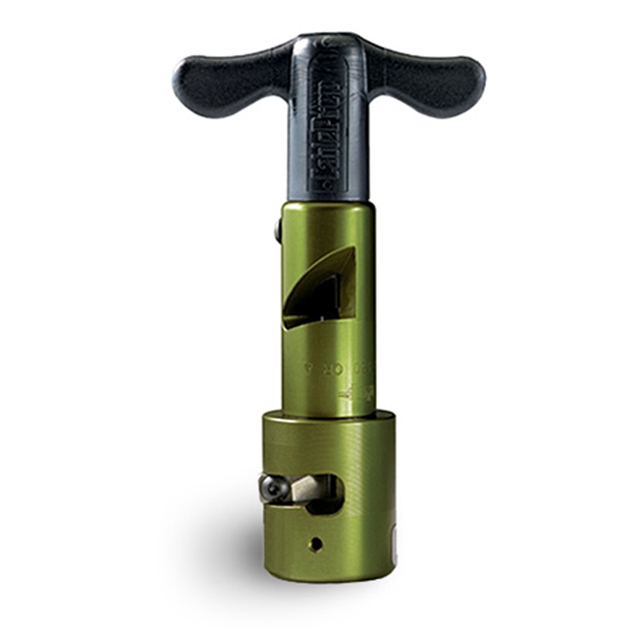

Cable Prep SCT-715QR Strip & Core Tool - CommScope 715 QR, Integrated Jacket Stripper, Standard Handle

The SCT-715QR stripping/coring tool from Cable Prep strips back and bevels the outer conductor, cores the dielectric, and strips back the outer jacket on .715" CommScope Quantum Reach (QR) cables.

Because the jacket on QR cable must be stripped after the coring operation, each SCT-QR stripping/coring tool (labeled SCT-QR-A) comes with a special jacket stripping tool (labeled SCT-QR-B). The two pieces are threaded, so they can be assembled and stored as one unit, which protects the insides of the parts from damage. The jacket stripper is designed with a patented mandrel pin that supports the soft aluminum outer conductor and keeps it from being damaged during the jacket stripping operation.

Features:

Three functions in one operation: strips back and bevels the outer conductor and cores the dielectric in one smooth operation

Non-clogging internal stop, factory-set to the required dimension for the cable

Patented stripping/coring blade - the bevel on the coring edge self-aligns on the center conductor, so the tool cores even out-of-round cable

Blade made of tool steel heat treated to full hardness; beveling the outer conductor eliminates O-ring damage and minimizes water migration

Standard ergonomic handle removes for operation with a 3/8" variable-speed drill

Integrated jacket stripper - no separate jacket stripper to order

Black anodized aluminum construction

Includes:

1 x SCT-QR-A stripping/coring tool with standard handle

1 x SCT-QR-B jacket stripping tool (threads onto the corer)

Specifications:

Cable: CommScope 715 QR (.715" CommScope Quantum Reach)

Core Depth: 1 1/4" (1.250")

Center Conductor Stop Length: 1" (1.000")

Jacket Strip Back: 1/2" (0.500")

Handle: Standard ergonomic handle (removable)

Drill Operation: 3/8" variable-speed drill (handle removed)

Body: Black anodized aluminum

Weight: 23 oz (653.2 g)

Model: SCT-715QR

Available Sizes (SCT-QR / RSCT-QR Tools):

Part #	Cable Prep #	Cable	Handle	Core Depth	Conductor Stop	Jacket Strip Back	Weight	Blade Kit
CPR-SCT-7MMQR	SCT-7MMQR	CommScope .320 (7 mm) QR	Standard	1.250"	1.000"	0.500"	15.4 oz (435.4 g)	SC-7MMQR
CPR-RSCT-7MMQR	RSCT-7MMQR	CommScope .320 (7 mm) QR	Ratchet T-Handle	1.250"	1.000"	0.500"	23.7 oz (671.3 g)	SC-7MMQR
CPR-SCT-F320QR	SCT-F320QR	CommScope 320 (7 mm) QR (Corning Gilbert) GAF-360-320-QR Crimp Style, Thomas & Betts SNS320QR, or PPC EX320QR connectors	Standard	0.5625"	0.4375"	0.375"	15.4 oz (435.4 g)	SC-F320QR
CPR-RSCT-F320QR	RSCT-F320QR	CommScope 320 (7 mm) QR (Corning Gilbert) GAF-360-320-QR Crimp Style, Thomas & Betts SNS320QR, or PPC EX320QR connectors	Ratchet T-Handle	0.5625"	0.4375"	0.375"		SC-F320QR
CPR-SCT-500QR	SCT-500QR	CommScope 500 QR	Standard	1.250"	1.000"	0.500"	22.1 oz (626 g)	SC-500QR
CPR-RSCT-500QR	RSCT-500QR	CommScope 500 QR	Ratchet T-Handle	1.250"	1.000"	0.500"	30.4 oz (861.8 g)	SC-500QR
CPR-SCT-540QR	SCT-540QR	CommScope 540 QR	Standard	1.250"	1.000"	0.500"	22.1 oz (626 g)	SC-540QR
CPR-RSCT-540QR	RSCT-540QR	CommScope 540 QR	Ratchet T-Handle	1.250"	1.000"	0.500"	30.4 oz (861.8 g)	SC-540QR
CPR-SCT-715QR	SCT-715QR (this item)	CommScope 715 QR	Standard	1.250"	1.000"	0.500"	23 oz (653.2 g)	SC-715QR

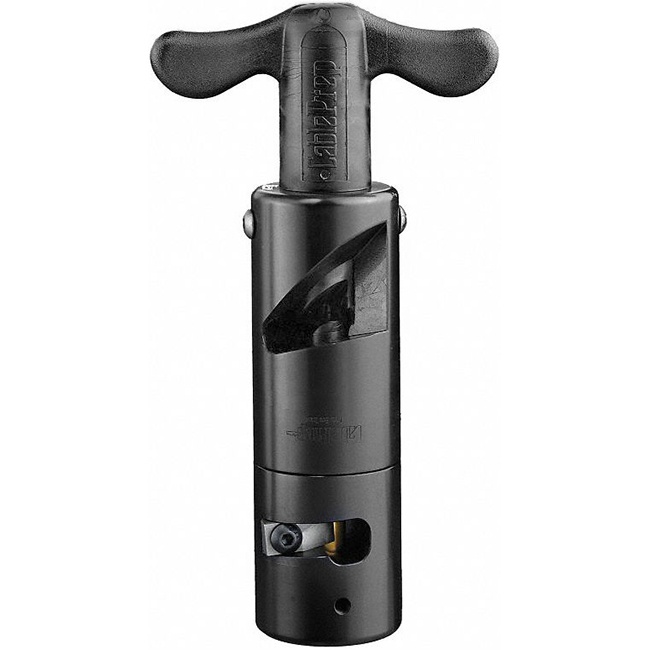

CPR-RSCT-715QR	RSCT-715QR	CommScope 715 QR	Ratchet T-Handle	1.250"	1.000"	0.500"	31.4 oz (889 g)	SC-715QR
CPR-SCT-860QR	SCT-860QR	CommScope 860 QR	Standard	1.250"	1.0625"	0.625"	23 oz (653.2 g)	SC-860QR
CPR-RSCT-860QR	RSCT-860QR	CommScope 860 QR	Ratchet T-Handle	1.250"	1.0625"	0.625"	31.4 oz (889 g)	SC-860QR
CPR-SCT-1125QR	SCT-1125QR	CommScope 1125 QR	Standard	1.250"	1.250"	0.625"	31.4 oz (889 g)	SC-1125QR
CPR-RSCT-1125QR	RSCT-1125QR	CommScope 1125 QR	Ratchet T-Handle	1.250"	1.250"	0.625"	39.7 oz (1124.9 g)	SC-1125QR

Replacement Parts:

Part #	Cable Prep #	Description
-	SC-715QR	Replacement blade kit - coring-tool blade, jacket-stripping blade, screws, spring washer and hex key

SCT-QR Stripping/Coring Tools Brochure
