10Gig RJ45 Termination Kit - 105pc

10Gig RJ45 Termination Kit - 105pc

Alternative Views:

TTS PRICE: $218.48
Sale Price: $208.20


Normally Ships Same Day



Streaming media demands robust, dependable networks, including 10-Gig Cat6A shielded cable, to provide the necessary expanded bandwidth. However, these larger, shielded cables require special connectors and tools.

Platinum's 10-Gig shielded connector and Tele-TitanXg crimp tool are specifically designed to terminate Cat6A cables. A pairing that assures you will achieve 10-Gig performance, a true 10Gig Termination System.

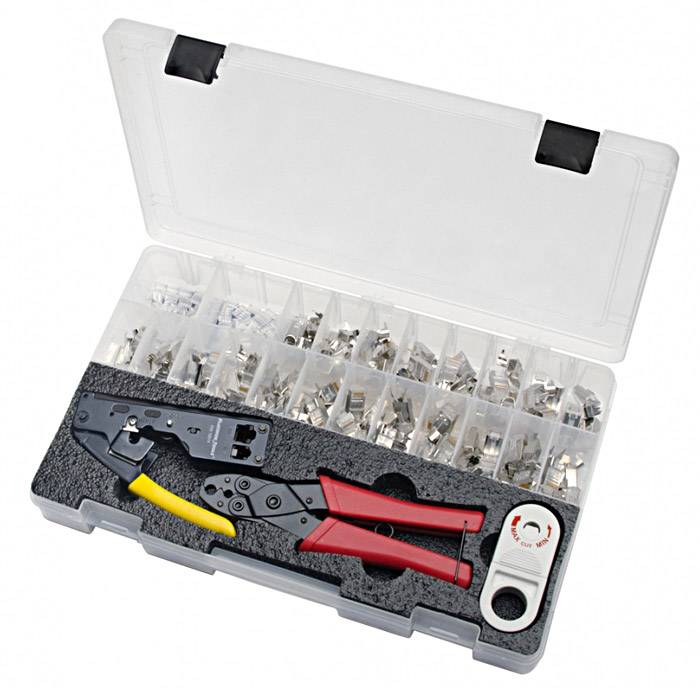

Kit Includes:
  • Tele-TitanXg Cat6A/10-Gig Crimp Tool - PLA-12515
  • CT-360 External Ground Crimp Tool
  • Cyclops 2 Cable Jacket Stripper - 15010c
  • 100 RJ45 Cat6A/10-Gig Shielded Connectors - PLA-106190

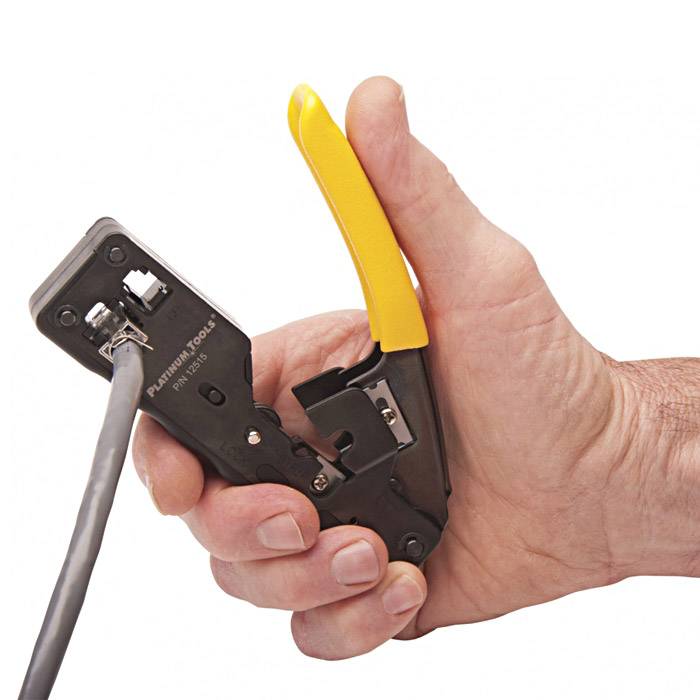

  • Tele-TitanXg Crimp Tool: Compact, balanced and fits in the hand or pocket easily. Specifically built for [the company's] 10-Gig connector, it terminates all pins to industry specified crimp heights with nominal hand force. The embedded cable strippers for round and flat cables easily adjust and control depth of the blade when stripping Cat 5e/6 cables. Includes a built-in cable cutter.

  • Minimal hand force
  • Straight action crimp
  • Compact & rugged
  • Terminates to industry specified crimp heights
  • Stays securely closed with gun-style lock
  • Built-in cable stripper for round wire and flat satin
  • Easily control the blade depth when stripping
  • Built-in cable cutter

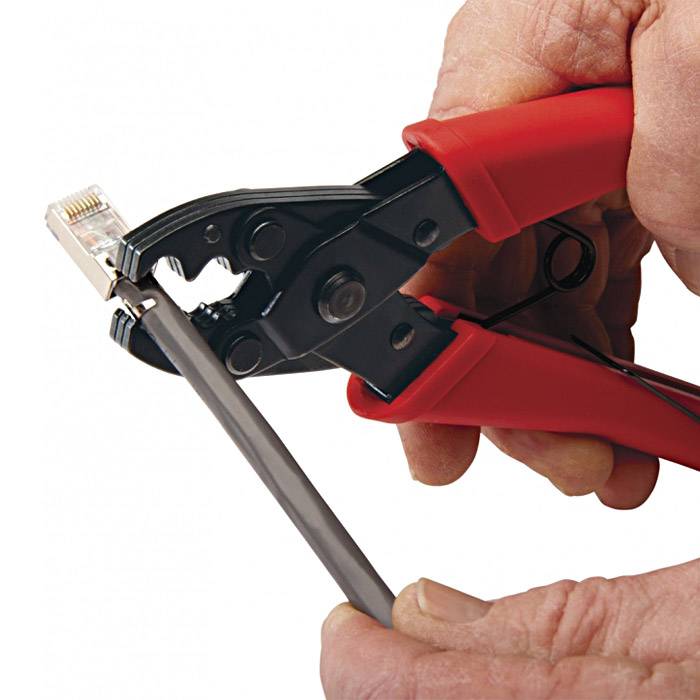

  • CT-360 External Ground Crimp Tool: The lightweight, easy-to-use CT-360 performs 360 crimps on the external ground tab of shielded RJ45 connectors for Cat 5e, Cat 6E, Cat 7, Cat 5/6, and Cat 6A cables for a concentric termination with full control.

  • 360 ̊ crimp on the external ground tab of shielded RJ45 connectors
  • Perform concentric termination with full control to prevent over or under crimping
  • Dual cavity covers wide range of cable ODs ranging from 0.245" to 0.335" (6.2mm - 8.5mm)
  • Spring-loaded, non-ratcheted design
  • Steel frame, black oxide finish, molded handles

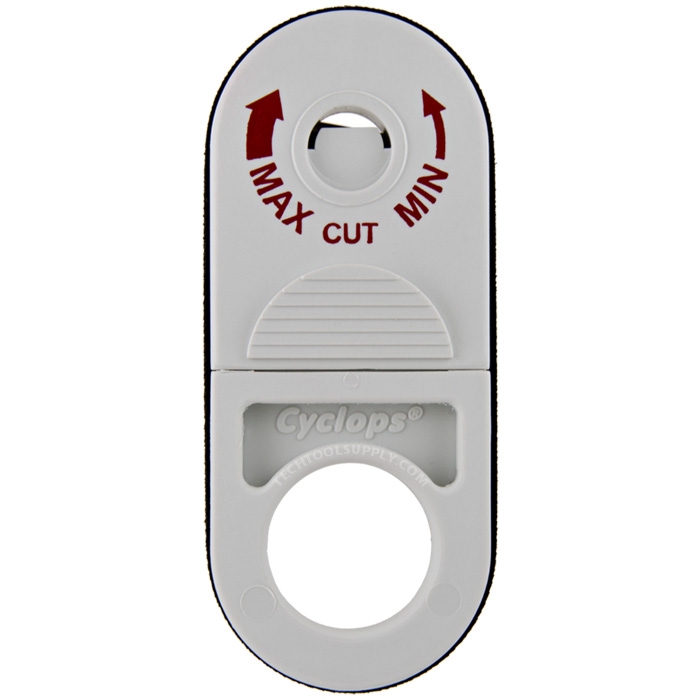

  • Cyclops 2 Cable Jacket Stripper: Removes the cable jackets from many types of twisted pair, multicore, and fiber optic cables. It self adjusts to automatically cut PVC, plenum, and others without damaging the braids, foils, or conductors. One piece design, ready-to-use right out of the package.

  • Self-adjusts to automatically score PVC and Plenum
  • Ready-to-use out of the kit
  • Works with shielded/unshielded twisted pair and fiber optic cables
  • Accepts cable ODs 0.10" to 0.43" (2.5mm - 11mm)

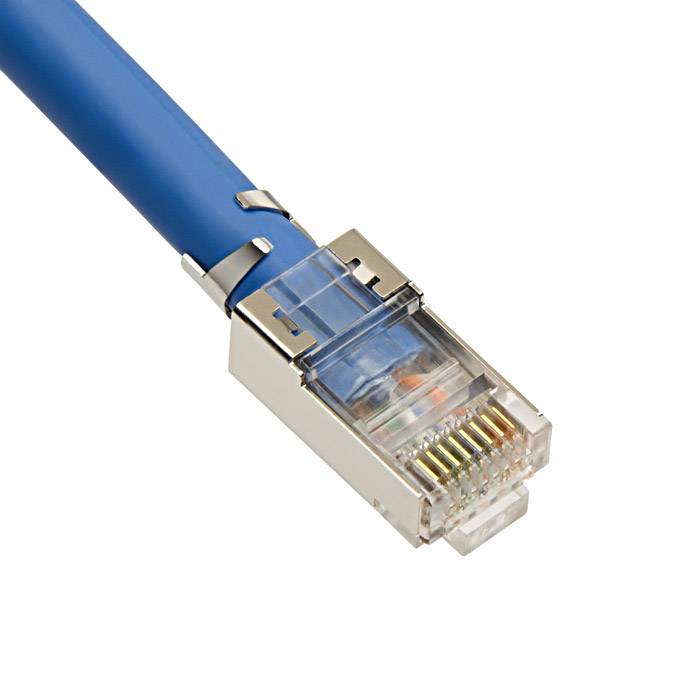

  • 100 Piece RJ45 Cat6A/10-Gig Shielded Connectors: For maximum performance, connector choice is critical. These connectors are specifically designed for the Tele-TitanXg Crimp Tool.

  • Max cable OD: 8.5mm/0.335in.
  • Max conductor OD: 1.35mm/0.053in.
  • Exceeds 10-Gig performance standard
  • UL and RoHS compliant
