Arlington's MB5751 gives you a smooth, flat mounting surface on 5/8" lap siding for A/C disconnects, cable and fiber demarcs, ground blocks, cameras, and other exterior equipment. The one-piece, non-metallic base installs after the siding is up - position it with a flat-head screw, mount your device through the block into the sheathing, and caulk the top and sides.
A drain hole at the bottom edge keeps water and dirt from collecting behind the block, and the textured UV-rated surface takes paint so it blends into the home's exterior. Mounting blocks like the MB5751 also help installations meet NEC 2020 code compliance for A/C disconnects.
Key Features:
- One-piece, non-metallic base installs easily after the siding is up
- Helps meet NEC 2020 code compliance for A/C disconnects
- Drain hole prevents water and dirt from collecting on the lower edge
- Textured, paintable surface blends with the home's exterior
- UV-rated, extra-duty plastic for long outdoor service life
- Made in the USA

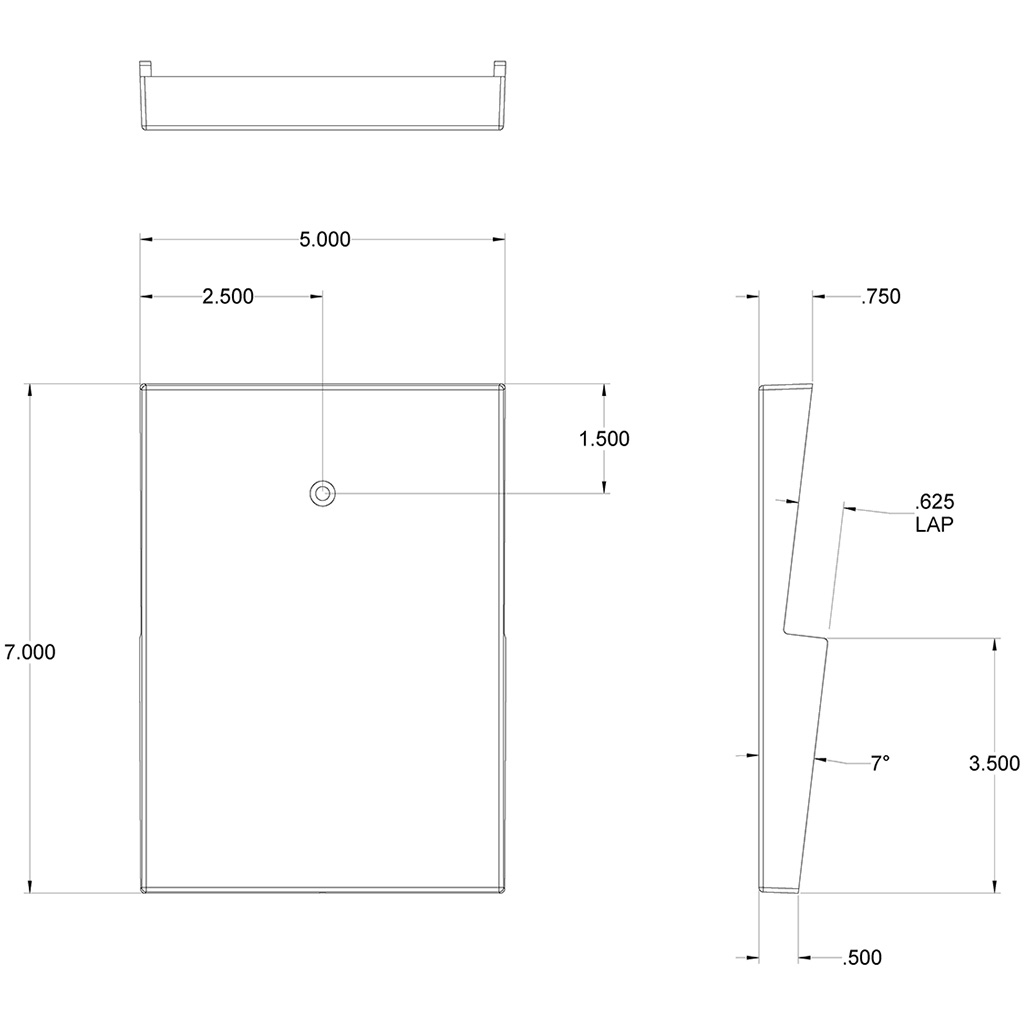

Specifications:
- Siding Type: 5/8" Lap Siding
- Height: 7"
- Width: 5"
- Color: White (paintable)
- Material: UV-rated non-metallic plastic

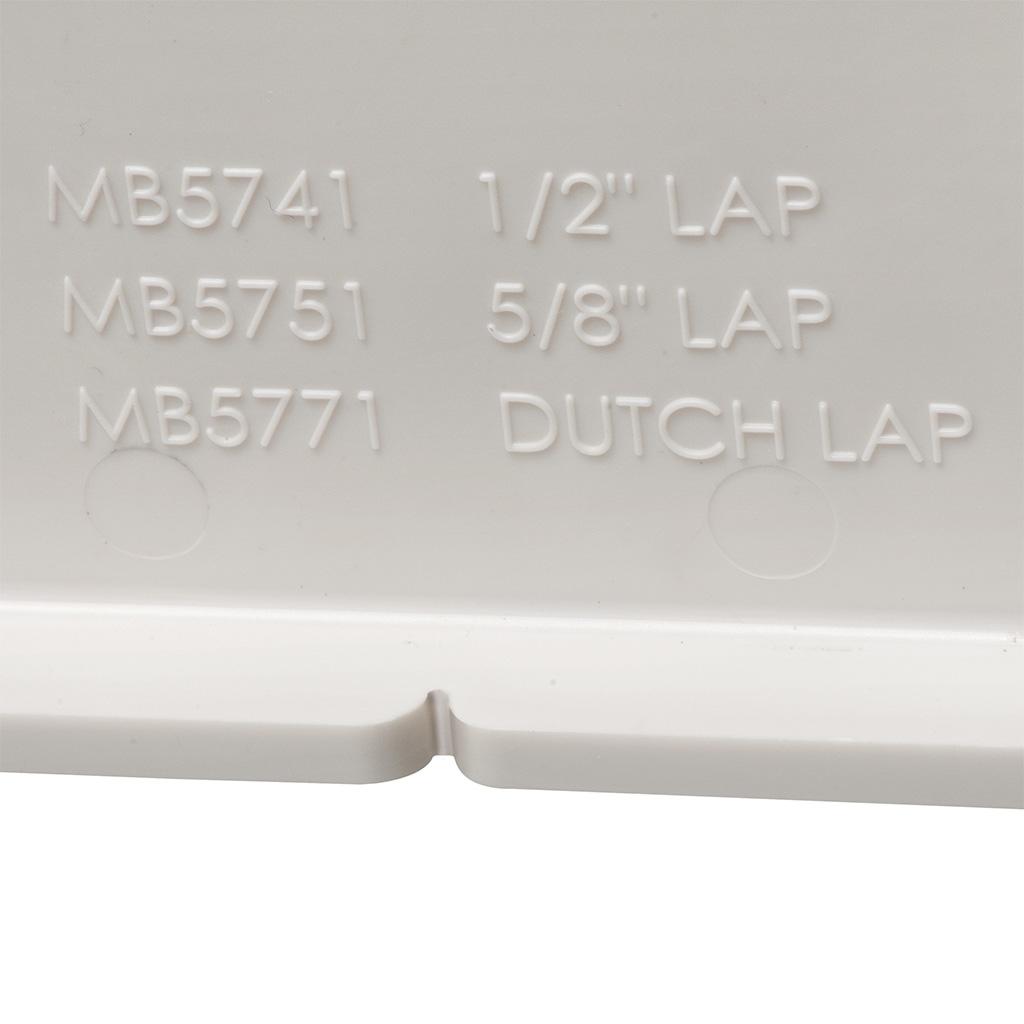

Different siding profile? See the MB5741 for 1/2" lap siding or the MB5771 for Dutch lap siding.
