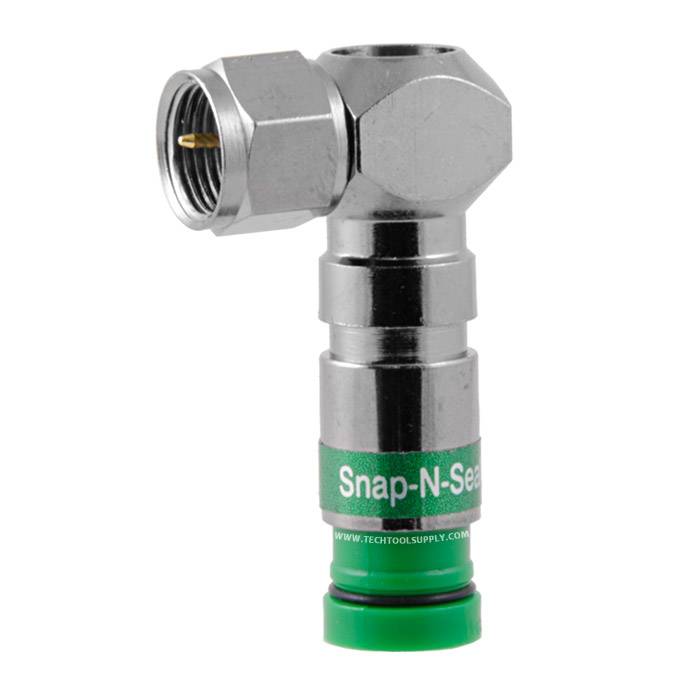

Belden SNS RG6 Right-Angel F Compression Connectors - Bag of 25

Belden SNS RG6 Right-Angel F Compression Connectors - Bag of 25




TTS PRICE: $69.99

STATUS:  IN STOCK


Availability:
Normally Ships Same Day

PRODUCT CODE: BEL-FSNS6URA
QUANTITY:

PRODUCT DESCRIPTION


Installations in Commercial and Residential Audio/Video, Security, and Broadband markets will be a "snap", thanks to the low compression force associated with traditional Snap-N-Seal connectors along with the patented non-blind entry with a floating pin design from F-Conn.

A patented 360 floating-pin basket is incorporated into the design of the ProSNS RG6. By positioning the pin basket at the back end of the connector, the insertion of the cable center conductor is easier and more accurate. Once the pin basket is properly seated inside the connector, it is then compressed around the cable center conductor by an outer plastic sleeve.

Features:
  • A patented internal "O" ring permits nut to spin freely while protecting against water migration
  • Patented guide sleeve (F) eliminate blind entry simplifying and providing consistent cable Insertion
  • Sleeves' sealing "O" ring prevents moisture migration
  • Patented, industry leading, removable sleeve reduces compression force

  • Specifications:
  • Quantity: 25 pieces
  • Connector Type: Right Angle F
  • Cable Type: RG6 Standard or Quad
  • Cable Center Conductor Diameter Limits: .0399 - .0418 inch
  • Cable Dielectric Diameter Limits: .180 - .193 inch
  • Cable Outer Jacket Diameter Limits: .265 - .305 inch
  • Cable Insertion Force: 20 lbf
  • Frequency: ≥-30 dB up to 1 GHz typical
  • Impedance: 75Ohm
  • Nut: Nickel/Tin Plated Brass
  • O-Ring: Ethylene Propylene
  • Body: Nickel/Tin Plated Brass
  • Contact: Gold Plated
  • Locking: No
  • Tool Compatibility: CPLCCT-SLMR or CPSNSCT-596 (compression), PSA59/6 (strip)
  • Termination Type: Compression
  • Environmental Space: Indoor/Outdoor
  • EU CE Mark: Yes
  • Suitability Indoor/Outdoor: Both Yes
  • Plenum (Y/N): No
  • Salt Fog: Passes 1000 hours ANSI/SCTE 143 2007
  • RFI Shielding: -85 dB (60% bonded foil)
