New!  Holland RG6 QC Continuity Connectors - Bag of 50

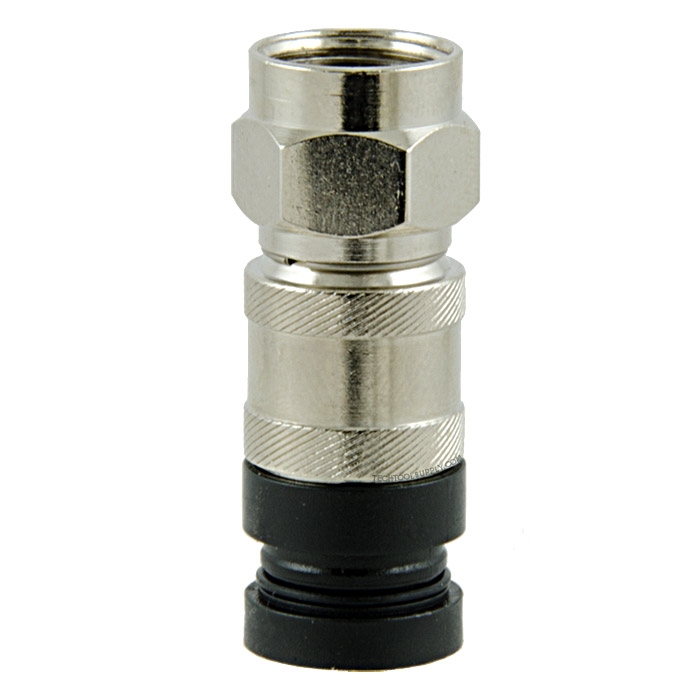

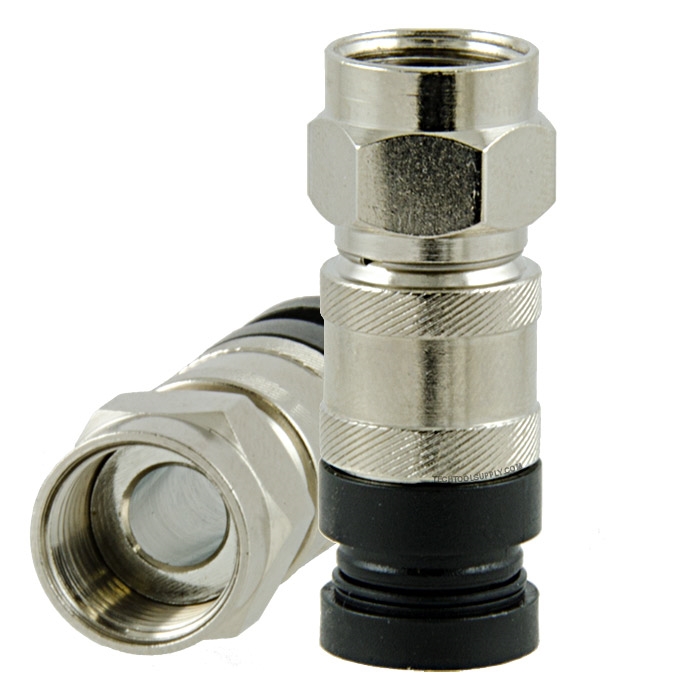

Holland RG6 QC Continuity Connectors - 50 pc


Alternative Views:
TTS PRICE: $21.99

STATUS:  IN STOCK

Free Shipping

Availability:
IN STOCK & READY TO SHIP

PRODUCT CODE: HOL-QC1
QUANTITY:

PRODUCT DESCRIPTION


The QC Series Continuity Compression Connectors from Holland Electronics are ideally suited for both professional and consumer use. An advanced polymer compression system provides a secure 360 degree seal resulting in maximum RF shielding performance and a consistent fit with the cable. The one-piece connector body and nut design allows for unparalleled electrical and mechanical performance.

Features:
  • Designed for Standard and TriShield cables ensuring easy installation and solid performance
  • Advanced polymer compression system provides 360 degree seal
  • Provides shielding of up to -120 dB at CATV frequencies
  • Standard 1/4" - 1/4" cable preparation
  • Works with industry standard preparation and standard compression tools
  • Works with all standard security sleeve and tightening devices
  • Exceeds SCTE and Telcordia specifications

    • Specifications:
  • Quantity: 50
  • Size: RG6
  • Frequency Range: DC - 3 GHz
  • Shielding Effectiveness: > 100 dB (to 300 MHz) Spec: Telcordia GR-1503 3.5.5
  • Shielding Effectiveness: > 90 dB (to 1 GHz)
  • Insertion Loss (350 GHz): < .1 dB Max
  • Insertion Loss (700 GHz): < .2 dB Max
  • Insertion Loss (1 GHz): < .3 dB Max
  • Return Loss (1GHz): > 20dB
    •
