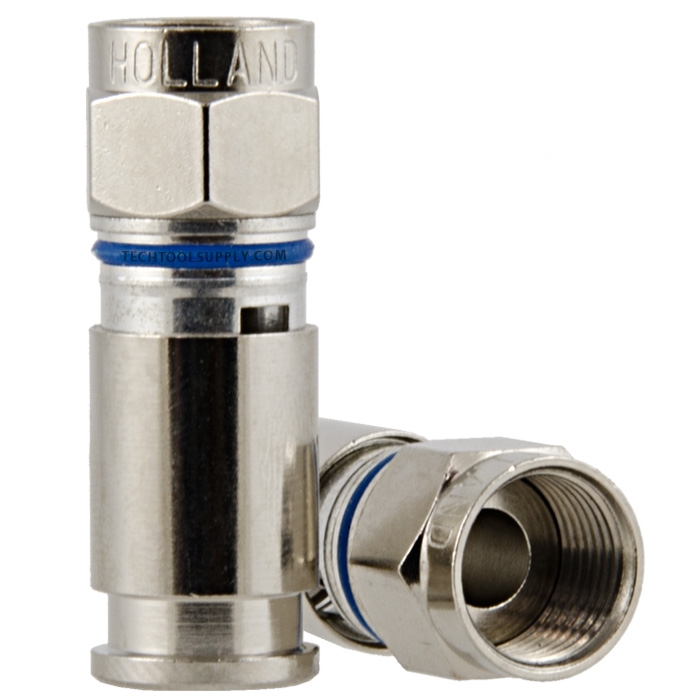

Holland RG6 Compression F Connectors w/O-Ring - Bag of 50

Holland RG6 Compression F Connectors w/O-Ring




TTS PRICE: $22.99

STATUS:  IN STOCK


Availability:
Normally Ships Same Day

PRODUCT CODE: SLCU-6O_50
QUANTITY:

PRODUCT DESCRIPTION


This SLC connector is perfect for outdoor use! It has 3 internal o-rings at the bottom of the connectors treads to protect against moisture on outdoor installations!

Holland's signature Superlok series compression connector utilize two independent compression points to seal and hold the coaxial cable to the connector. These connectors are constructed of 100% metal with out any plastic parts to degrade with sun or acidic vapors. A channel on the body of the connector is designed for Holland's optional color rings; Great for installers trying to keep a large bundle of cables organized.

Features:
  • All-Metal Construction
  • Triple O-Ring Moisture Sealing (F Type)
  • Dual Compression Points
  • Patented Cable Viewing Window
  • Patented Internal-Grip Ring
  • Color-Coded Application Bands (SRR)

  • Specifications:
  • Quantity: 50 Connectors
  • Cable Type: Triple O-Ring RG6
  • Frequency: DC - 3 GHz
  • Insertion Loss (Max): .1 dB
  • Return Loss (Min): 30 dB
  • Material: Brass
  • Cable Strip Length: 1/4 x 1/4

  • Compliance(s):
  • SCTE 60 2004: Moisture Migration Pass
  • SCTE 48-1 2007: Shielding >90 dB @ 1002 MHz
  • SCTE IPS-TP-406: Salt Spray Pass
  • SCTE IPS-TP-400: Tightening Torque Pass
  • SCTE 73 2007: Insertion Force < 20 lbs.
  • SCTE 04 2007: Return Loss > 30 dB @ 1002 MHz
