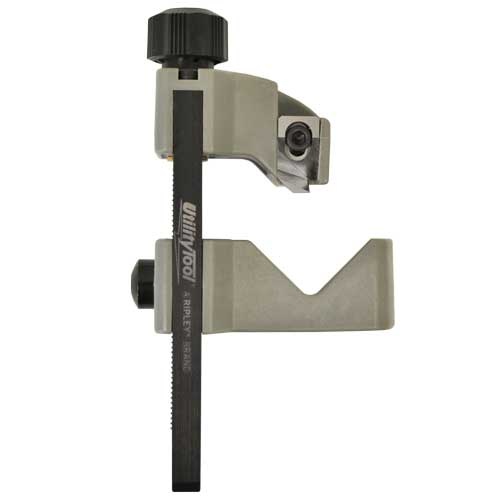

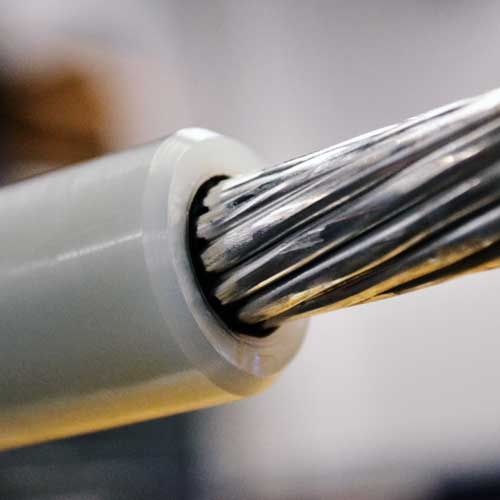

The UtilityTool US10 puts a clean 45 degree chamfer on XLPE and EPR insulation on 15-35 kV URD cable.
A size-adjustment clamp locks onto insulation from 0.5in to 2.36in (12.7-60 mm), and the low-friction thermoplastic V-jaw and PTFE-coated aluminum frame give a stable platform in any space.

The chamfer depth comes factory-set at 0.075in and adjusts from 0 to 0.150in.
The blade is recessed for safety and replaceable. For a 30 degree bevel, see the US10-7000.

• 45 degree bevel on XLPE and EPR insulation, 15-35 kV
• Fits 0.5-2.36in (12.7-60 mm) cable
• Size-adjustment clamp locks onto the insulation
• Chamfer depth factory-set 0.075in, adjustable 0-0.150in

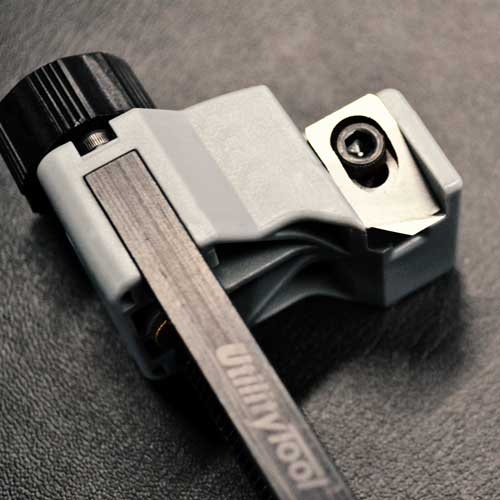

• Recessed blade for safety
• Replaceable ground tool steel blade (US10-7501)

• Model: Ripley UtilityTool US10-7001
• Bevel: 45 degree
• O.D. Over Insulation: 0.5-2.36in (12.7-60 mm)
• Voltage: 15-35 kV
• Insulation: XLPE, EPR
• Material: Impact-resistant polymer
• Replacement Blade: US10-7501
