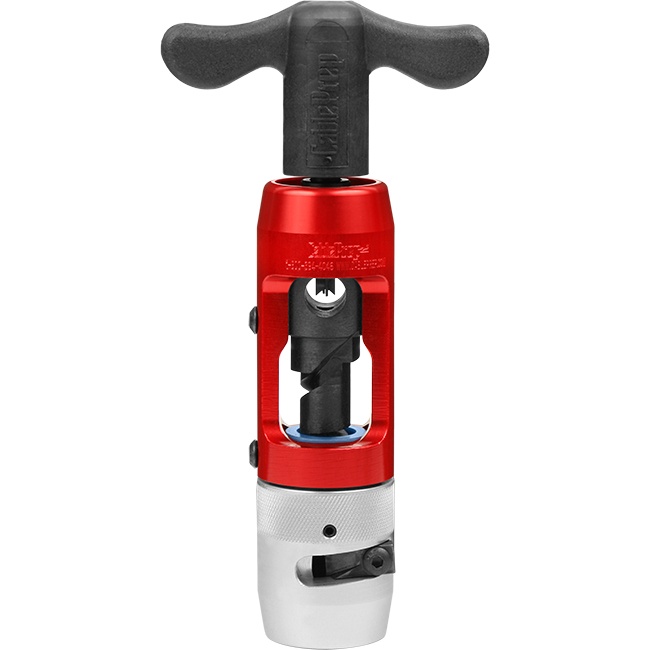

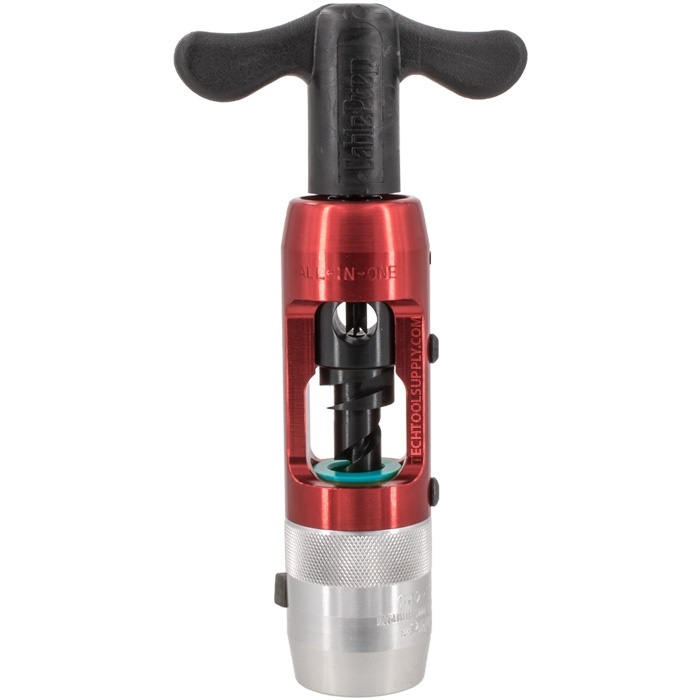

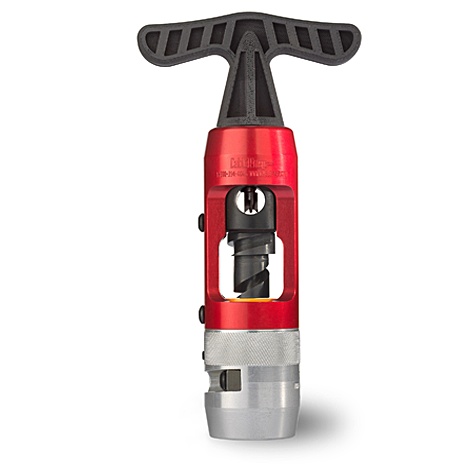

Cable Prep RAIO-500 All-In-One Strip/Core/Bevel Tool - .500 PIII & T10, Ratchet T-Handle, Yellow Sleeve
Six functions in one operation on .500 hardline - turned with a ratchet T-handle. The Cable Prep RAIO-500 is the AIO All-In-One stripping/coring tool fitted with Cable Prep's RTH ratchet T-handle. In one operation it strips back the jacket, cores the dielectric, strips back and bevels the outer conductor, and measures and bevels the center conductor - replacing a separate JCS jacket stripper and SCT stripping/coring tool.
Built for the truck, not the bench. A cone-shaped cable entry reforms flattened cable without damaging the soft aluminum outer conductor, and the open body lets debris fall free. The two halves thread apart into a standard stripping tool and coring tool for tight spaces or short cable ends, and the RTH handle removes for 3/8" variable-speed drill operation. The yellow guide sleeve marks the .500 tool and slides off for flooded cable.
Features:
Six functions in one operation: jacket strip, core, outer conductor strip and bevel, center conductor measure and bevel
One-piece coring bit combines coring and stripping blades - perfectly aligned, heat-treated tool-steel edges hold a sharp edge
Adjustable center conductor stop (0.875" to 1.625") bevels the conductor as it cuts
Cone-shaped cable entry reforms flattened cable
Open body and blade design lets debris fall free for easy cleaning
Separates into two tools for tight spaces or short cables
Color-coded yellow guide sleeve; for flooded cable it removes and stores in the back of the coring tool body, and the jacket stripper guides the cable
Cable Prep RTH ratchet T-handle; removes for 3/8" variable-speed drill operation and fits any Cable Prep SCT- and AIO-series tool
Specifications:
Type: All-In-One Stripping/Coring Tool with Ratchet T-Handle
Cable: .500 PIII & T10 hardline coax
Guide Sleeve Color: Yellow
Core Depth: 0.875"
Center Conductor Stop: Adjustable 0.875" - 1.625"
Jacket Strip Back: 2.500"
Body: Bronze-colored anodized aluminum
Handle: RTH ratchet T-handle (removable)
Drill Operation: 3/8" variable-speed drill (handle removed)
Weight: 27.52 oz (780.19 g)
Model: RAIO-500
Available Sizes (AIO / RAIO All-In-One Tools):
Replacement Parts:
| Part # | Cable Prep # | Description |
|---|
| - | AIO-500RBKIT | Full blade kit for .500 AIO/RAIO - coring bit, jacket-stripping blade, beveller blade, bolts, set screw, spring washer, ruler, hex keys |
| - | AIO-500RB | Coring bit kit for .500 AIO/RAIO - coring bit, bolts, set screw, hex keys |
| - | JCS-500RB | Stripper kit for .500 AIO/RAIO - jacket-stripping blade, set screw, spring washer, hex key |
| CPR-AIO-500BVL | AIO-500BVL | Beveller kit for .500 AIO/RAIO - beveller blade, set screw, hex key, ruler |
AIO All-In-One Tools Brochure
|
|
|
 |
|
 |
|
