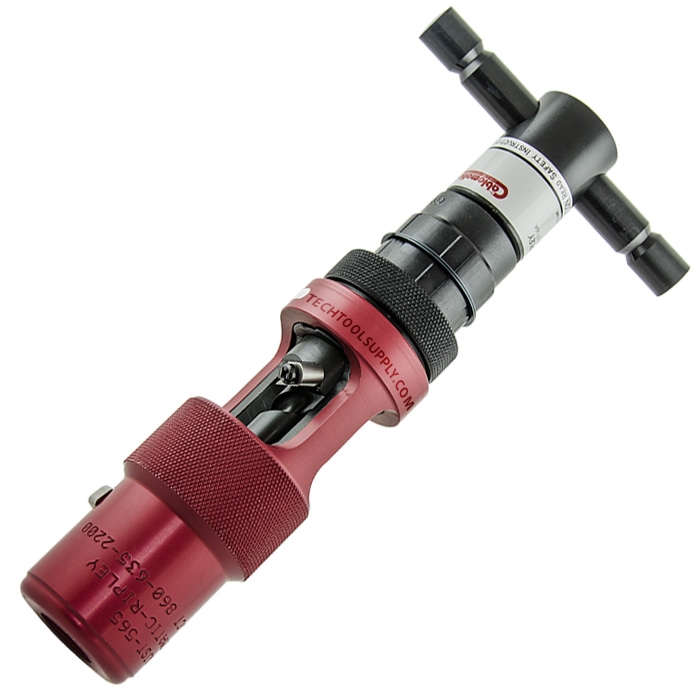

Ripley Cablematic QCST-500T Coring Tool

Ripley Cablematic QCST-500T Coring Tool




TTS PRICE: $195.99

STATUS:  IN STOCK


Availability:
Normally Ships Same Day

PRODUCT CODE: QCST-500T
QUANTITY:

PRODUCT DESCRIPTION

With Ripley's Quick Change Coring and Stripping tool, you can accurately strip the jacket, core out the dielectric, strip and bevel the aluminum sheath, all in one! The QCST-500T conveniently attaches the jacket stripper body (QJST) to the main body of the coring and stripping tool by means of a "quick-change" rotating body ring. Use this trunk tool on CommScope P3 and Times Fiber T10 cables.

The QJST color coded jacket stripping body is removed and used in a 2 step operation when using flooded cables:
STEP 1 - Remove the jacket with the removable QJST.
STEP 2 - Remove flooding compound from cable and use the QCST coring and stripping tool body to complete the preparation.

Features:
  • All-In-One
  • Jacket stripping body (QJST), when used separately to remove the jacket on flooded cable, is uniquely designed to automatically provide 3.50 inch (88.9mm) of jacket removal when rotated to the end of the body
  • Jacket stripper body and coring / stripping tool guide sleeve are all color coded for easy cable identification
  • Pre-set jacket blade assures no scoring or nicking of aluminum sheath
  • Chamfered strip stop is factory installed
  • Rugged, durable, all-metal construction
  • Heat treated sheath cutting blade produces a smooth beveled edge and can be replaced without the expense of replacing the entire coring bit
  • Spiral-fluted, heat treated steel bit
  • Use of CC-100 or CC-200 Center Conductor Cleaner/Scraper removes residual dielectric which remains on the conductor after coring and stripping

  • Specifications:
  • 1" (25.4 mm) stop for 412-750 tools and a 1-1/16" (27 mm) stop for 840-1160 tools
  • Ratchet "T" handle and a separate 3/8 inch (9.5mm) drill adapter
  • Cable Type: 500
  • Body Color: Red
  • Length: 8.1 in.
  • Weight: 1 lb 4 oz.
  • Made in the U.S.A

  • Feature Sheet & Sizing Info
    QCST Instruction Sheet
